AM8-3001LB AM8-3002LB Safety Explosion-proof Proximity Switch
With low-voltage power supply, micro-current output, small volume ancl other advantages, Namur sensors can be applied for special places with requirements of explosion proof.

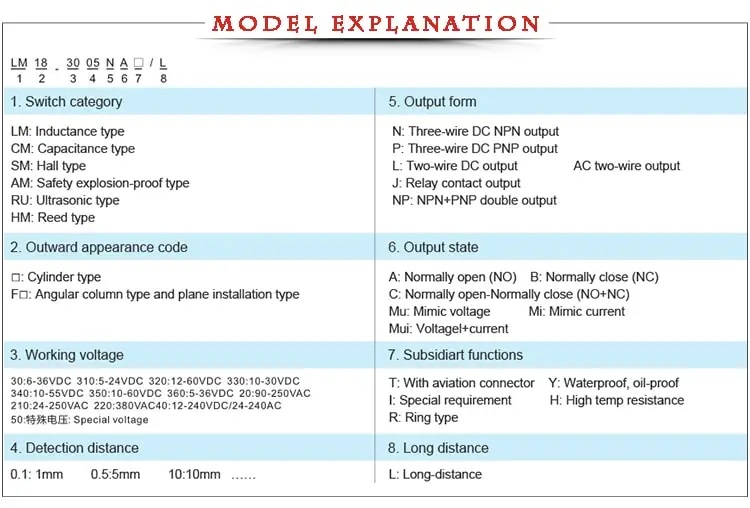

Model explanation of proximity switch
1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;H: High temp resistance; R: Ring type)
Technical Parameters:
| Standard detecting object Q235 steel(mm) | 12X12Xlt | 12X12X1t | 18X18X1t | 30X30X1t | |
|---|---|---|---|---|---|
| Model | Two-wire normally close | AM8-3001LB | AM12-3002LB | AM18-3005LB | AM30-3010LB |
| Two-wire normally close | AM8-3002LB | AM12-3004LB | AM18-3008LB | AM18-3015LB | |
| Specifications | rated Vollage | 8.2V | 8.2V | 8.2V | 8.2V |
| oscillating current/stop oscillating current | ≥2.2mA/≤1mA | ≥2.2mA/≤1mA | ≥2.2mA/≤1mA | ≥2.2mA/≤1mA | |
| load resistance | 1KΩ | 1KΩ | 1KΩ | 1KΩ | |
| switch frequency,flusn/non-flsh | 1.5Hz/1KHz | 1.5Hz/1KHz | 1Hz/700KHz | 300Hz/200KHz | |
| shell material | Nickel-plated brass | Nickel-plated brass | Nickel-plated brass | Nickel-plated brass | |
| protection level | lp67 | lp67 | lp67 | lp67 | |
| working environment temperature | -20℃～70℃ | -20℃～70℃ | -20℃～70℃ | -20℃～70℃ | |
| external wiring diagram | |||||
