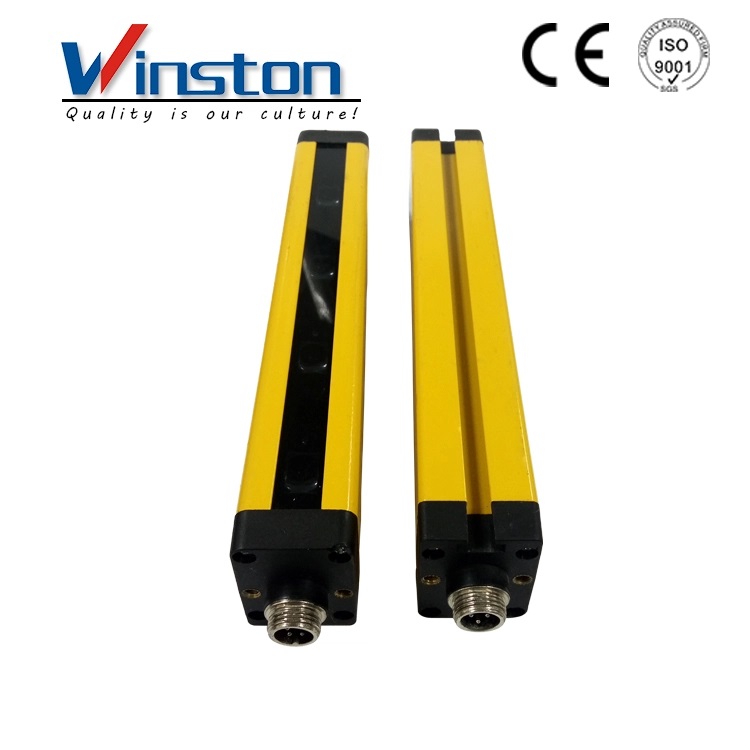

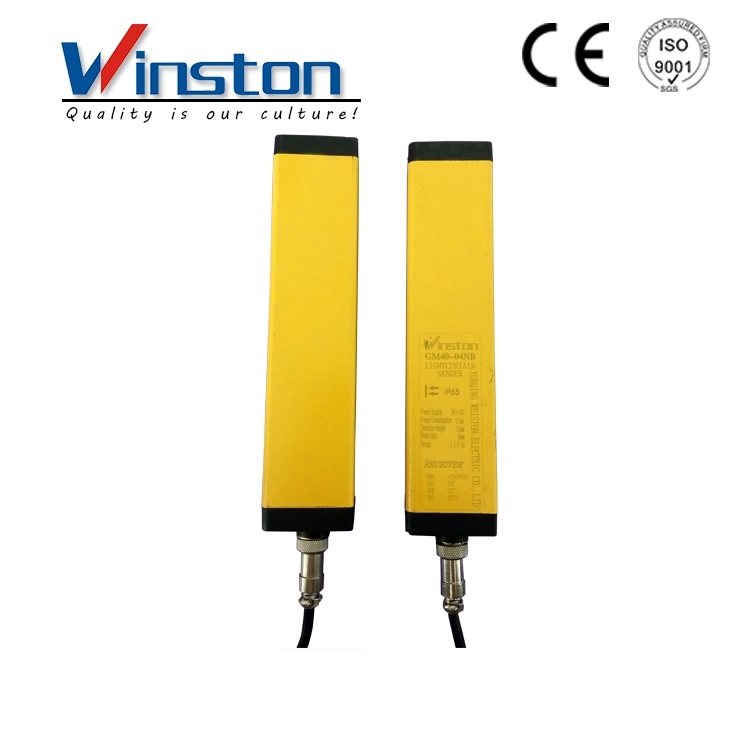

GM40 Area secure sensor
GM40 Area secure sensor
GM40 Area secure sensor
GM40 Area secure sensor

GM40 Area secure sensor

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support
Request a Quote
GM40 Area secure sensor
GM40 Area secure sensor
GM40 Area secure sensor
GM40 Area secure sensor

Technical parameter





Detection way Model Control output  Detection distance Optic axis distance Optic axis number Detection width Min. detectable object

Trough-beam:

4CM spacing

 GM40-4N N:12-24VDC

J:10-48VDC/VAC		 ≤3M 40mm 4 120mm φ50
GM40-4J
GM40-6N 6 200mm
GM40-6J
GM40-8N 8 280mm
GM40-8J
GM40-10N 10 360mm
GM40-10J
GM40-12N 12 440mm
GM40-12J
GM40-16N 16 600mm
GM40-16J
GM40-20N 20 760mm
GM40-20J
GM40-24N 24 920mm
GM40-24J



Mains input voltage 200-220VAC, 50/60Hz,3.5VA
Mains output voltage N:12-24VDC   J:10-48VDC/VAC
Consumption current Under 100mA
Response time Under 20mS
Output form 1.6v collector open circuit NPN type: current 100mA,residual voltage 1.6v
Output state On when all the optic axis is photic
Optic source  Infrared LED
Shell material PMMA Shell: Alalloy, color filter cover :PMMA
Environment-resisting light Incandescent lamp:intensity of illumination of photic surface3000Lx, sunlight: intensity of illumination of photic surface 1000Lx
Ambient Temperature -10ºC--+50ºC
Environment Humidity 35-85RH
