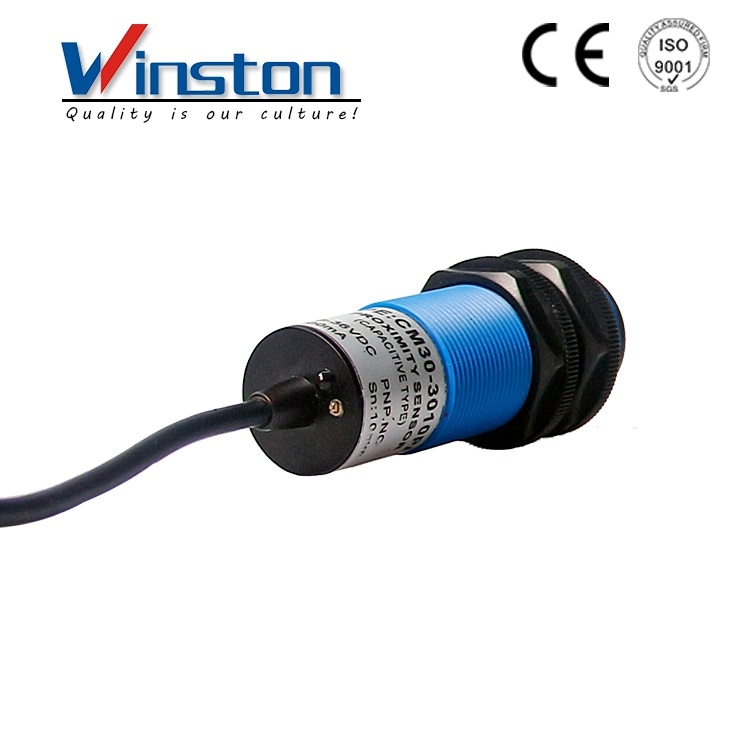

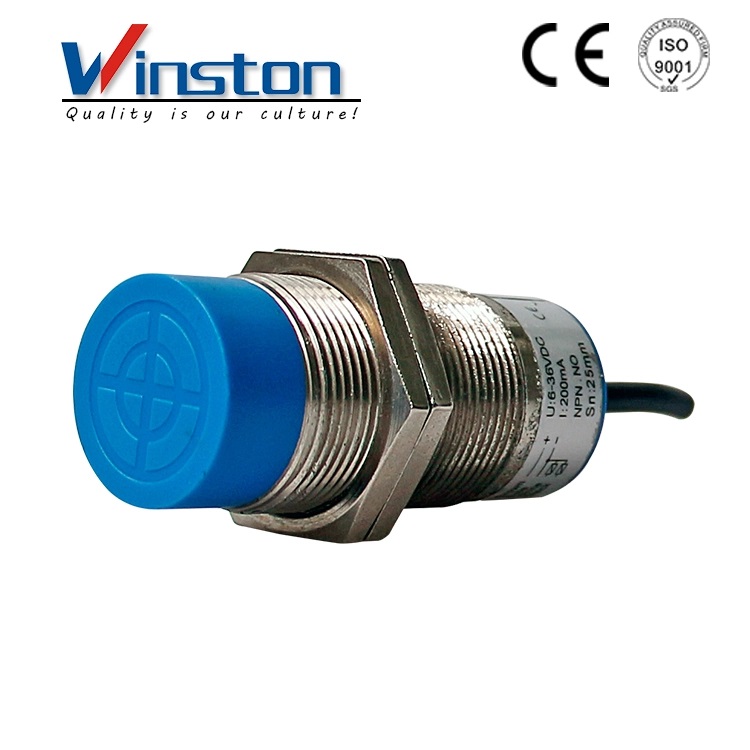

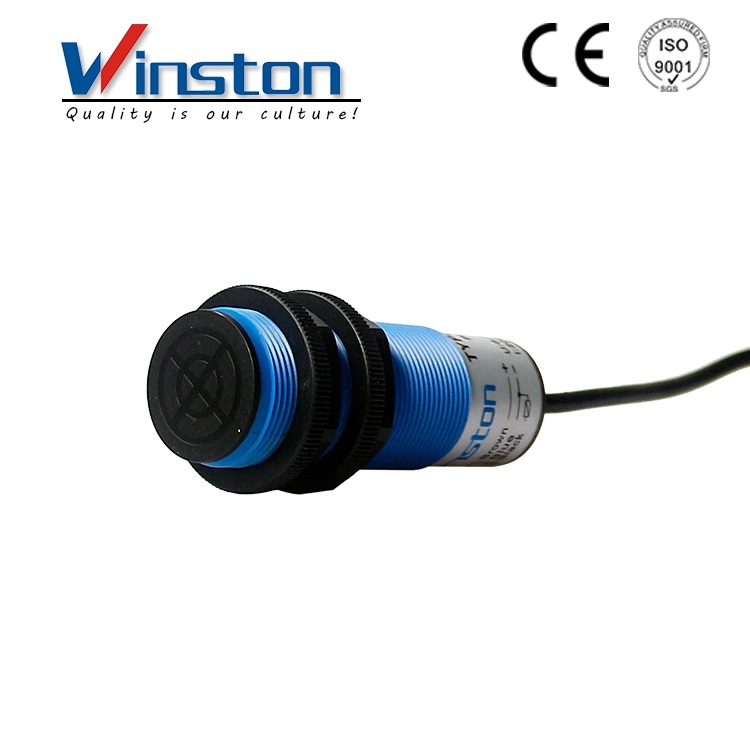

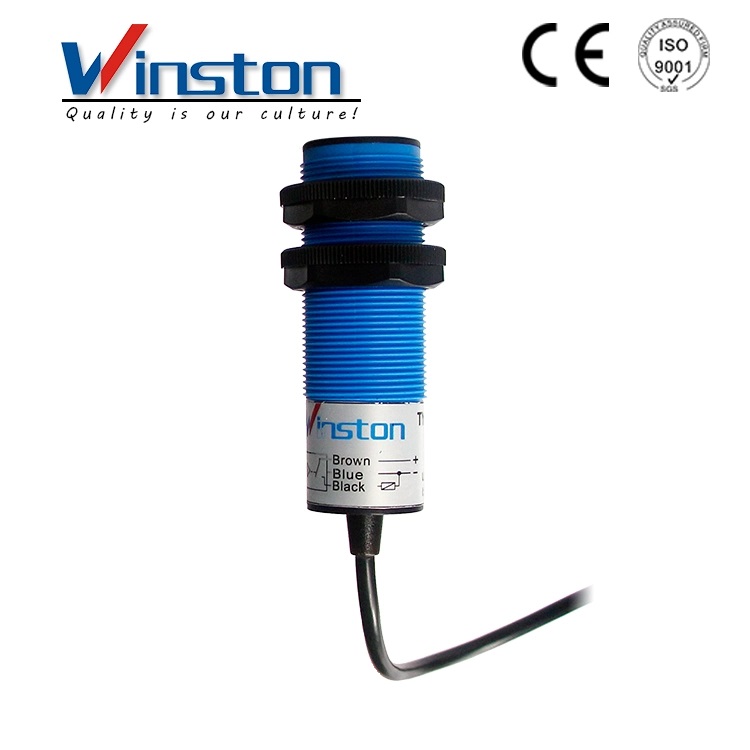

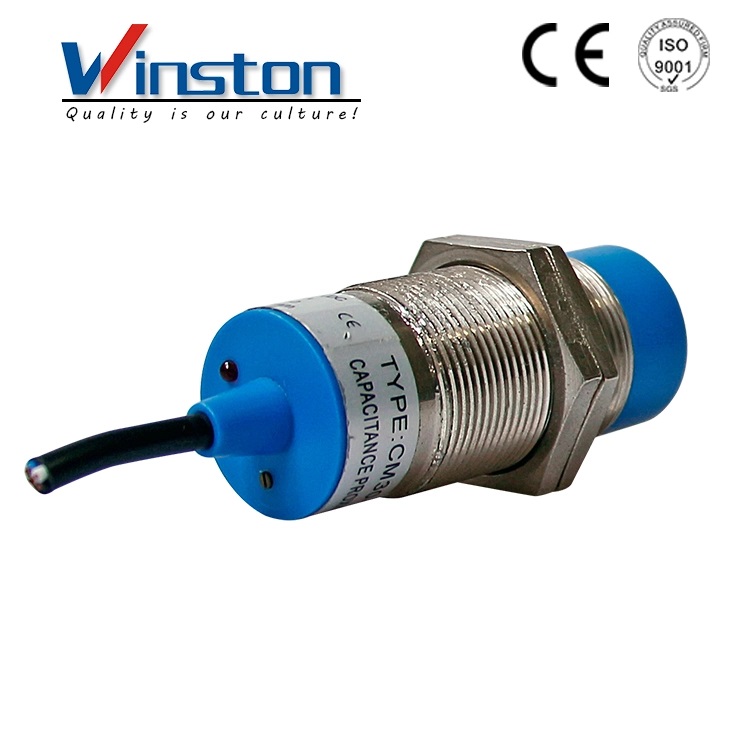

Name: CM30 Capacitive Proximity Switch Sensors
Brand: Winston
SKU: 02034
Rating: 4.9 (1067 reviews)

CM30 Capacitive Proximity Switch Sensors

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Technical Data

Compact volume
Wide voltage range
Diversified exterior structures

high precision of repeated location

Good performance of anti-interference.

Dust proof,vibration proof,waterproof and Oil-proof.

Flush	Detection distance			0-10mm
	DC10-30V	NPN	NO	CM30-3010NA
			NC	CM30-3010NB
			NO+NC	CM30-3010NC
		PNP	NO	CM30-3010PA
			NC	CM30-3010PB
			NO+NC	CM30-3010PC
	AC90-250V	two wire system	NO	CM30-3010LA
			NC	CM30-3010LB
		SCR Control label silicon	NO	CM30-2010A
			NC	CM30-2010B
Control output		DC		200mA
		SCR/Relay		300mA
Non-flush	Detection distance			0-15mm
	DC10-30V	NPN	NO	CM30-3015NA
			NC	CM30-3015NB
			NO+NC	CM30-3015NC
		PNP	NO	CM30-3015PA
			NC	CM30-3015PB
			NO+NC	CM30-3015PC
	AC90～250V	two wire system	NO	CM30-3015LA
			NC	CM30-3015LB
		SCR Control label silicon	NO	CM30-2015A
			NC	CM30-2015B
Control output		DC		200mA
		SCR/Relay		300mA
Detected object				Conductor and Directric Body
Repeated precision				0.05
DC/AC Response frequency				50Hz/10Hz
Working environment temperature				–25℃～75℃
Insulation resistance				50MΩ
Shell material				Two type: ABS Resin and Metal
Protection grade				IEC standard IP54/IIP67
Altemative model at home and abroad				E2K-X15M...
