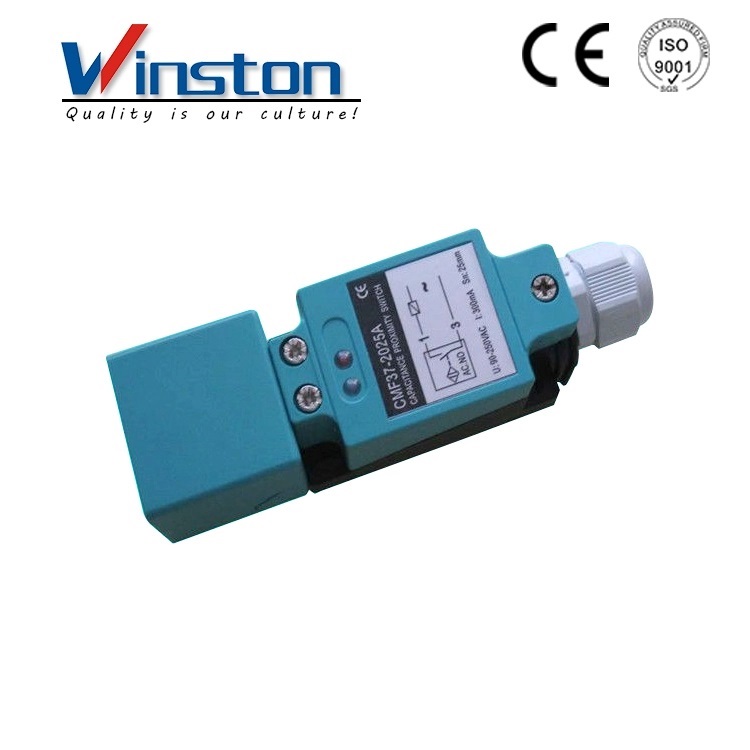

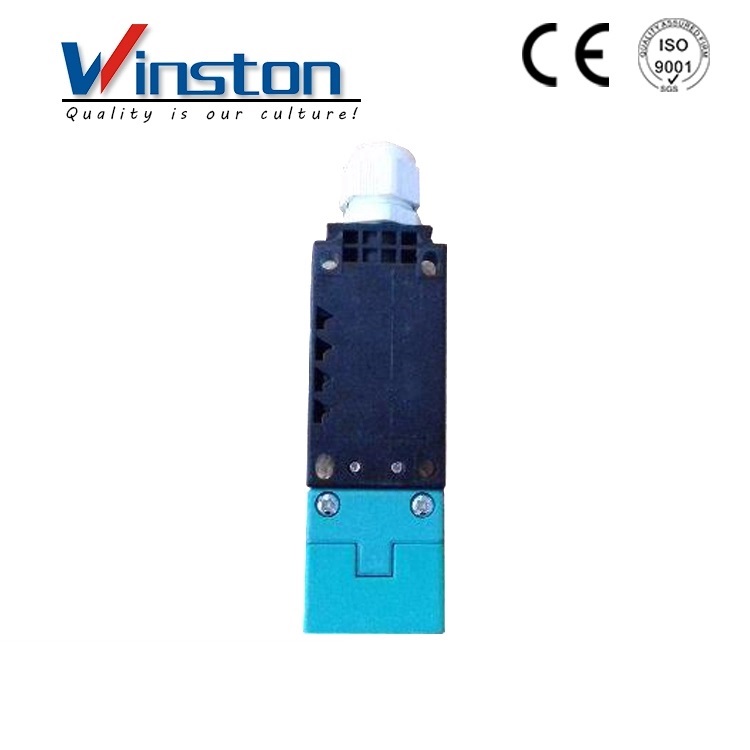

CMF37 Capacitive Proximity Switch Sensor

Name: CMF37 Capacitive Proximity Switch Sensor
Brand: Winston
SKU: 02032
Rating: 4.1 (1066 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Technical Data

Compact volume
Wide voltage range
Diversified exterior structures

high precision of repeated location

Good performance of anti-interference.

Dust proof,vibration proof,waterproof and Oil-proof.

Non-flush	Detection distance			0-25mm

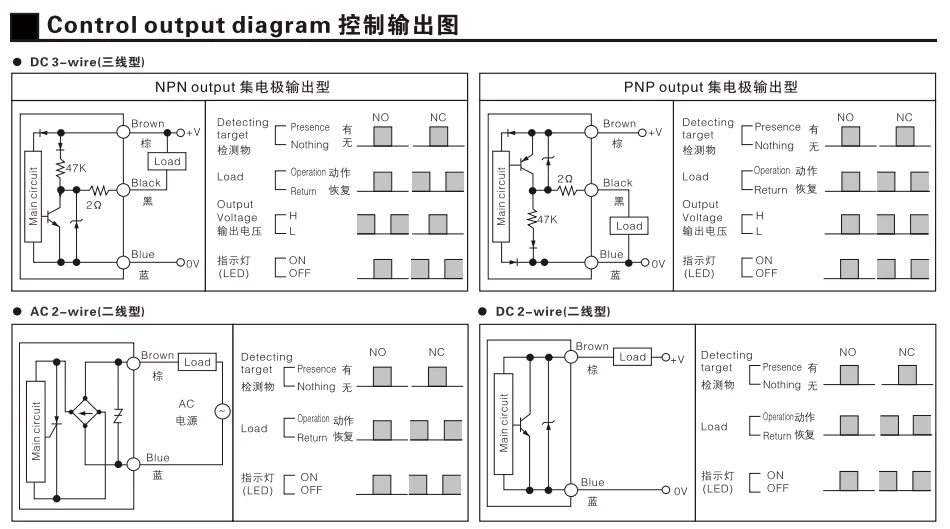

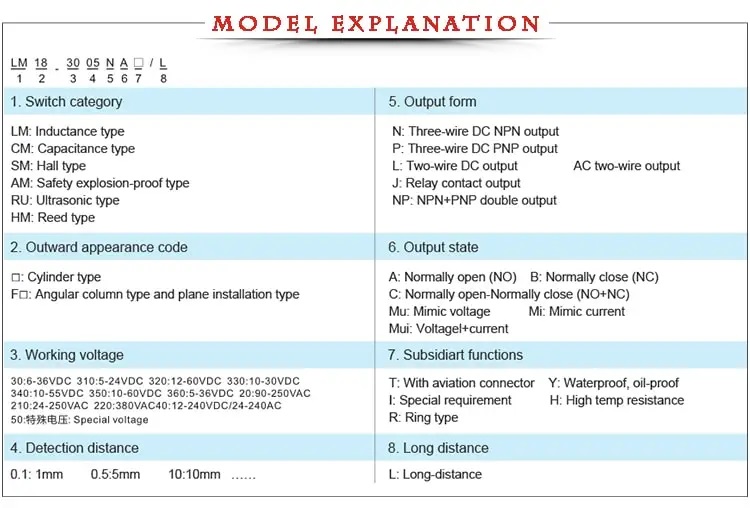

	DC10-30V	NPN	NO	CMF37-3025NA
			NC	CMF37-3025NB
			NO+NC	CMF37-3025NC
		PNP	NO	CMF37-3025PA
			NC	CMF37-3025PB
			NO+NC	CMF37-3025PC
	AC90~250V	two wire system	NO	CMF37-3025LA
			NC	CMF37-3025LB
		SCR Control label silicon	NO	CMF37-3025A
			NC	CMF37-3025B
Control output		DC		200mA
		AC		300mA
Output voltage drop DC/AC				DC<3V AC<10V
Consumption current				DC<15mA AC<10mA
Detected object				Conductor and Directric Body
Repeated precision				0.05
DC/AC Response frequency				50Hz/10Hz
Working environment temperature				–25℃~75℃
Insulation resistance				50MΩ
Shell material				ABS Plastic
Protection grade				IEC standard IP54
Altemative model at home and abroad
