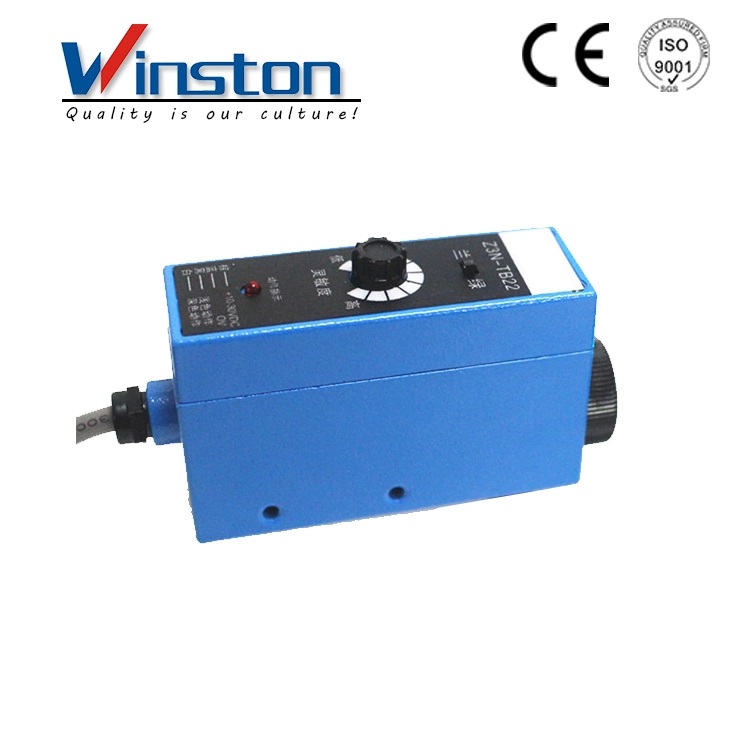

Z3N-TB22 Photoelectric color mark sensor

Name: Z3N-TB22 Photoelectric color mark sensor
Brand: Winston
SKU: 02023
Rating: 4.9 (1062 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Description

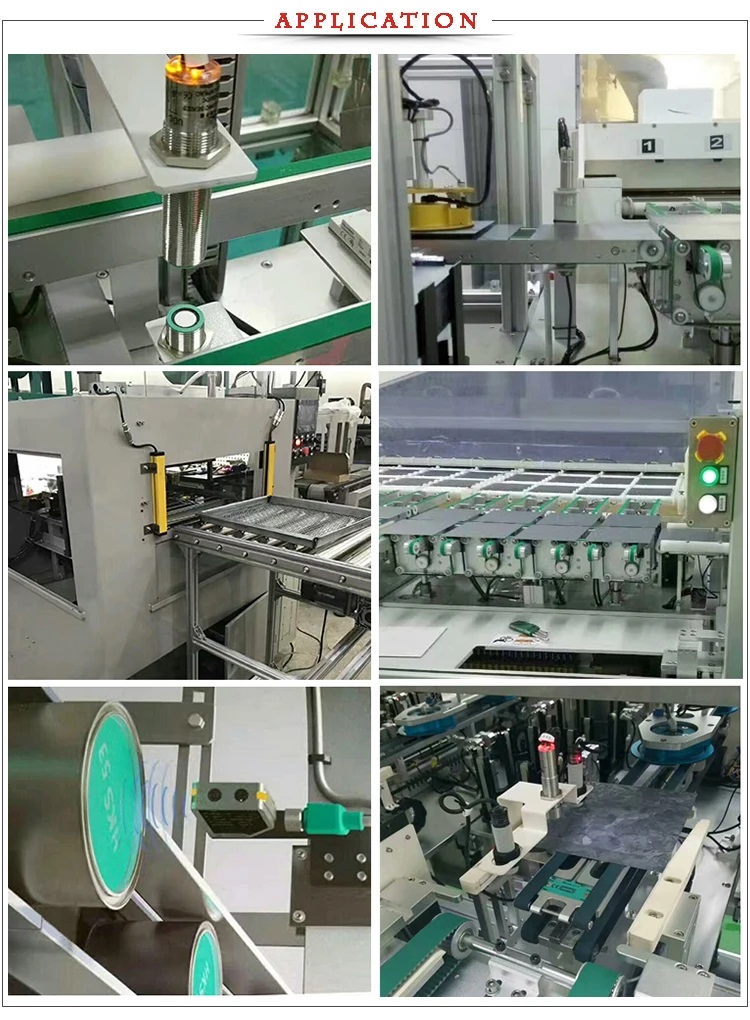

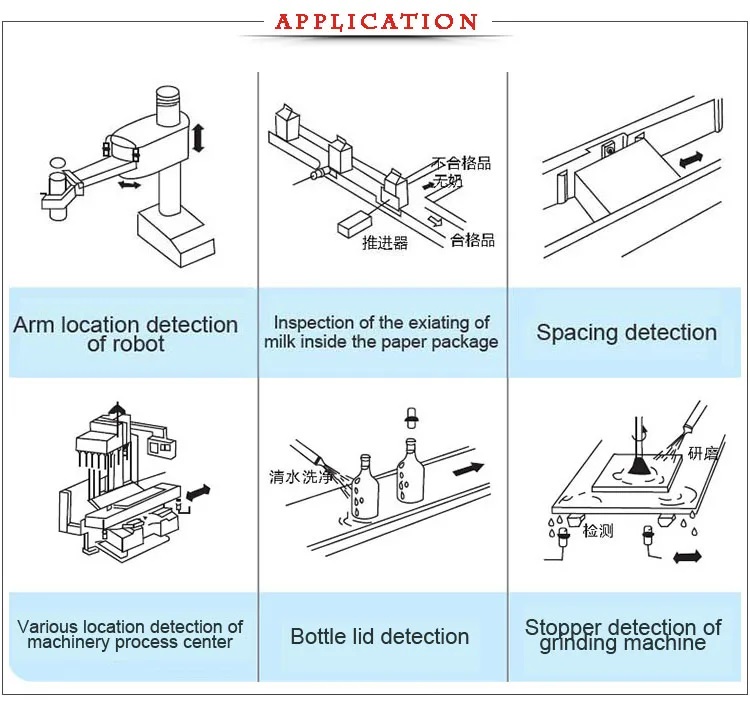

Application

Technical parameter

1. Coaxial reflective type optical design
2. Small light spot, precise detection.
3. Output short circuit protection design.
4. Power supply: DC 10-30V.

Color Mark Sensor
Outward appearance code	Z3N-TB22
Size(mm)	28× 48× 80
Supply Voltage	10-30V DC
Ambient temperature	-15℃-65℃
Detecting method	Coaxial reflection
Examination distance	10mm± 2mm
Chromatogram of light	Red/Green/Blue/White
Facula	Circular
Response time	0.1-1ms
Output current	200mA
Output type	NPN/PNP
Shell material	Mental
Cable length	2m
Gross Weight	410g
