WZLJ-200D Normally Open DC Contactor

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Main features

· 200A Contact switching capability

· One set of normally open contacts

· Coil power consumption is：8～11W Min～Max

· Application Scope：Battery truck, Electric forklift, Electric winch, Electric vehicle,

Excavator, Automobile air conditioner, Communication power supply,etc

Power on / off control of DC power supply systems.

· Technical specifications：GB/T14048.4-2020

· Product compliance： ROHS

· Product certification: CE

Application

Matters needing attention

1.When installing the contactor, the tightening torque of the main circuit wiring screw nut is 8～10N.m;

Control circuit wiring screw nut tightening torque 1～1.5N.m.

2.The driving circuit power of the product coil must be greater than or equal to the product coil power,

Otherwise the cutting capacity of the product will be reduced.

3.The voltage continuously applied to the coil shall not exceed the maximum allowable voltage.

Otherwise, the abnormal heating of the coil will shorten the life of the insulation layer.

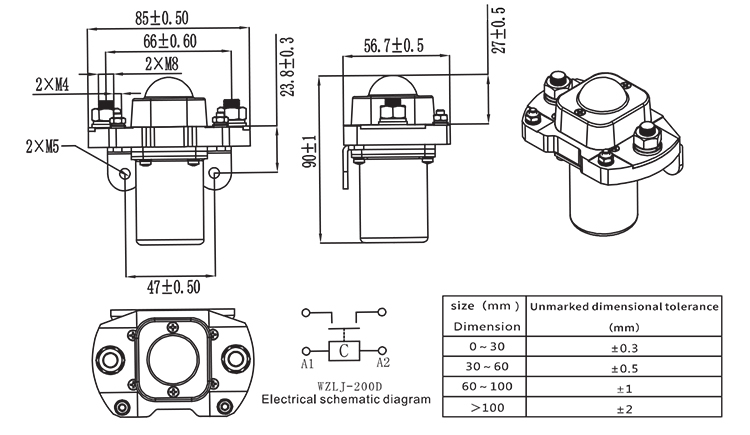

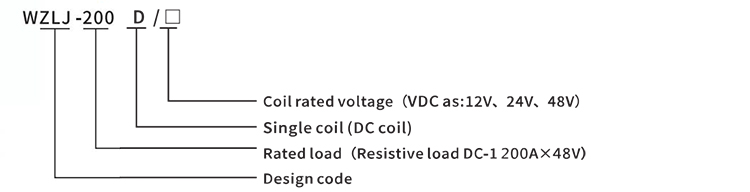

Example：WZLJ-200D/48；Indicates: the main contact is normall open,the rated voltage is not greater than DC48V,the current is 200A,and the coil voltage is DC48V DC contactor.

Model	WZLJ-200D
Contact form	1D (SPST-NO)
Contact material	Silver alloy
Contact load	200A×48VDC（DC-1）
Contact pressure drop	≤80mV@200A
Insulation resistance	Min. 100MΩ at 500VDC
Dielectric Strength	1000VAC 50 HZ/60 HZ (1 minute) Leakage current less than 1mA
Pulse width	/ ( for magnetic retention products only )
Pull in time	Max. 40mSec.
Release time	Max. 40mSec.
Pull-in voltage (DC V)	10~70% US
Release voltage (DC V)	10~40% US
Operating ambient temperature	-25℃~+60℃
Storage temperature	-40℃~+65℃
Relative humidity	20%~90% RH
Mechanical life	≥150,000 second
Class of pollution	III
Working system	Continuous working system
Vibration	（10～200）Hz acceleration ≤3.5g
To attack	（60） Times / minute acceleration 6g

Coil parameters

Model	Coil voltage (V)	Coil operating voltage（V）	Pull-in voltage（V）	Release voltage（V）	Starting current（A）	Power waste（W）
WZLJ- 200D	12	0.85US～1.1US	≤70%	≥10%	≤1	7～16
	24				≤0.6	7～16
	48				≤0.5	7～16
	60				≤0.4	7～16
	72				≤0.3	7～16
