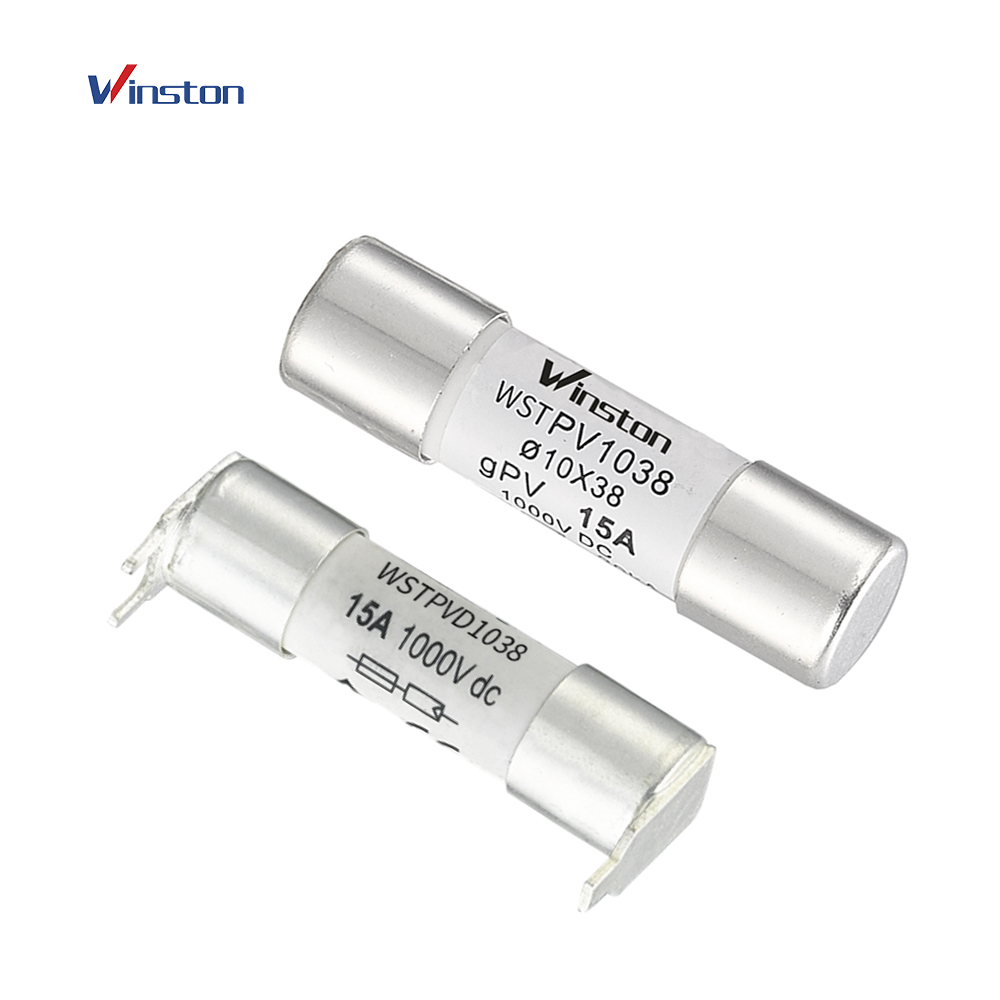

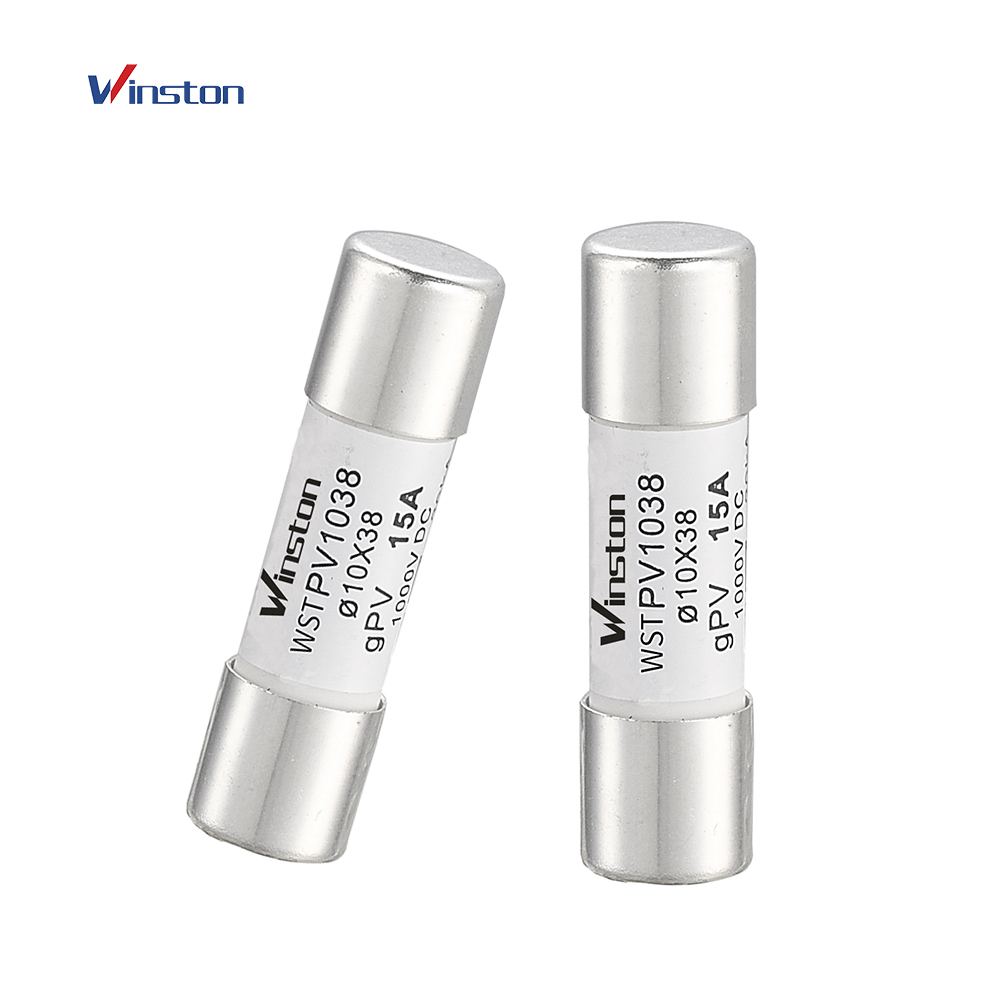

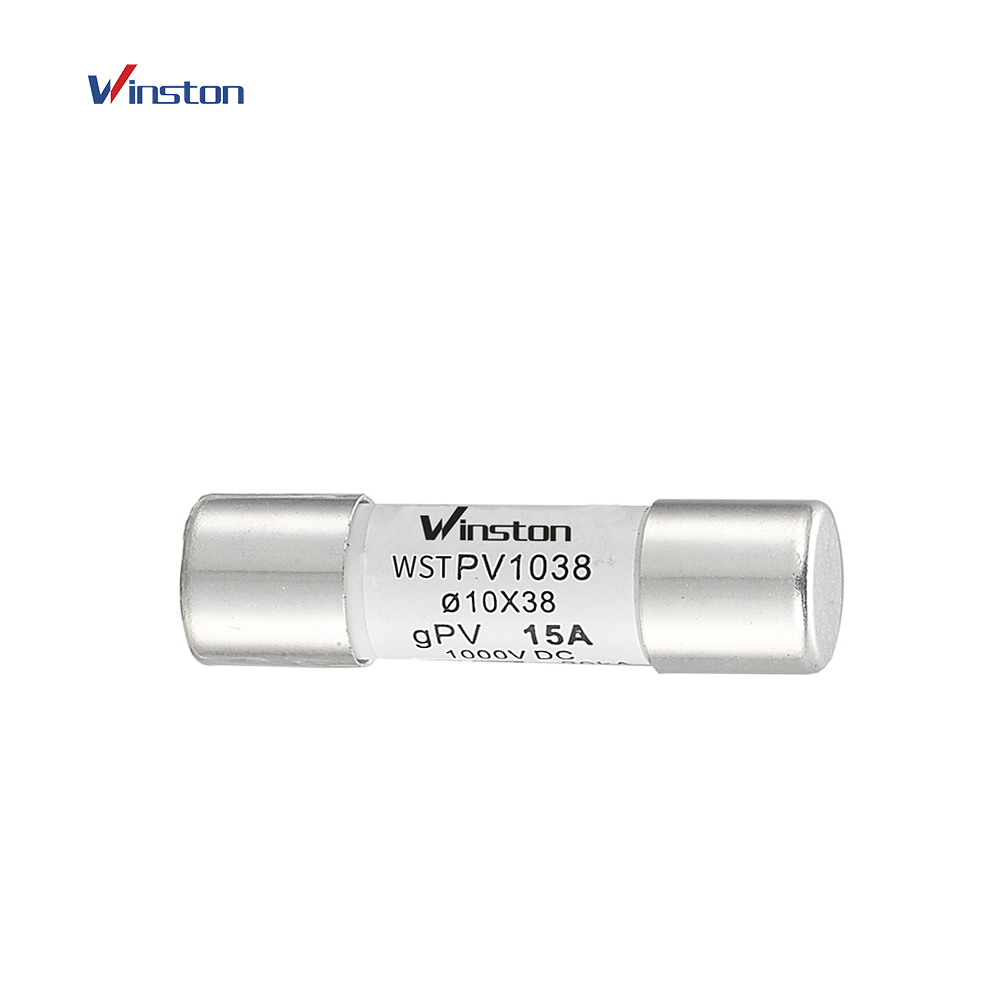

WSTPV1038 1000V Solar gPV Photovoltaic Fuse Link

WSTPV1038 1000V Solar gPV Photovoltaic Fuse Link

Name: WSTPV1038 1000V Solar gPV Photovoltaic Fuse Link
Brand: Winston
SKU: 02358
Rating: 4.9 (1229 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

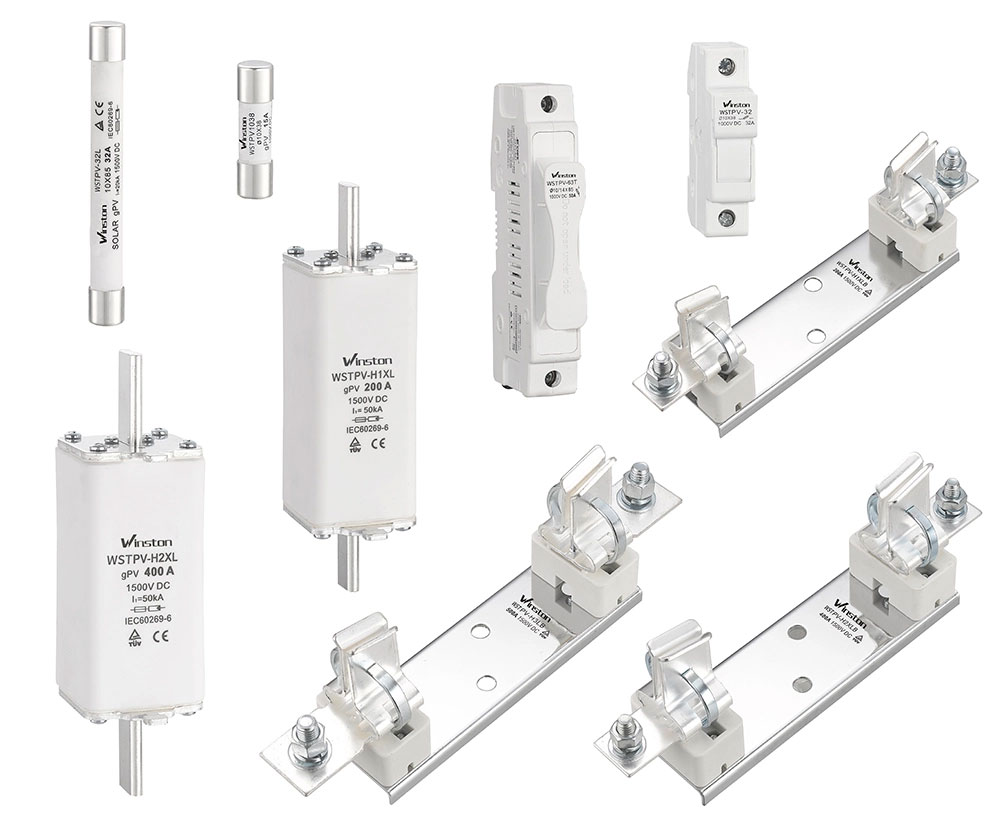

Application

This series of fuse is suitable for solar photovoltaic power generation system, rated voltage to 1500V ,rated current to 630A ,used in photovoltaic power generation equipment as a photovoltaic module string and photovoltaic array for over current protection, and photovoltaic panels,and batteries connected in series and parallel, to charge variable flow system for short circuit breaking protection, in photovoltaic station and inverter rectifier system for short-circuit breaking protection,as well as photovoltaic power generation system. inrush current and short circuit fault voltage for quick break protection, rated breaking capacity to 10~50kA. products confirms to IEC 60629.1 and 60629.6.

Normal service Conditions

Ambient Temperature:-40℃-+90℃

Equipment installation height: less than 2000m (If exceeding this value, please specify the requirements, and company will design according to the requirements) Relative air humidity: less than 90%

Use category

gPV means all range DC Fuse used for breaking protection in solar photovoltaic power generation system

Structure

Fuse link is made of pure silver (or made of silver strings), welding low tin and encapsulated in the melt tube made of high-strength porcelain, the fuse tube filled with high pure quartz sand chemically processed as the arc medium, fuse body is connected with contacting terminals by spot welding Fuse base suppressed by the plastic casing fitted with contacts and contains the fusion pieces, the connection made by riveting as the support of the appropriate size fuse body parts. This series fuse has a compact and convenient device, use security, beautiful appearance, etc.

Solar photovoltaic power generation system

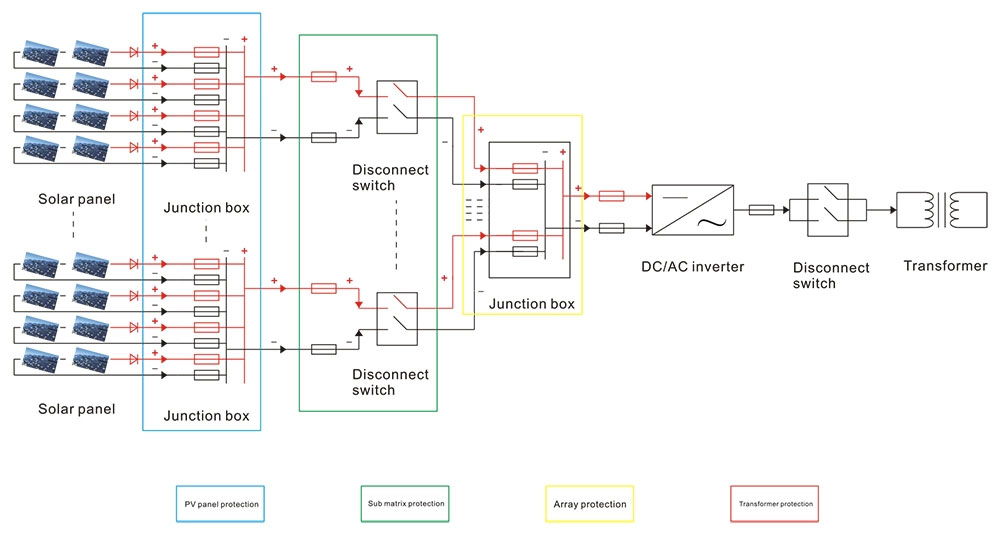

Distribution network diagram

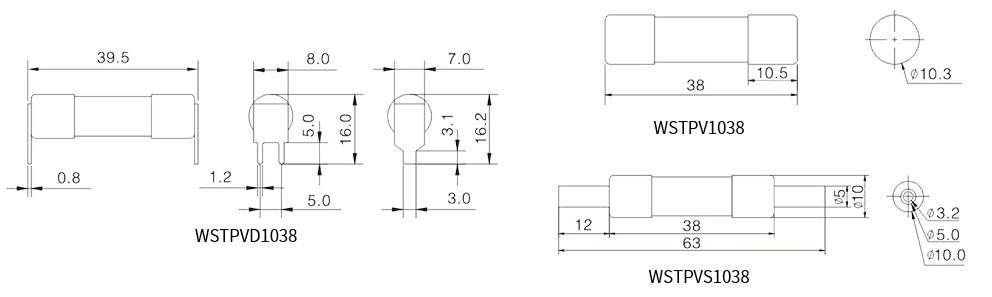

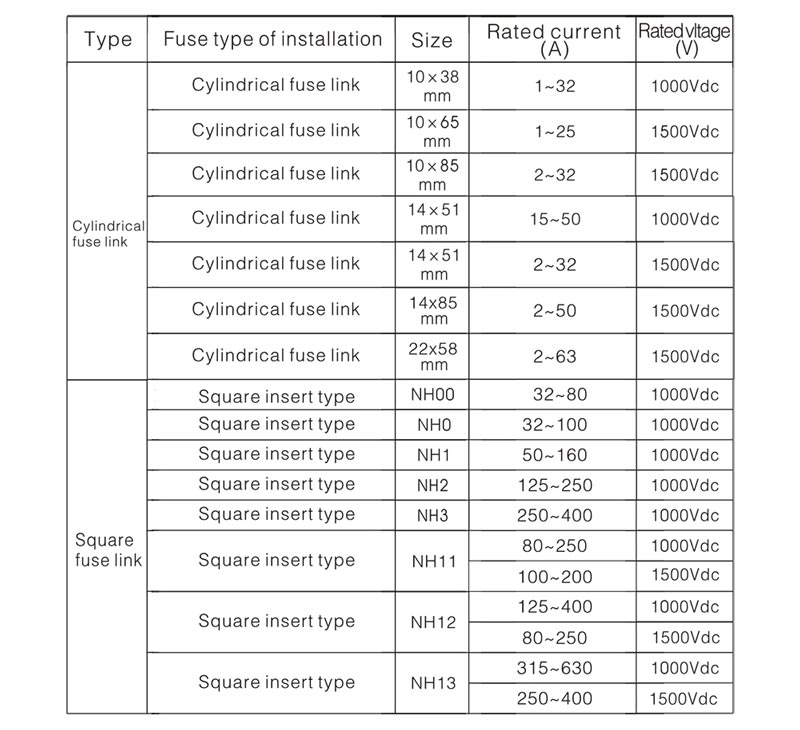

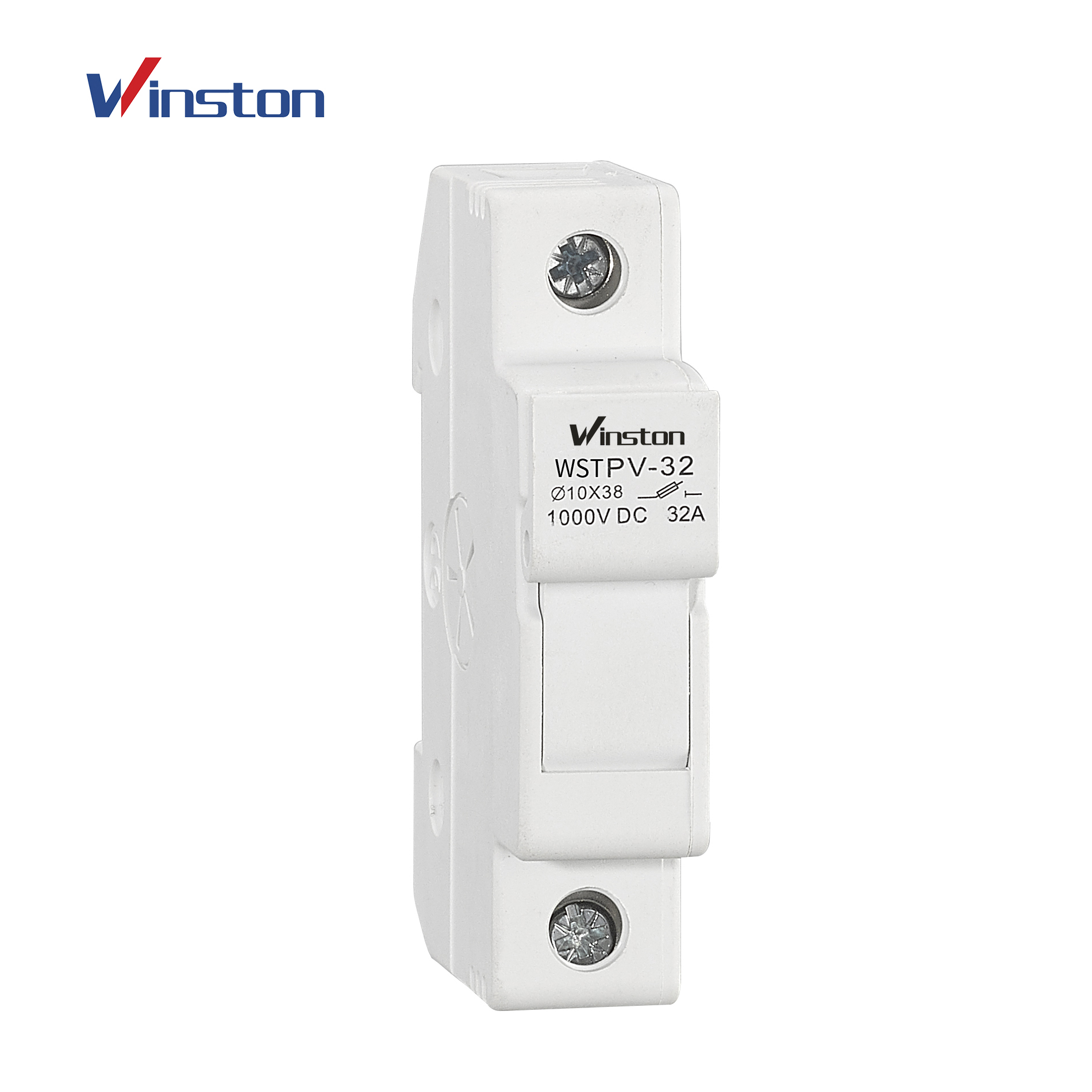

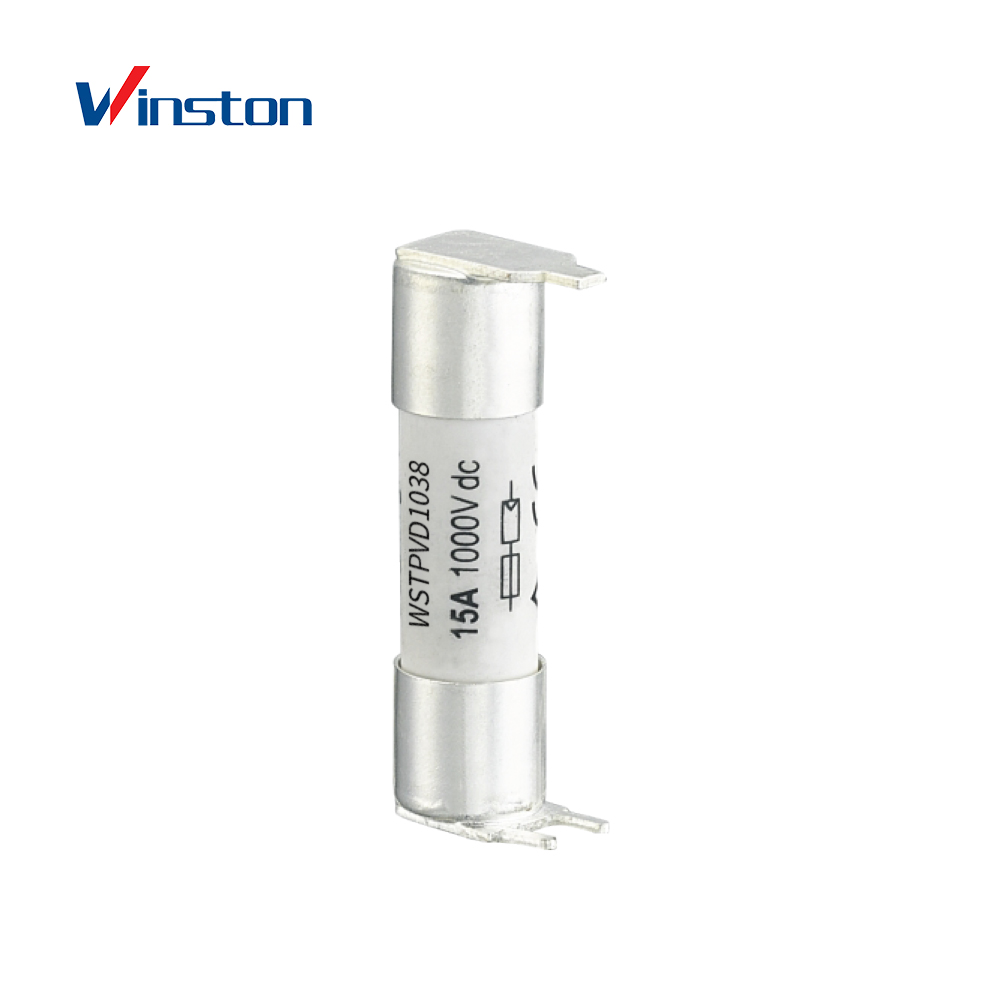

Main model and installation

Model	Rated current(A)	I²T (A²S)
Model	Rated current(A)	Pre-arcing	Total
WSTPV1038	1	0.15	0.4
WSTPV1038	2	1.2	3.3
WSTPV1038	3	3.9	11
WSTPV1038	4	10	27
WSTPV1038	5	18	48
WSTPV1038	6	31	89
WSTPV1038	8	3.1	31
WSTPV1038	10	7.2	68
WSTPV1038	12	16	136
WSTPV1038	15	24	215
WSTPV1038	16	28	255
WSTPV1038	20	38	392
WSTPV1038	25	71	508
WSTPV1038	30	102	821
WSTPV1038	32	176	976
