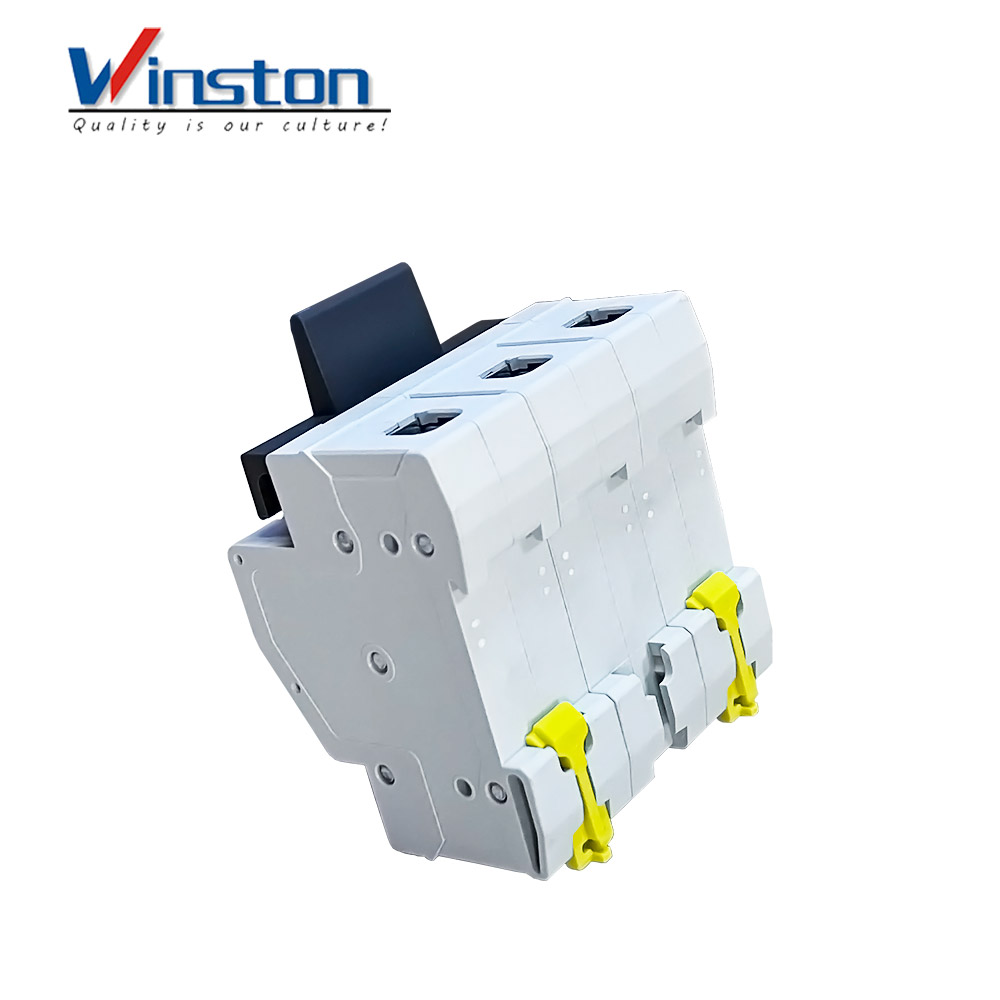

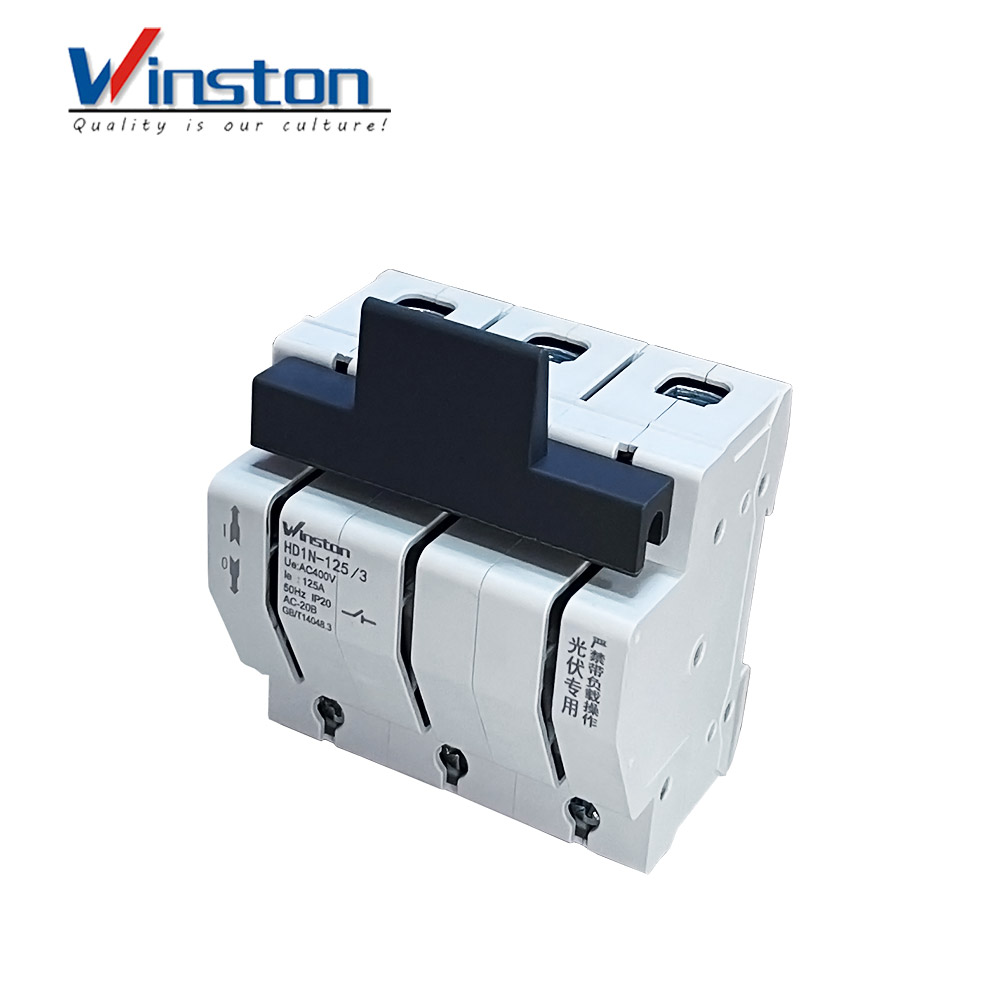

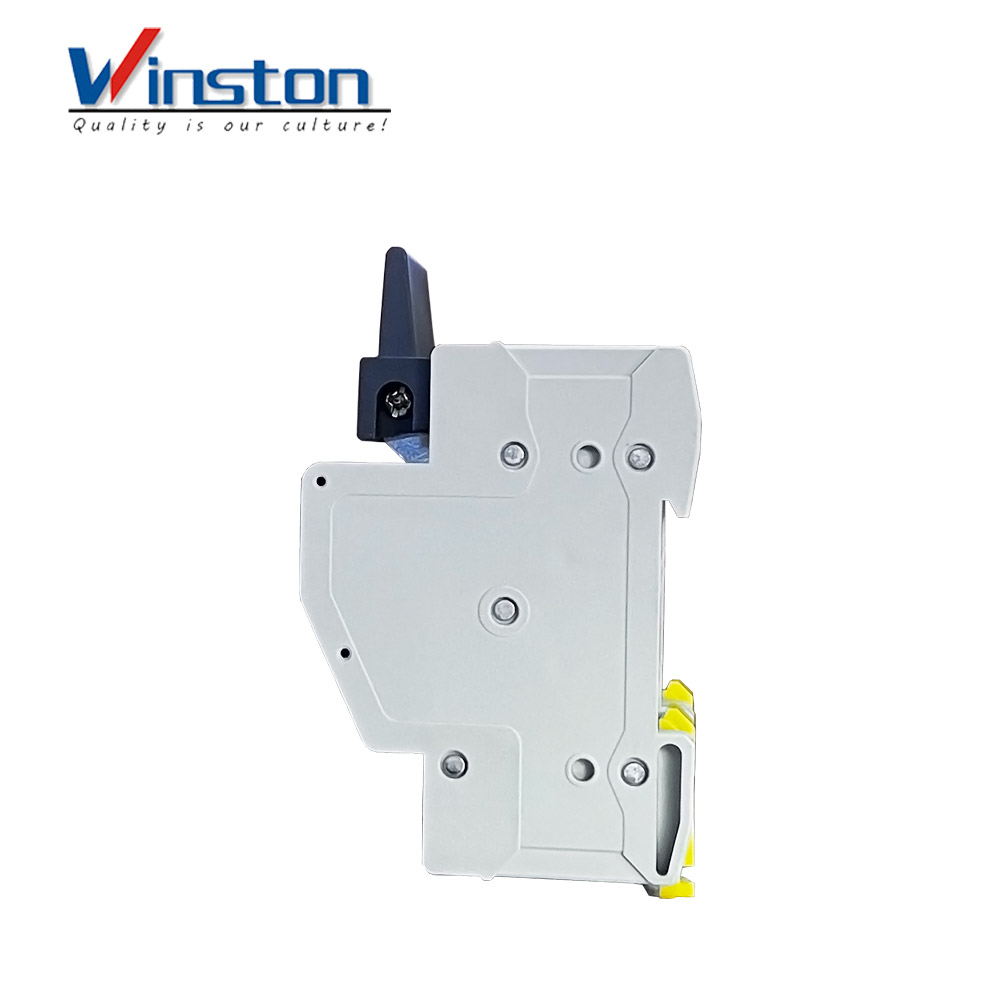

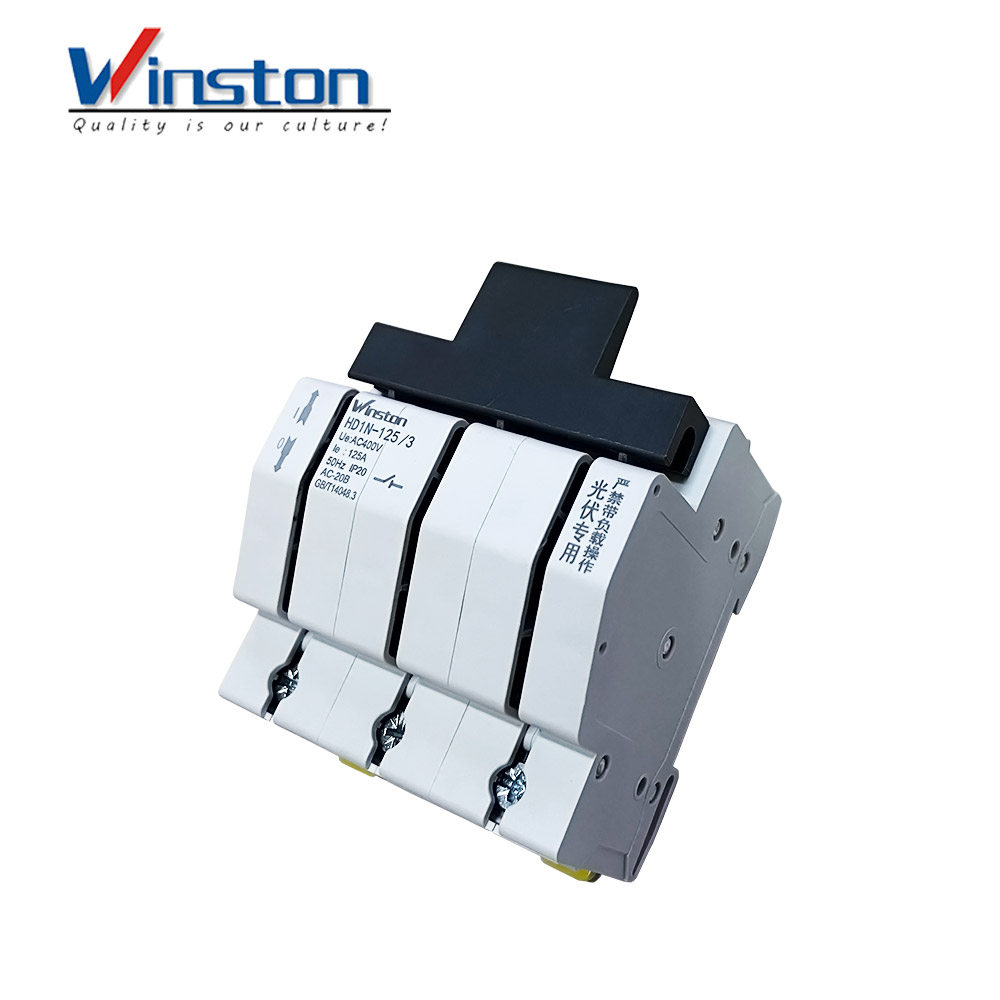

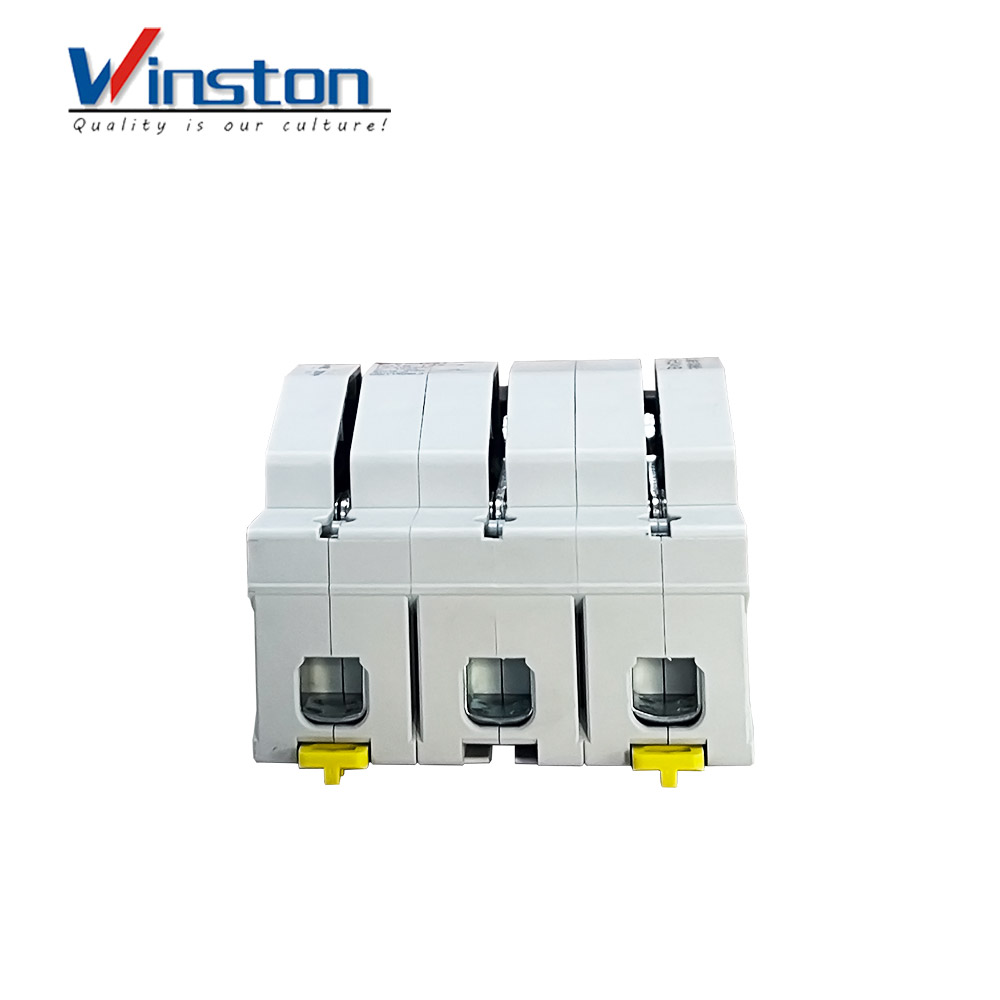

HD1N-125 series photovoltaic special knife switch is suitable for AC 50Hz, rated voltage to 400V and below, rated impulse withstand voltage 6kV control circuit, can be used as household appliances and industrial enterprises in the power distribution system to do infrequent manual switching and breaking circuit and isolation circuit, greatly improve the personal safety protection performance, to prevent false shock.
This product conforms to GB/T14048.3, IEC60947-3 standard.
● It solves the problem of inconvenient installation of traditional tool switch, and changes to guide rail installation mode;
● Solve the problem of traditional tool switch open cover connection, this model can be connected without open cover;
● Both ends of the cutter switch adopt circular arc clamp design to ensure reliable electrical contact of the switch, and not easy to deformation and loosening.
|
Model number |

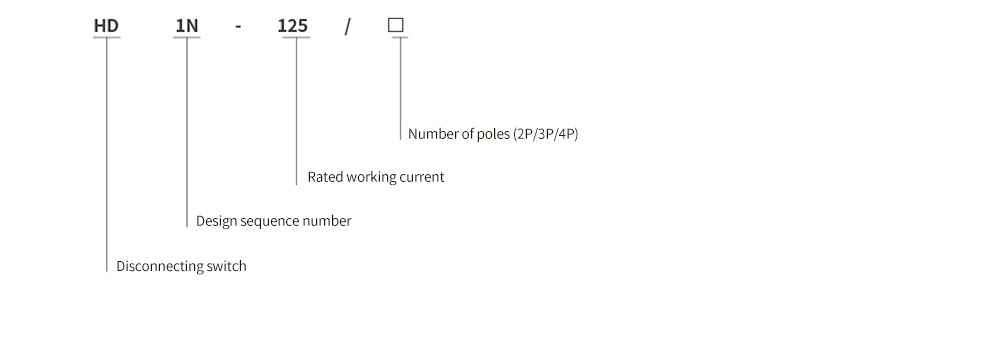

HD1N-125(or /2、/B) |
|
specification |
2P,3P,4P |
|
Rated operating voltage |
400V |
|
Rated working current |
63A,100A,125A |
|
Rated operating frequency |
50Hz |
|
Rated impulse withstand voltage |
6kV |
|
Category of use |
AC-20B |
|
Rated short-time withstand current Icw(kA) |
1.89 |
|
Rated short-circuit closing capacity Icm(kA) |
2.69 |
|
Mechanical life (second) |
10000 |
|
Electrical life (s) |
1500 |

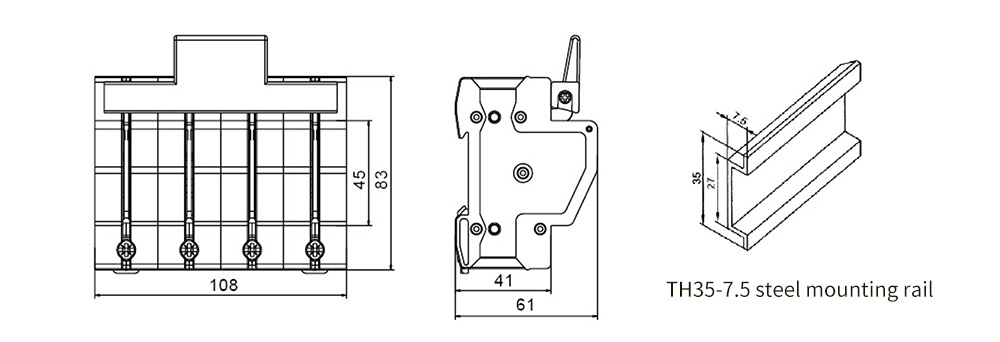

● The ambient air temperature shall not exceed +70 ° C, not lower than -25 ° C, and the average temperature value within 24h shall not exceed +35 ° C.
● The elevation of the installation site does not exceed 2000m.
● Humidity: When the maximum temperature is +60 ° C, the relative humidity of the air does not exceed 95%, and special measures should be taken for condensation occasionally caused by temperature changes.
● The ambient pollution level is level 3.
● The switch should be installed in a place where there is no significant shaking, shock shock and no rain or snow attack, and the installation site should be free from explosive dangerous media, and there is no gas and dust in the media that is enough to corrode metal and destroy insulation.
