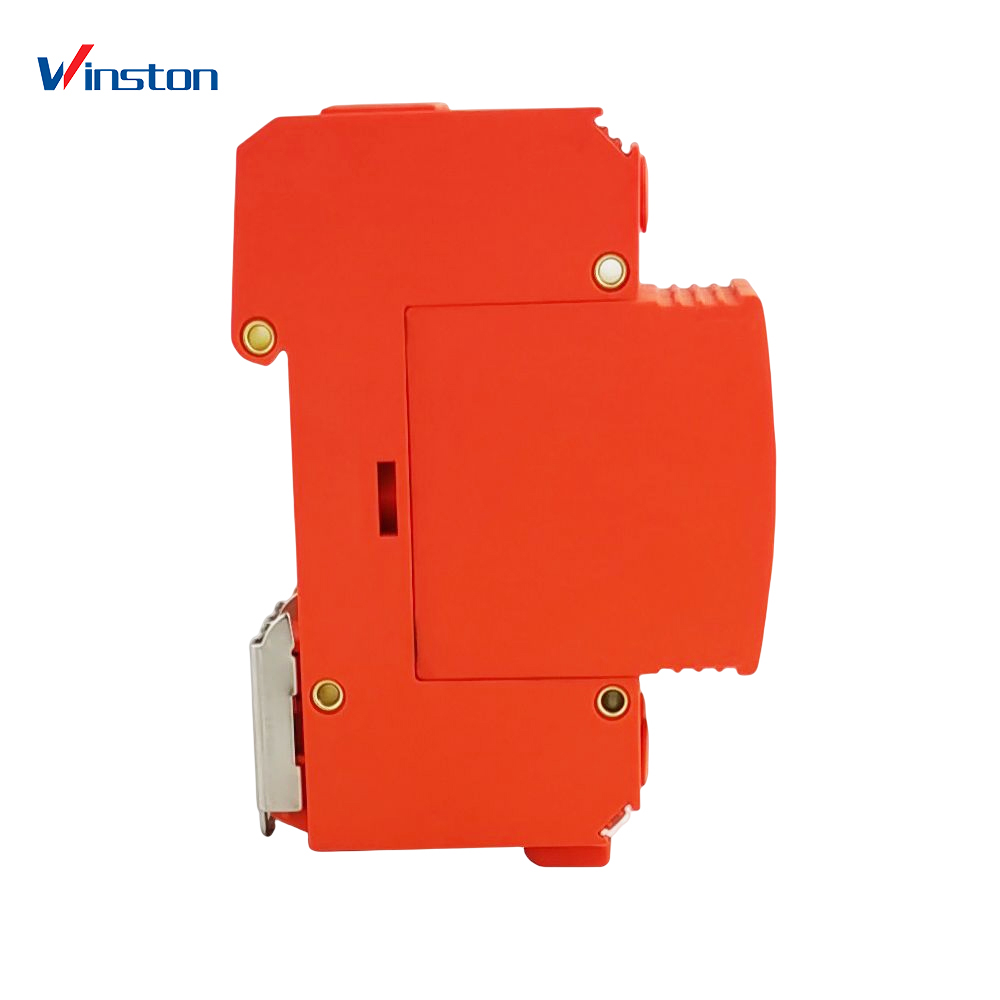

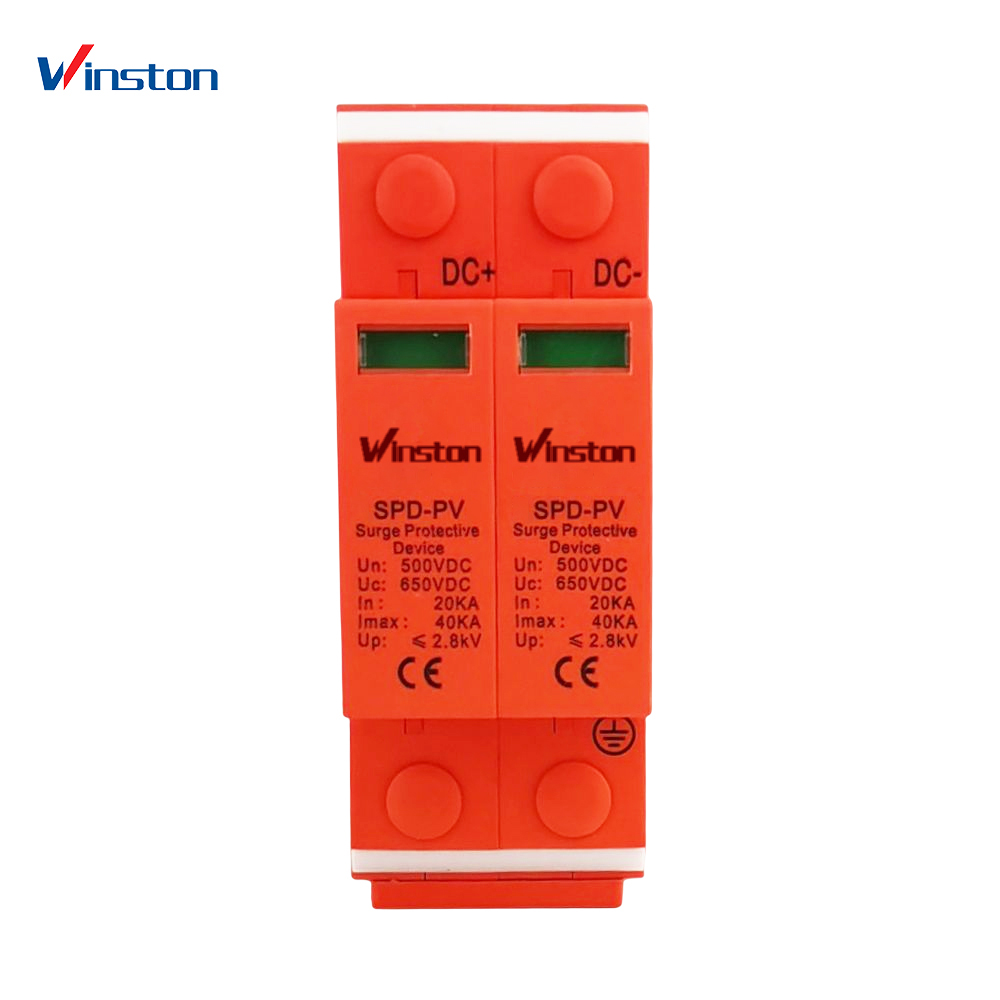

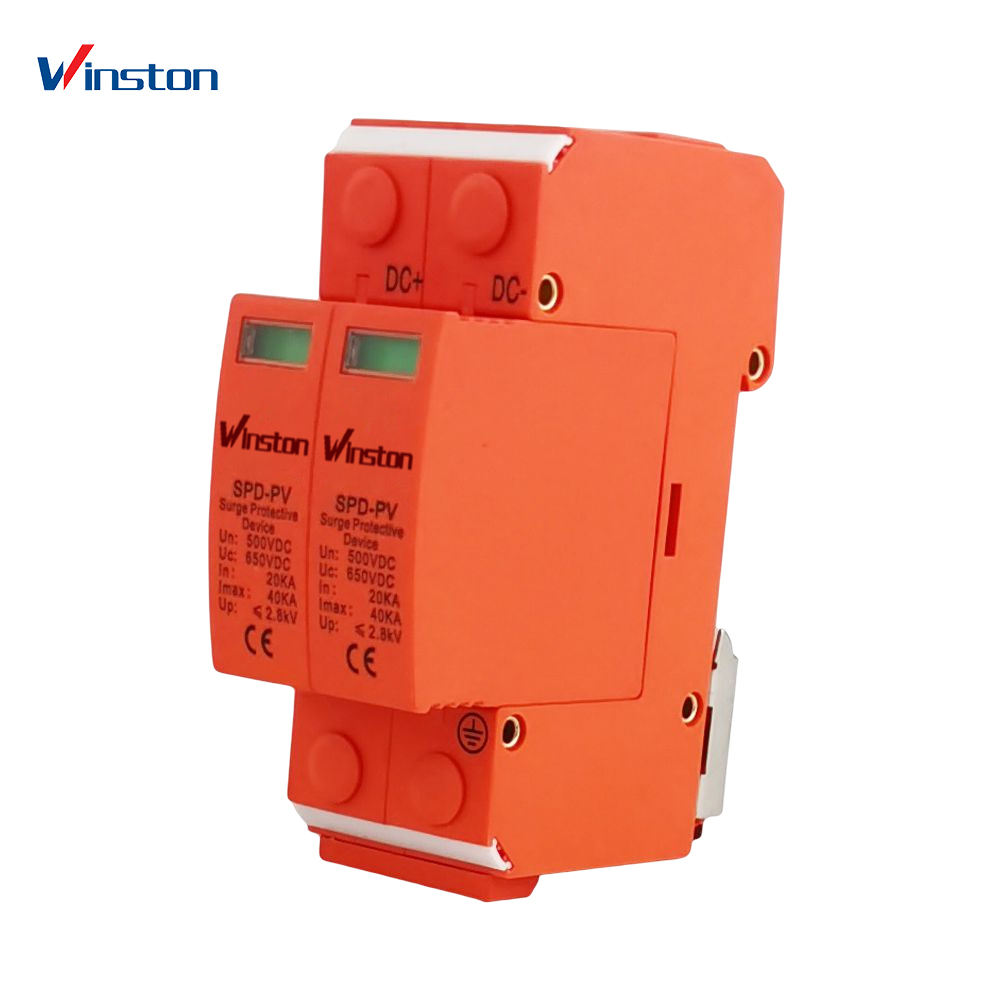

SPD-PV-500V Surge Protection Devices

Name: SPD-PV-500V Surge Protection Devices
Brand: Winston
SKU: 02364
Rating: 4.9 (1232 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Products Description

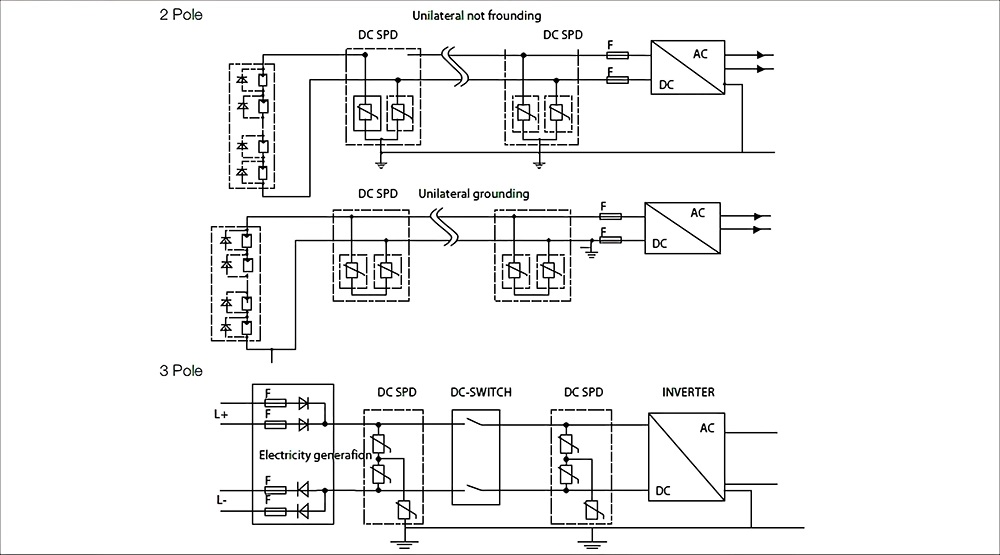

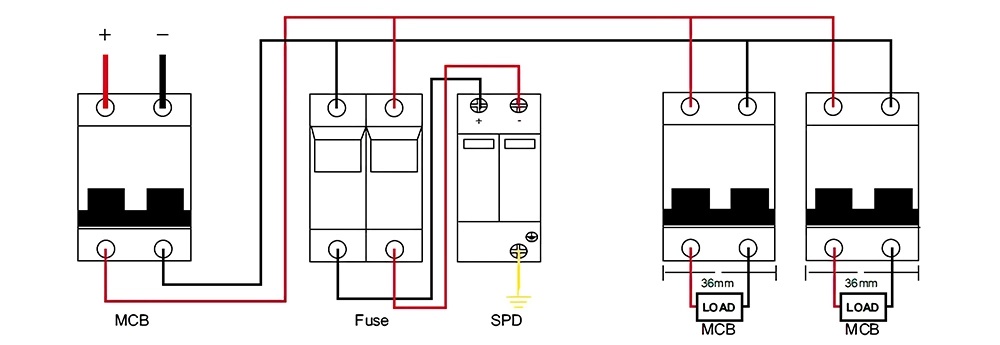

SPD surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.High energy MOVs equipped with specific thermal disconnectors and related failure indicators.

Item	DC surge protector
Model Number	SPD-PV
Pole	2P
Classified test	Ⅱ
Un (V DC)	500
Uc (V DC)	650
In(8/20)us (kA)	20
Imax(8/20)us (kA)	40
Up (kV)	3.8
Hard wiring capacity(mm²)	4~25
Flexible wiring capacity(mm²)	4~16
Stripping length(mm)	10
Terminal screwa	MS
Protection class	IP40
Installation environment	No obvious shock and vibration
Altitude (m)	≤ 2000
Working Temperature	-3.0~+70
Relative humidity	30%~90%

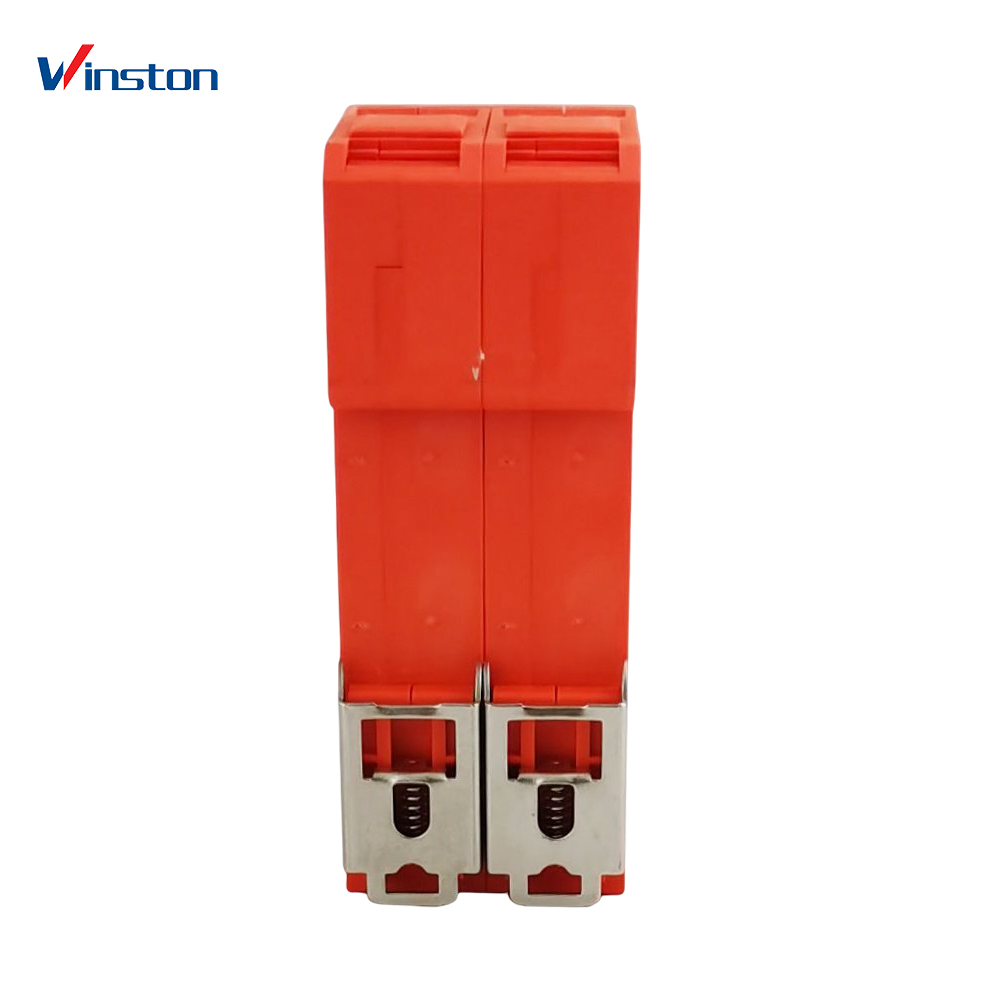

How to Install	Installed with H35-7.5/DIN35 steel mounting rail
