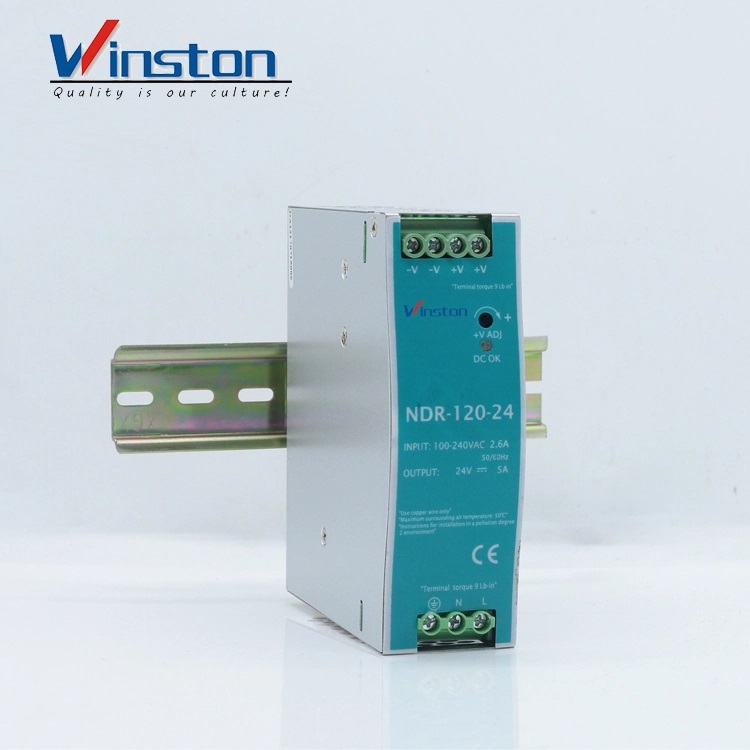

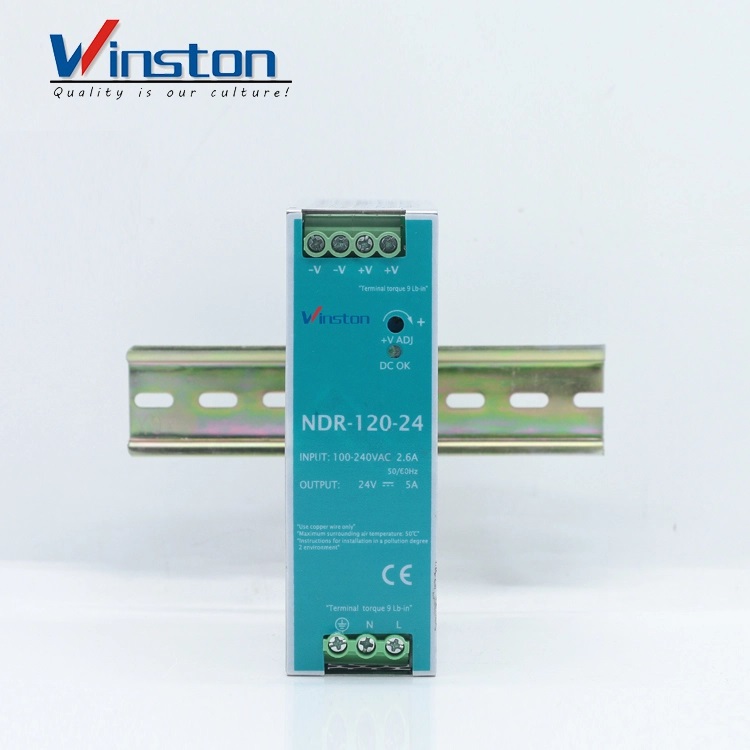

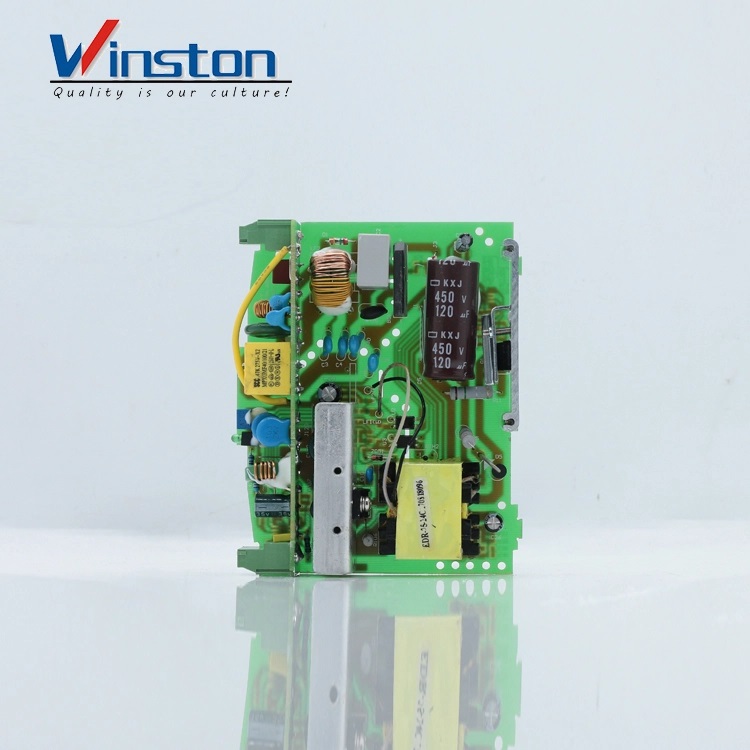

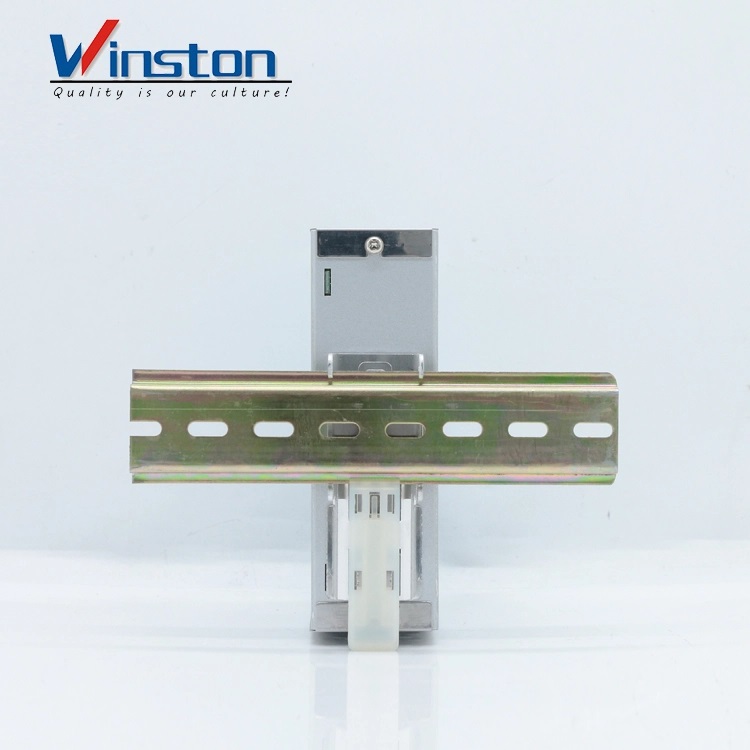

NDR-120 Single Output Industrial DIN Rail Power Supply

MODEL

NDR-120-12

NDR-120-24

NDR-120-48

OUTPUT

DC VOLTAGE

12V

24V

48V

CURRENT CURRENT

10A

5A

2.5A

CURRENT RANGE

0~10A

0~5A

0~2.5A

RATED POWER

120W

120W

120W

RIPPLE & NOISE

100mVp-p

120mVp-p

150mVp-p

VOLTAGE ADJ. RANGE

12~14V

24~48V

48~55V

VOLTAGE TOLERANCE

±2.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±1.0%

±1.0%

±1.0%

SETUP, RISE TIME

1200ms, 60ms/230VAC 2500ms, 60ms/115VAC at full load

HOLD UP TIME

16ms/230VAC, 10ms/115VAC at full load

INPUT

VOLTAGE RANGE

90~264VAC   127~370VDC

[DC input operation possible by connecting AC/L(+),AC/N(-)]

FREQUENCY RANGE

47~63Hz

EFFICIENCY

85.50%

88%

89%

AC CURRENT

2.25A/115VAC 1.3A/230VAC

INRUSH CURRENT

20A/115VAC 35A/230VAC

LEAKAGE CURRENT

<1MA/240VAC

PROTECTION

OVRELOAD

105~130% rated output power

Protection type: Constant current limiting,

recovers automatically after fault condition is removed

OVER VOLTAGE

14~17V

29~33V

56~65V

Protection type: Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Protection type: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP

-20~+70°C (Refer to "Derating Curve")

WORING HUMIDITY

20~95% RH non-condensing

STORAGE TEMP., HUMIDITY

-40~+85℃,10~95%RH

TEMP.COFFICIENT

±0.03%,℃(0-50℃)

VIBRATION

Component: 10~500Hz, 2G 10min/1 cycle,60min, each along X,Y,Z axes;

Mounting Compliance to IEC60068-2-6

SAFETY& EMC

SAFETY STANDARDS

UI508, TUV EN60950-1 approved

WITHSTAND VOLTAGE

I/P-O/P 3KVAC I/P-FG 2KVAC O/P-FG 0.5KVAC

ISOLATION RESISTANCE

I/P-O/P I/P-FG,O/P-FG>100M Ohms / 500VDC / 25°C / 70% RH

EMC EMISSION

Compliance to EN55022, EN 61204-3 ClassB, EN61000-3-2

EMC IMMUNITY

Compliance to EN 61000-4-2,3,4,5,6,8,11 EN55024, EN61000-6-2(EN50082-2), EN1204-3, heavy industry level, criteria A

OTHERS

MTBF

456.3K, hrs min. MIL-HDBK-247F

DIMENSION

40*125.2*113.5mm(W*H*D)

PACKING

0.6Kg. 20pcs/13Kg/1.16CUFT

NOTE

1. All paramenters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12’ twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor

3. Tolerance, includes set up tolerance, line regulation and load regulation

4. The power supply is considered a component which will be installed into a final equipment, The final equipment must be re-confirmend that it still meets EMC directives

5. Installation clearances 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanaentyly with full power . in case the adjacent
