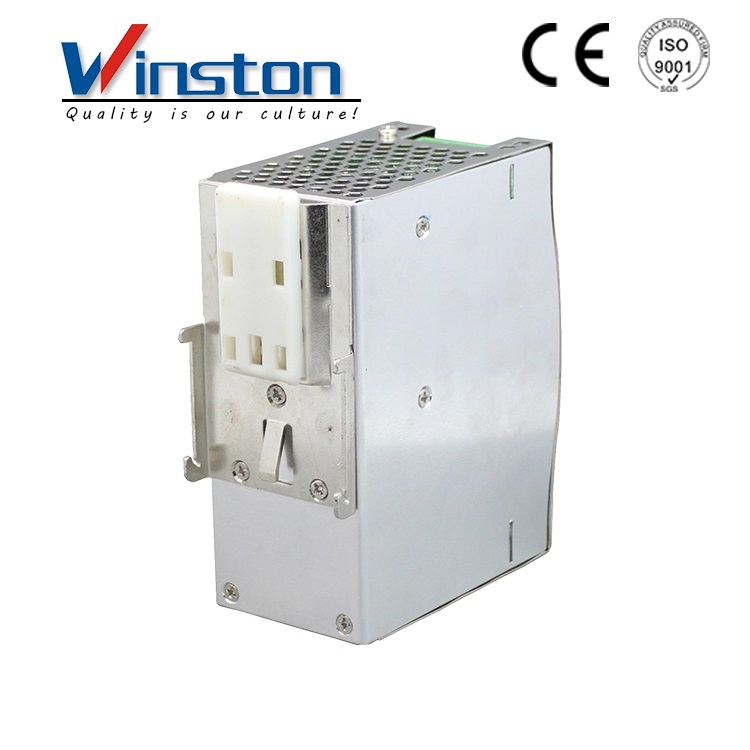

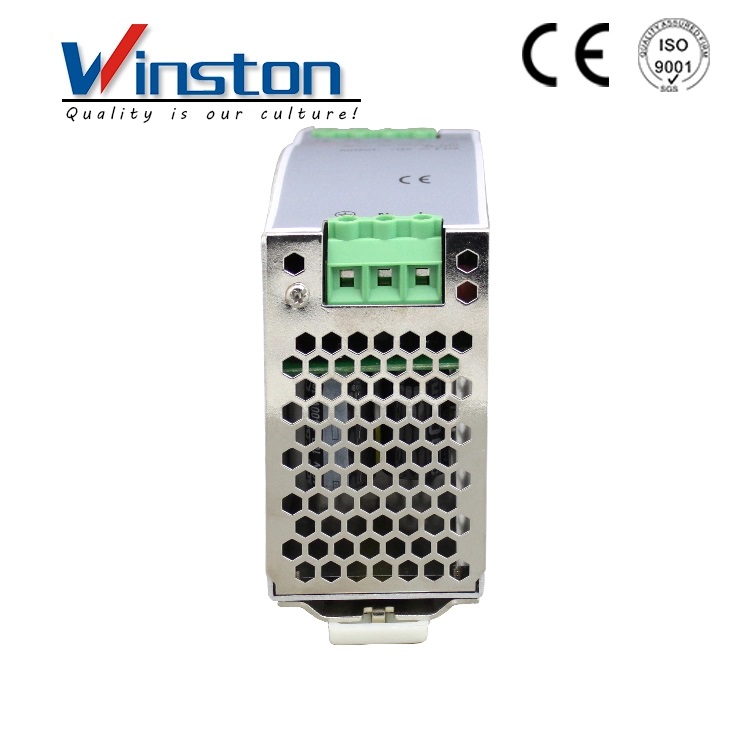

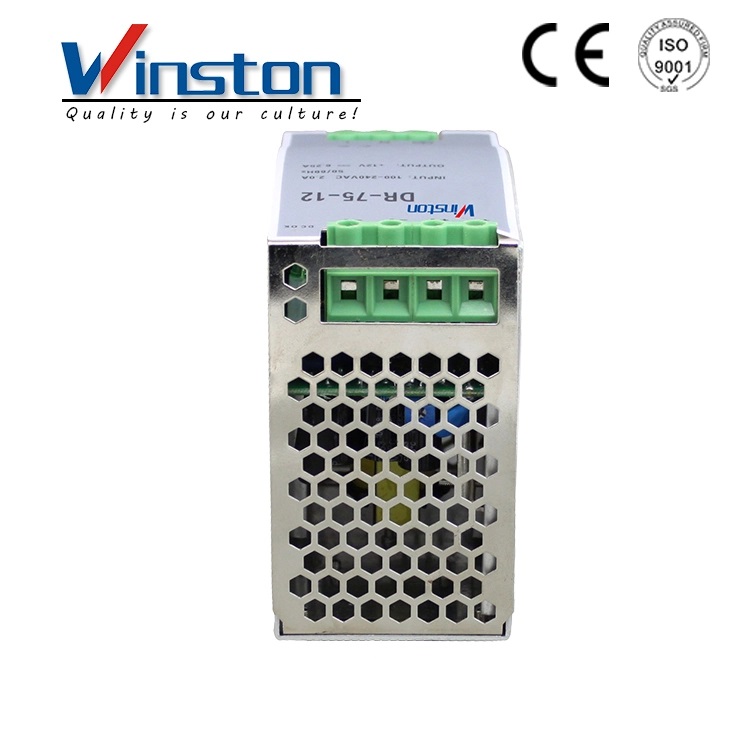

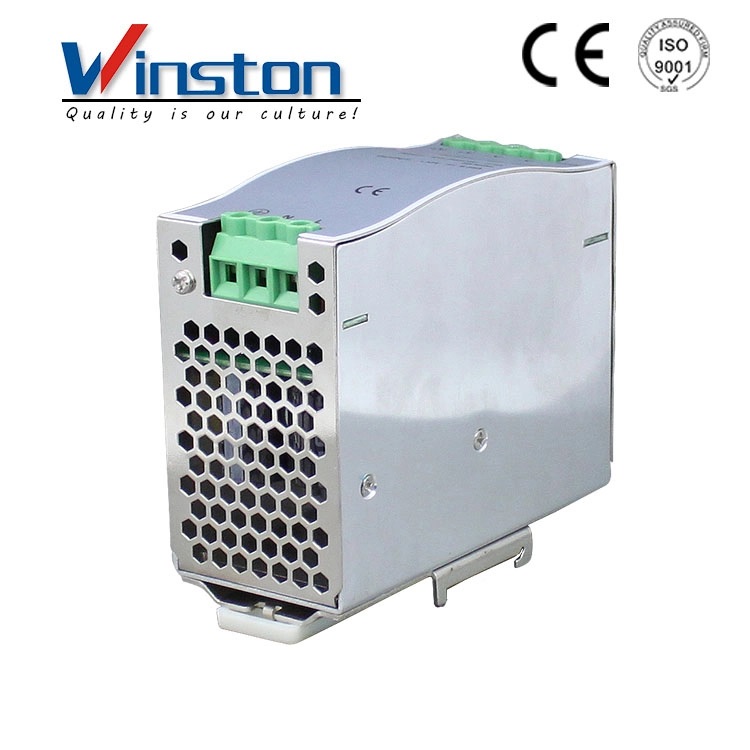

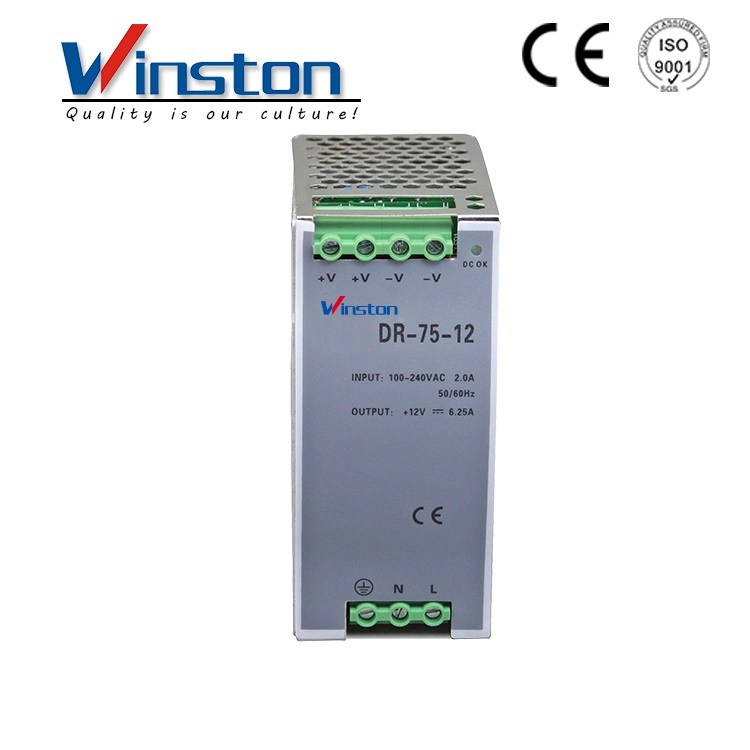

DR-75 Din rail switching power supply
DR-75 Din rail switching power supply
DR-75 Din rail switching power supply
DR-75 Din rail switching power supply
DR-75 Din rail switching power supply
DR-75 Din rail switching power supply

DR-75 Din rail switching power supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote
DR-75 Din rail switching power supply
DR-75 Din rail switching power supply
DR-75 Din rail switching power supply
DR-75 Din rail switching power supply
DR-75 Din rail switching power supply
DR-75 Din rail switching power supply

Features

·universal AC input

·Small volume,low weight,high efficiency

·Protections:short circuit/over load/over voltage

·cooling by free air convectio

·can be installed on DIN rail: TS-35/7.5or TS-35/15

·LED indicator for power on

·100% full load burn-in test

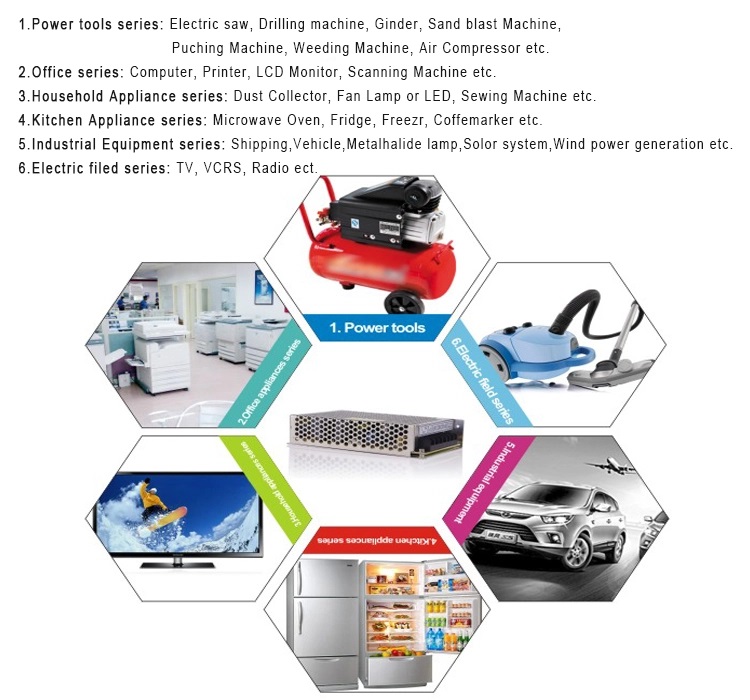

Application







         Model




         DR-75-12




         DR-75-24




         DR-75-48
















         output




         DC voltage




         12V




         24V




         48V




         Voltage tolerance




         ±2%




         ±1%




         ±1%




         Rated current




         6.3A




         3.2A




         1.6A




         Current range




         0~6.3A




         0~3.2A




         0~1.6A




         Rated power




         76W




         76.8W




         76.8W




         Ripple&noise




         100mvp-p




         150mvp-p




         200mvp-p




         DCvoltage ADJ.range




         -9%~+10%




         ±10%




         ±10%












         input




         Voltage range




         90~264VAC,127~373VDC




         frequency




         47~63HZ




         AC current




         1.6A/110VAC,0.96A/220VAC




         efficiency




         79%




         81%




         84%




         Inrush current




         Cold start current 20A/115VAC,40A/230VAC




         Leakage current




         < 1mA/240VAC








         protection




         Over load




         Rated output power110%~150% start over load protection




         protection type :rated current limit ,auto-recovery after fault condition is removed




         over voltage




         15.6~17.8V




         30.6~33.2V




         54.8~56.6V




         protection type:cutoff output,recovery after restart power




         environment




         Working temp,humidity




         -20℃~+60℃,20%~90%RH




         Storagetemp,humidity




         -40℃~+85℃,10%~95%RH non-condensing




         Withstand vibration




         10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes




         safety




         Withstand voltage




         I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC




         Isolated resistance




         I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC




         Fitstandard




         Safety standard




         Fit UL1012




         EMC standard




         EN55022,CLASSA




         others

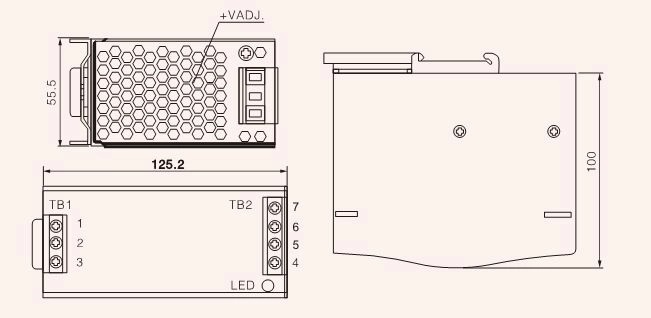

         Dimension




         55.5*125.2*100mm (L*W*H)




         Weight/packing




         0.6kg/20pcs/13kg/0.046m³/1.64CUFT




         note




         1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.



         2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.



         3. Tolerance : includes set up tolerance, line regulation and load regulation.
