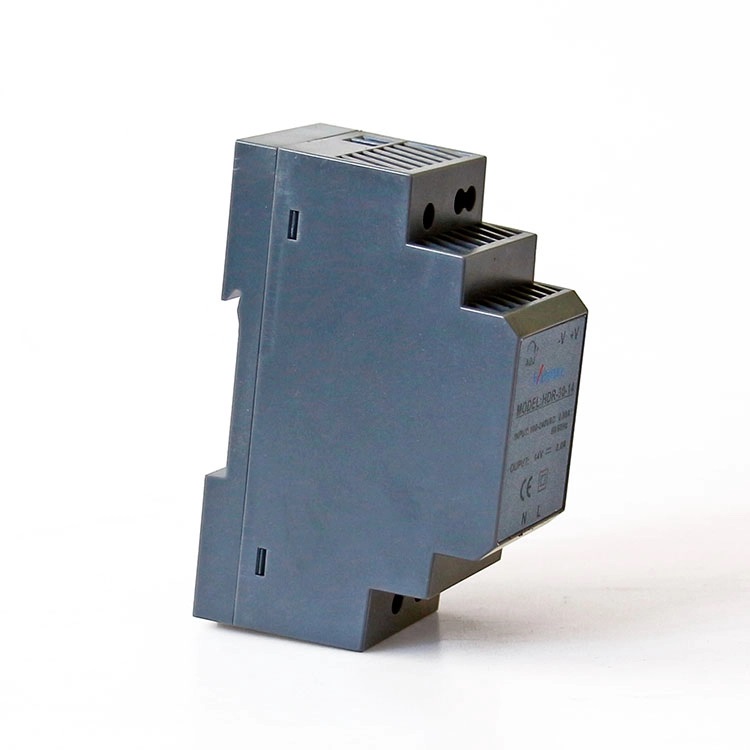

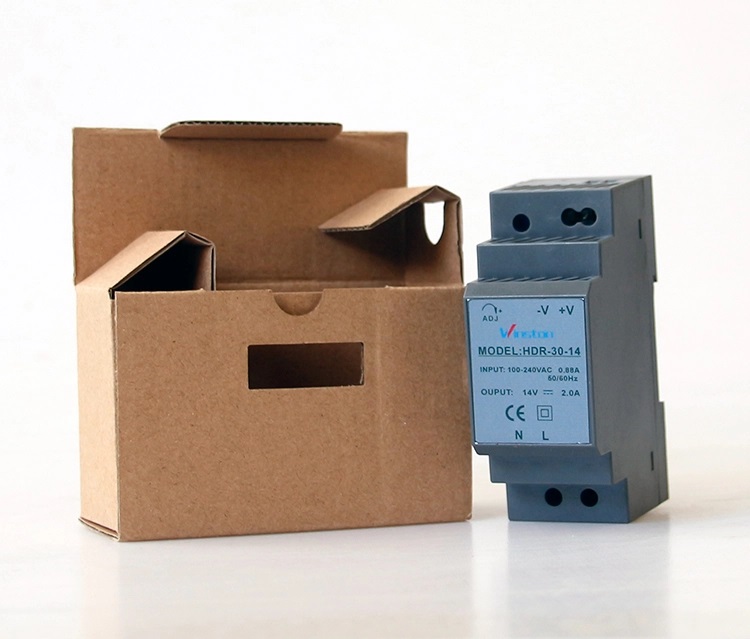

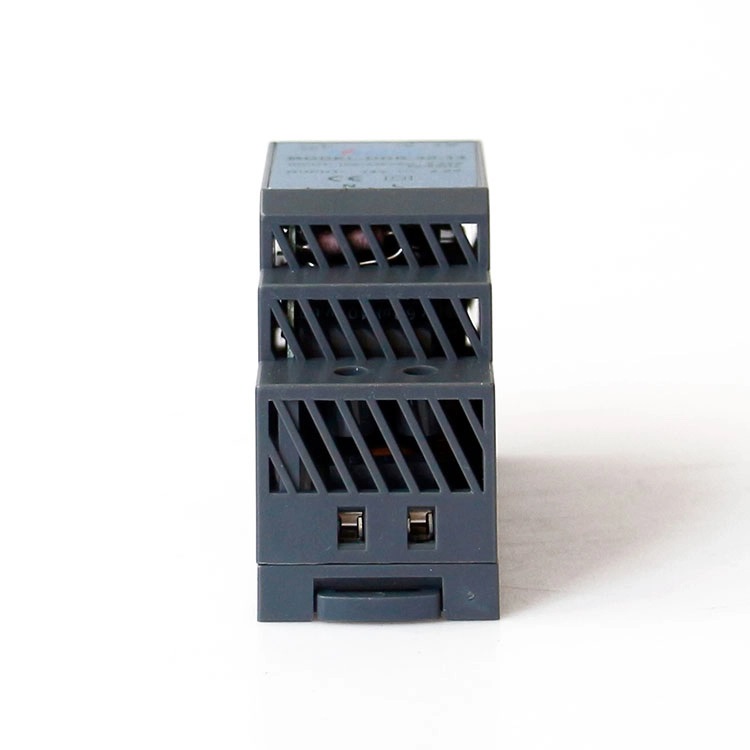

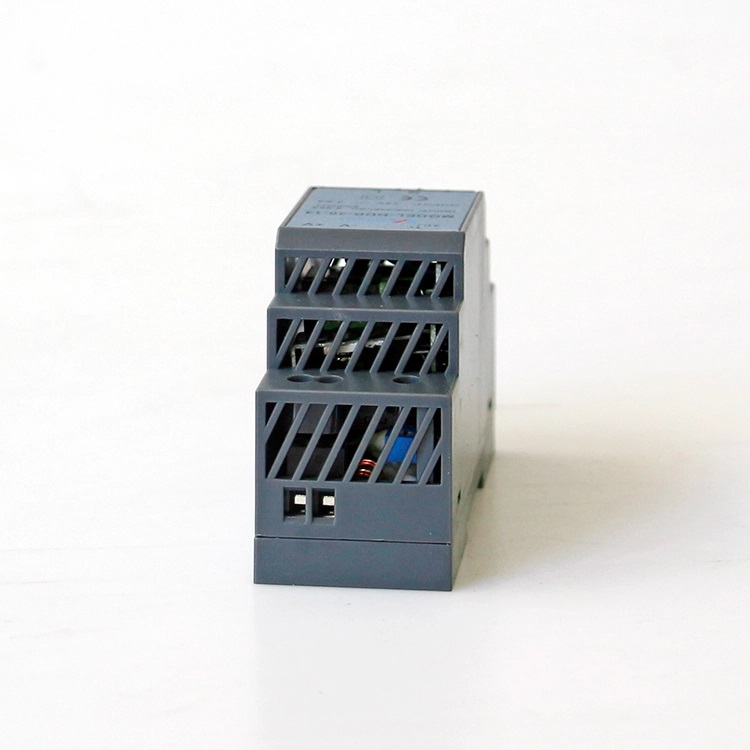

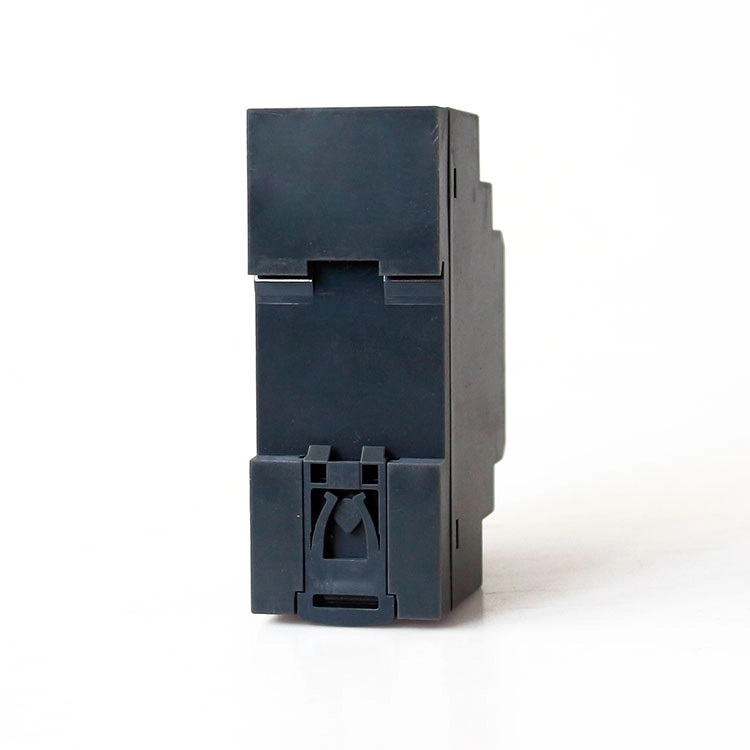

HDR-15 Ultra Slim Step Shape DIN Rail Power supply

SPECIFICATIONS

OUTPUT

Model

HDR-15-5

HDR15-12

HDR-15-15

HDR-15-24

DC Voltage

5V

12V

15V

24V

Rated Current

2.4A

1.25A

1A

0.63A

Current Range

0-2.4A

0-1.25A

0-1A

0-0.63A

Rated Power

12W

15W

15W

15.2W

Ripple & Noise

80mVp-p

120mVp-p

120mVp-p

150mVp-p

Voltage Adj. Range

4.75-5.5V

10.8-13.2V

13.5-16.5V

21.6-26.4V

Voltage Tolerance

±2%

±1%

±1%

±1%

Line regulation

±1%

±1%

±1%

±1%

Load regulation

±1%

±1%

±1%

±1%

Setup, Rise, Hold Up Time

1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load  70ms/230VAC          16ms/115VAC at full load

INPUT

Voltage Range

85 ~ 264VAC          120 ~ 370VDC

AC Current

0.88A/115VAC          0.48A/230VAC

Efficiency

77%

84%

83.5%

85%

Inrush Current

COLD START 35A/115VAC          65A/230VAC

PROTECTION

Over Load

105%~160% rated output power

Protection type: Constant current limiting, recovers automatically after fault condition is removed

Over Voltage

5.75-6.75V

13.8-16.2V

17.25-20.25V

27.6-32.4V

Protection type: Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

Working Temp., Humidity

-20℃~+60℃; 20%~90% RH non-condensing

Storage Temp., Humidity

-40℃~+85℃; 10%~95%RH

Temp. Coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes, Mounting: Compliance to IE60068-2-6

SAFETY

Withstand Voltage

I/P-O/P: 3KVAC

Isolation Resistance

I/P-O/P: 100M Ohms / 500VDC/ 25℃/ 70%RH

STANDARD

EMC Standard

Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-2,EN61204-3, heavy industry level, criteria A

OTHERS

Dimension

93*18*56mm

Weight

0.1Kg

Packing

140pcs/15KG/0.92CUFT
