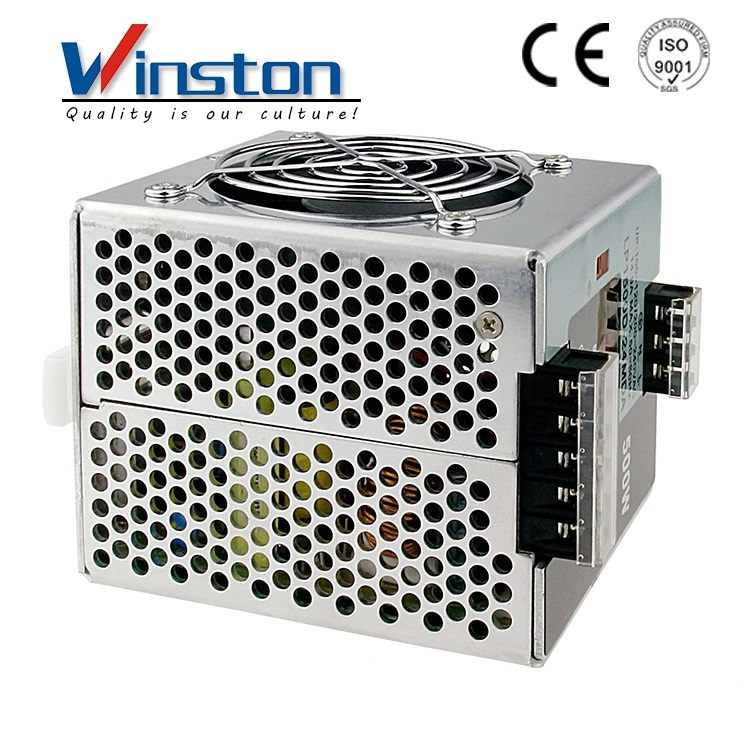

LP1500 500W Output Voltage Display Din-rail Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

1.Features

1.Protection charateristic:short circuit/overload/overvoltage

2.High efficiency,hihg reliability and long serive life.

3.Natural air cooling

4.100% full load burning test

5.LED power indication

2. Specification

Model Specification		LP1500D-12MDA	LP1500D-24MDA	LP1500D-48MDA
Output	DC Output Voltage	12V	24V	48V
	Output Voltage tolerance	± 1%	± 1%	± 1%
	Rated Output Current	37.5A	20.8A	10.4A
	Output Current Range	0-37.5A	0-20.8A	0-10.4A
	DC Output Power	450W	499.2W	499.2W
	Tripple and Noise	120mVp-p	240mVp-p	300mVp-p
	Adjustable Range for DC Voltage	10.5-14V	20.5-26.5V	44.5-51V
Input	AC Input Voltage Range	85-132VAC/176-264VAC selected by switch or 248-373VDC 47~63Hz;
	AC input current	9.5A/115VAC 4.8A/230VAC
	Efficiency	83%	85%	86%
	AC Inrush Current	Cold-Start Current: 15A/115V, 30A/230V
	Leakage Current	<2mA/240VAC
Protection charateristic	Overload Protection	110%-150%
		Protection mode: cut off output and reset automatically
	Over Voltage Protection	14-18V	27-30V	51-54V
		Protection mode: cut off output and reset automatically
Environment	Work Temperature Humidity	-10℃~+50℃ , 20%~90%RH
	Storage Temperature Humidity	`-20℃~+85℃, 10%~95%RH
	Shock resistance	10~500Hz, 2G 10min,/1cycle,duration:60min each shaft
Safety	Voltage withstand capacity	Input-output:2KVAC Input-earth:1.5KVAC Output-earth:0.5KVAC
	Insulation resistance	Input-output, Input-earth ,Output-earth:100M Ohms/500VDC
Executive Stantand	Safety Standards	CE
	EMC Standards	Design refer to FCC part 15J Conduction Class B
Others	Weight	0.8KGS
	Package	18pcs/ctn 44.526.531
	size	10090110(LWH)
