SCN-1500 1500W AC DC Single Output Power Supply

OUTPUT

Model

SCN-1500-12

SCN-1500-24

SCN-1500-27

SCN-1500-48

DC Voltage

12V

24V

27V

48V

Rated Current

125A

100A

62.5A

32A

Current Range

0-125A

0-100A

0-62.5A

0-32A

Rated Power

1500W

1500W

1500W

1536W

Ripple & Noise

120mVp-p

150mVp-p

240mVp-p

480mVp-p

Voltage Adj. Range

10.8~13.2V

 20~26.4V

 24~30V

 41~56V

Voltage Tolerance

±5%

±5%

±5%

±5%

Inlet Stability

±1%

±1%

±1%

±0.5%

Load Stability

±1%

±1%

±1%

±0.5%

Setup,Rise,Hold UpTime

800ms, 50ms, 16ms at full load

INPUT

Voltage Range

200～260 VAC47～63 Hz；290～370VDC

AC Current

12A/230VAC

Efficiency

83%

84%

85%

87%

Inrush Current

120A/230V

Leakage Current

<3.5mA/240VAC

PROTECTION

Over Load

110%~135% Type:plusing hiccup shutdown Reset:auto recovery

Over Temp.

RTH>=80 output shutdown

ENVIRONMENT

Working Temp., Humidity

-10℃~+60℃(Refer to output derating curve),20%~90%RH

Storage Temp., Humidity

-20℃~+85℃, 10%~95%RH

Temp.Coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min,/1cycle,Period for 60min,Each X.Y.X axes

SAFETY

Withstand Voltage

I/P-O/P: 1.5KVAC   I/P-FG: 1.5KVAC   O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to UL1950,CSA22.2,IEC60950

EMC Standard

Design refer to FCC Part 15 Class A

OTHERS

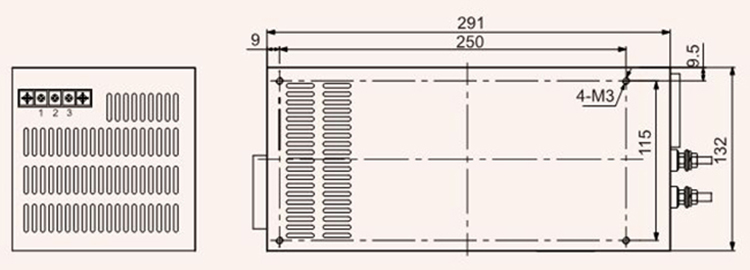

Dimension

291*132*132mm(L*W*H)

Weight

5.0Kg

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
