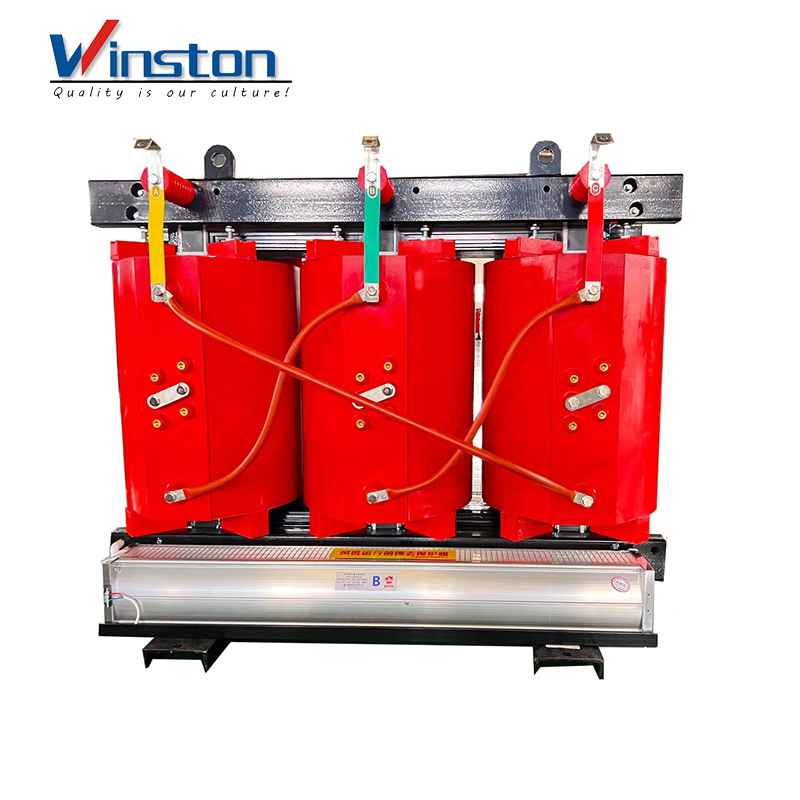

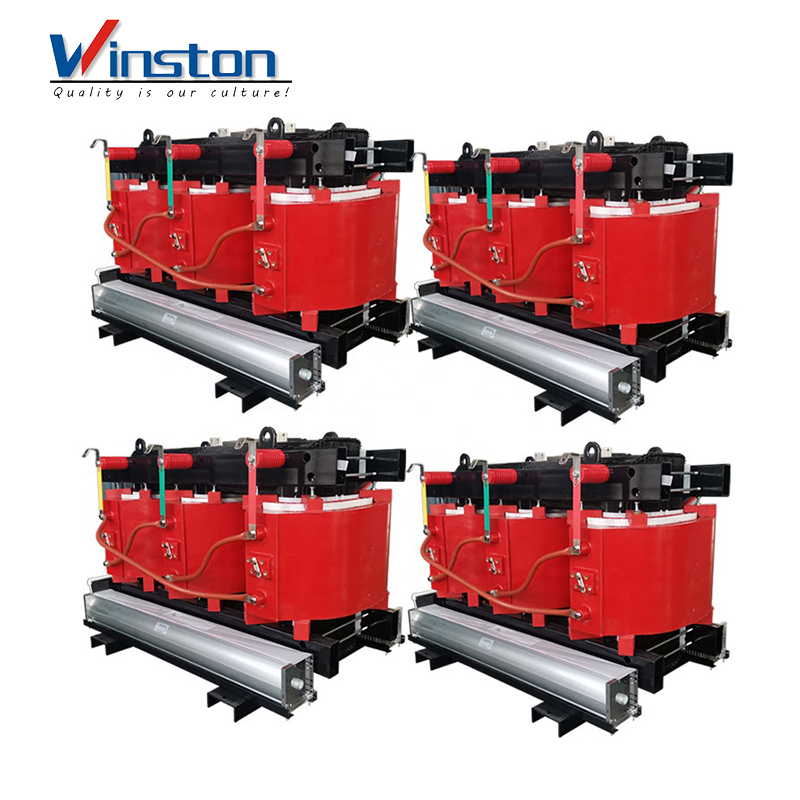

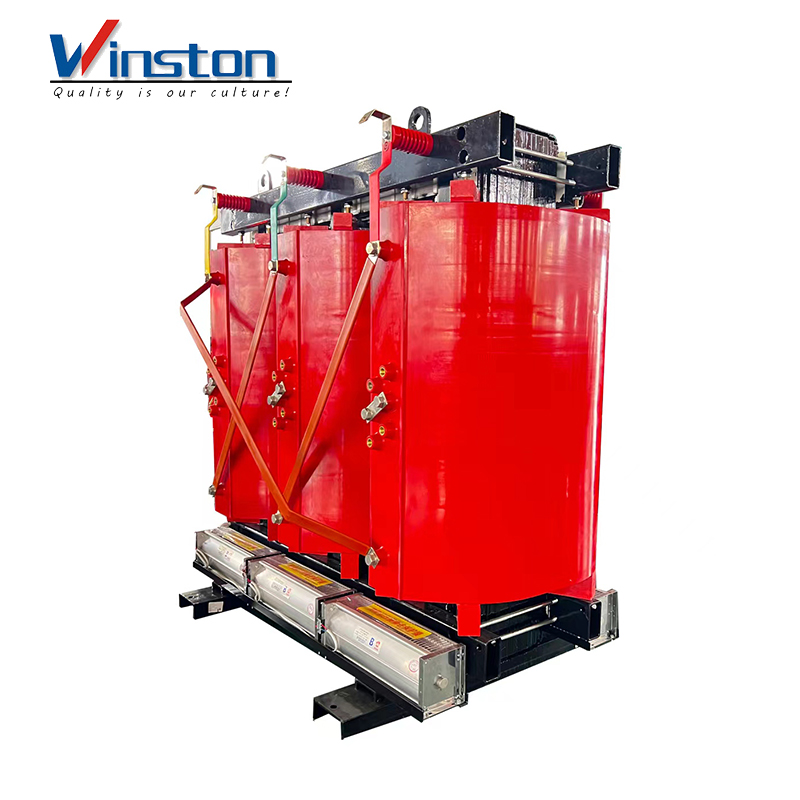

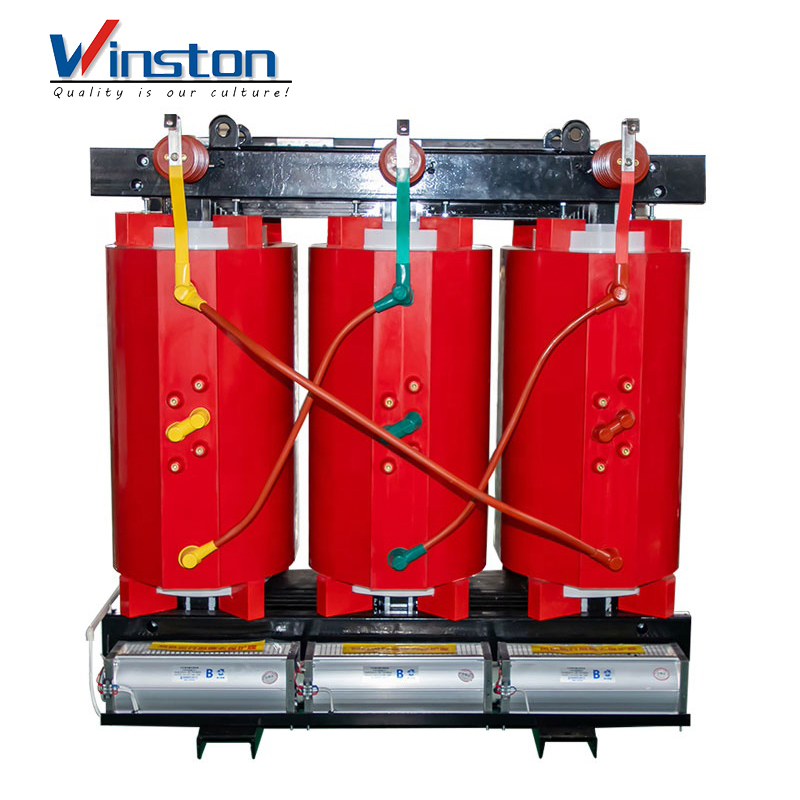

10KV 11, 12, 13 three-phase resin insulation Energy-saving dry-type power transformer

         This product is our company introduction of foreign advanced technology, independently developed SCB13 series resin insulation dry-type transformer, resin hybrid materials with foreign advanced mixing method and vacuum thin film degassing two techniques, the mixing evenly and eliminate bubbles in the mixture. Products with. only a very low partial discharge, can be controlled in the following 5PC. The high tension coil and the low tension coil are under vacuum and pressure casting, resin insulation not only has the sealing performance of the all inclusive, and a layer of interturn impregnation. The casting body has a dense solidification structure, which is resistant to natural explosion and non polluted environment. The Rs485 serial interface is connected with the computer, which can monitor and control the. Due to our company dry-type transformer has the abovel characteristics. So it is widely used in power transmission and distribution system, such as hotels, airports, highrise buildings, commercial centers, residential quarters and other important places, and subway, metallurgy, power plants, ships, offshore drilling platforms, such as bad environment field.

Product characteristics

1. product no-load loss than the SCB11 type products to reduce more than 20%, energy saving effect is excellent, running economy, maintenance free.

2. the level of product noise than the current professional standard low 10-15 dB or more.

3. small size of the transformer installation is convenient, maintenance free, low maintenance costs.

4. advanced lamination mode and vibration reduction measures, low noise.

5. the overall high pressure casting, low voltage foil type structure ampere turn distribution of good, strong anti short circuit ability.

6. the temperature is uniform, the hot spot temperature is low, the reliability is high.

Ordering instruction

Please provide the following parameters when ordering:

1. Product model

2. Rated capacity

3. Voltage combination

4. Adjustment range

5. Frequency

6. Connection symbd

7. Short-circuit impedance

8. Please note the technical requirements for the products having the special requirements
