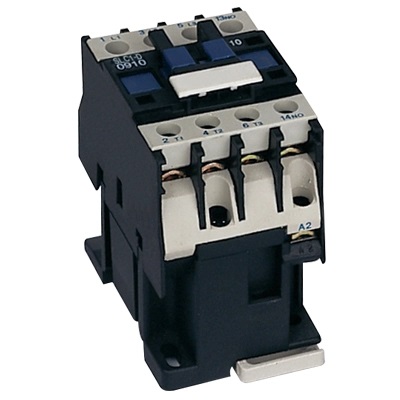

NLC1-N Series AC Contactor

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Application

NLC1-N series AC contactor ( simplified as contactor ln the following ) is suitable for using in the circuits upto the ratedvoltage 660VAC 50Hz or 60Hz, rated current 95A, for making and breaking and frequent starting,controlling the AC motor.Combined with the auxiliary contact group, air delayer, machine interlo-cking device etc, it is combined into the delay contactor, mechanical interlocking contactor, star-delta starter, with the thermal relay, it is combined into the electromagnetic starter.

Specification

type	rated insulation voltage (V)	Conventional thermal current (A)	Rated operation current (A)	Control power (kw)					No.of contacts	Remark
type	rated insulation voltage (V)	Conventional thermal current (A)	Rated operation current (A)	220V	380V	415V	440V	660V	No.of contacts	Remark
NLC1- 0910/0901		20	9	2.2	4	4	4	5.5	3P+NO 3P+NC	Installation method 1. with two screws 2. 35mm din rail
NLC1- 1210/1201		20	12	3	5.5	5.5	5.5	7.5	3P+NO 3P+NC
NLC1- 1810/1801		32	18	4	7.5	9	9	9	3P+NO 3P+NC
NLC1- 2510/ 2501	660	40	25	5.5	11	11	11	15	3P+NO 3P+NC
NLC1- 3210/3201		50	32	7.5	15	15	15	18.5	3P+NO 3P+NC
NLC1-4011		60	40	11	18.5	22	22	30	3P+NO +NC	Installation method 1. with three screws 2. 35mm din rail
NLC1-5011		80	50	15	22	25	30	33
NLC1-6511		80	65	18.5	30	37	37	37
NLC1-8011		125	80	22	37	45	45	45
NLC1-9511		125	95	25	45	45	45	45
