7specifications of HGL load isolation switch from 63A to 3150A: Basic model of modularized design, possesses three poles, and fourpoles (3 poles+on and off neutral pole). It is suitable for electric isolation. Switches over 1000A are only suitable for electric isolation.
Mark winkow is set in the front side to indicate the on andoff state of the contact.
Rear observation window can be provided according to the demand to observe directy the on and off state of the contact,
For window pattern ,refer to the back operational load isolation switch, HGL-160A-1600A/H.
Two sets of auxiliary contacts can be assembled according to demand.
The electric cable insulating cover can be assembled.
HGL Z2-160A/4JF11-380V In 125AChange over load isolation switch, inlet, AC rated voltage 380v, Anventional thermal current 160A;rate current 125A,4 poles, operation outside the board, auxiliary NO+NC

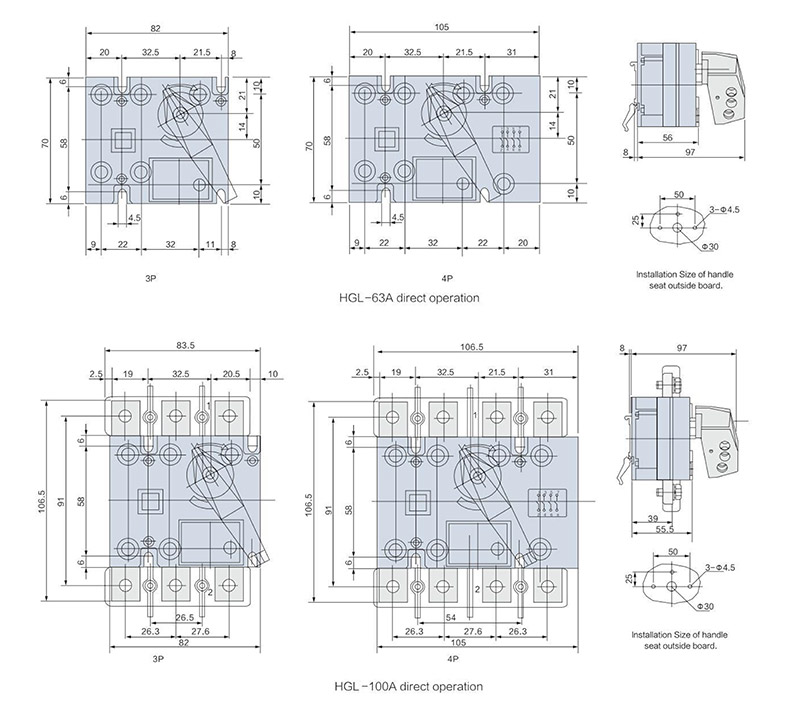

63A-100A is suitable for the making and breaking of electrical isolation circuit or electric insulation.
63A-100A possesses three poles, and four poles (3 poles+on and off neutral pole).
Two sets of auxiliary contacts can be assembled according to demand.
Side operation, operation outside, the board can be assemble according to demand.

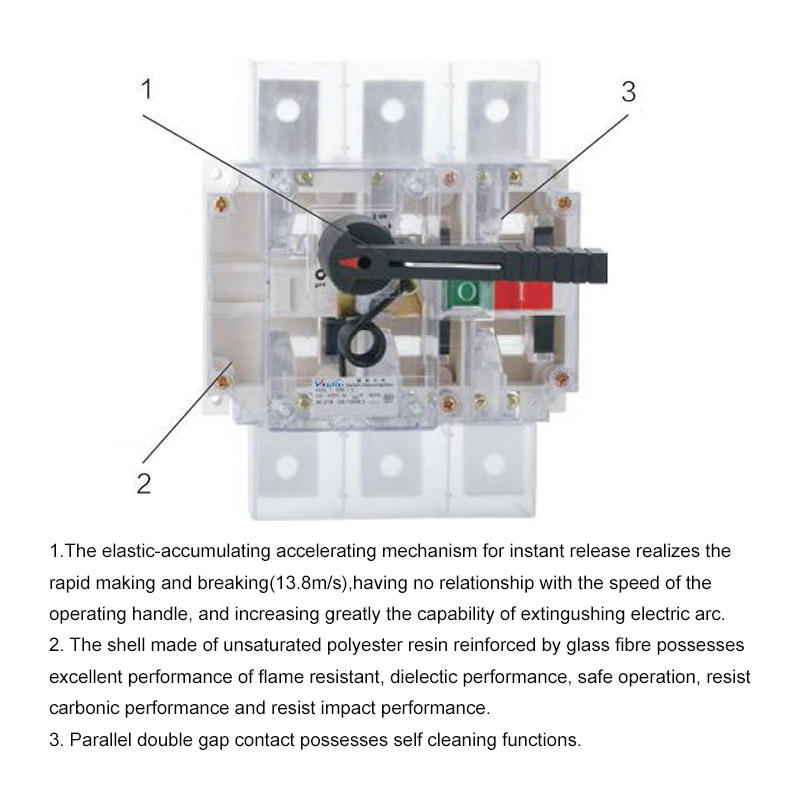

1.The elastic-accumulating accelerating mechanism for instant release realizes the rapid making and breaking(13.8m/s),having nc relationship with the speed of the operating handle, and increasing greatly the capability of extingushing electric arc
2. The shell made of unsaturated polyester resin reinforced by glass fibre possesses excellent performance of flame resistant, dielectic performance, safe operation, resist carbonic performance and resist impact performance.

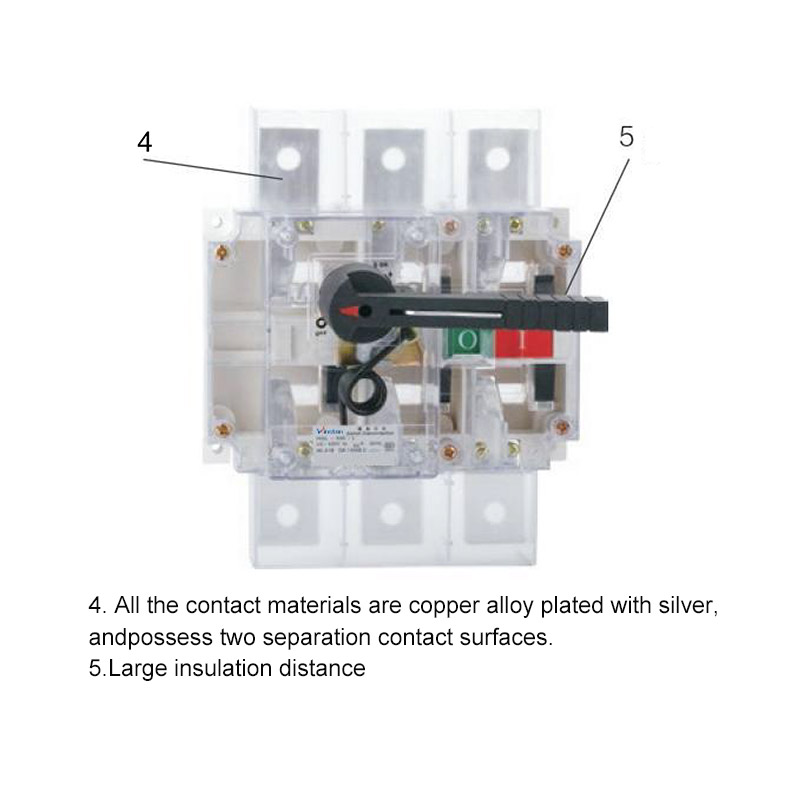

3. Parallel double gap contact possesses self cleaning functions.4. All the contact materials are copper alloy plated with silver, and possess two separation contact surfaces.

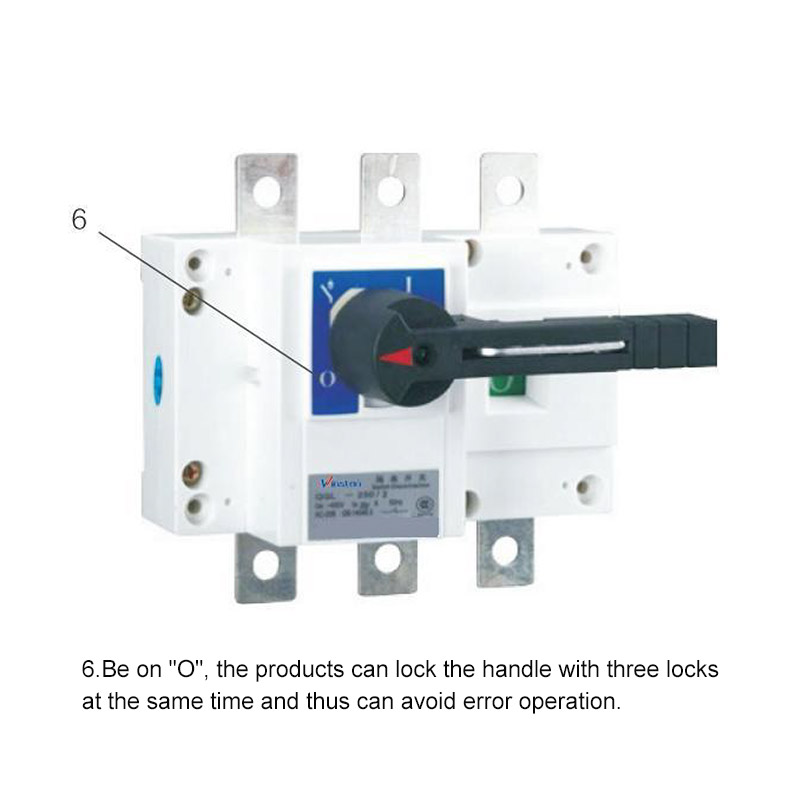

5.Large insulation distance6.Be on "O", the products can lock the handle with three locks at the same time and thus can avoid error operation.
HGL series load isolation switch mainly suitable for AC 50Hz. rated voltage to 660V. DC rated voltage up to 440V, rated current up to 3150A, The switch is used in the infrequent making and breaking circuit.

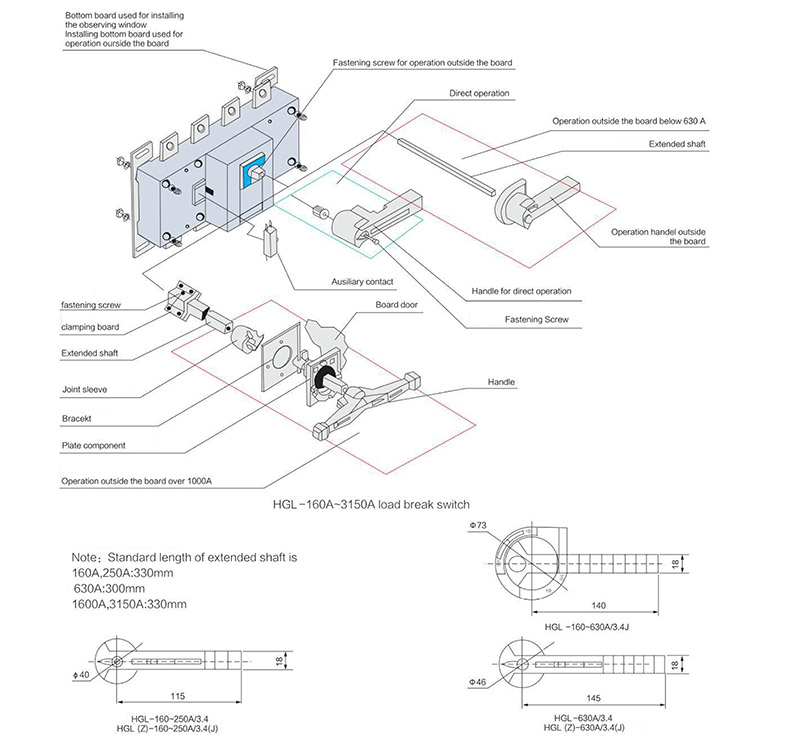

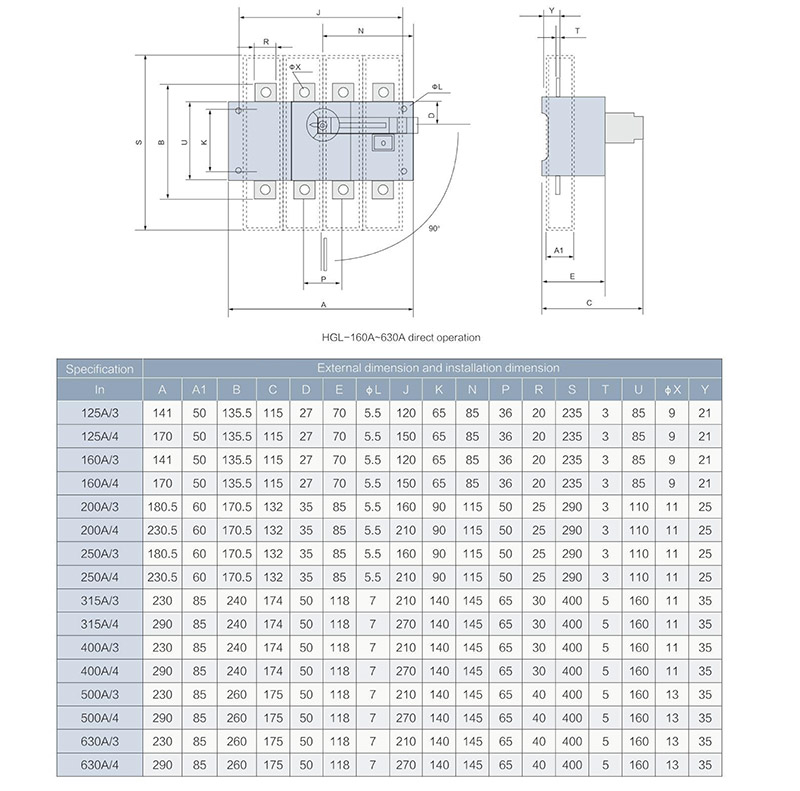

Operation
Direct operation: The handie is instaled directly inthe middle of the switch. Operation outside the board:
The handle is installed outside the door off distrbuting board.
|

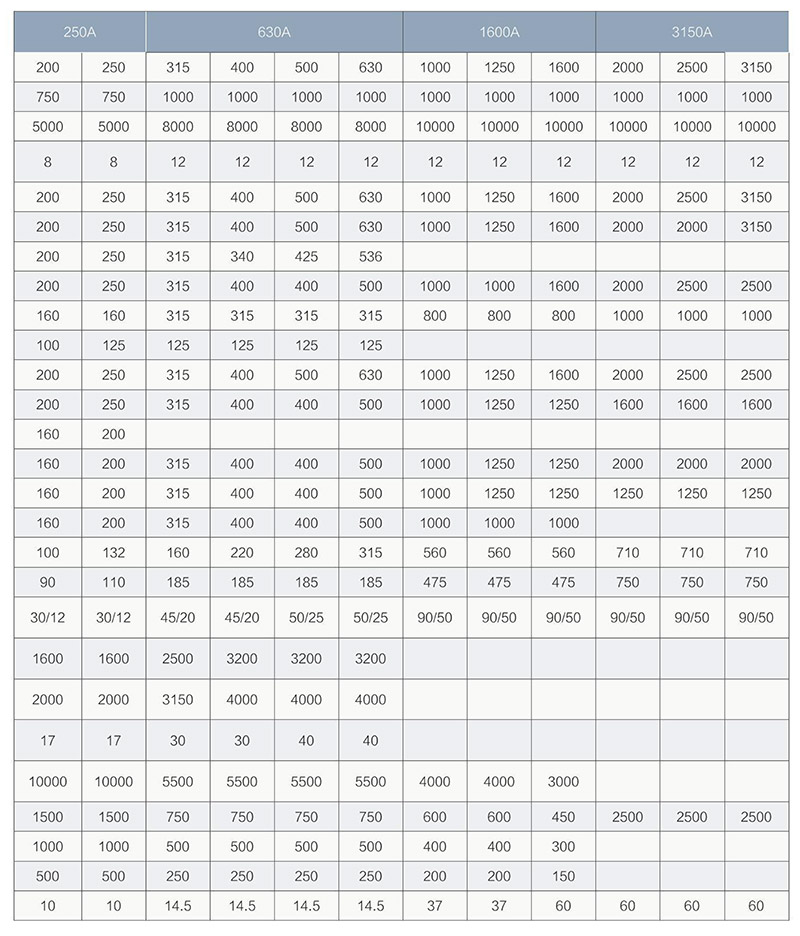

Conventional thermal current Ith ( A) |
63A |
100A |
160A |
|||||
|
Rated current in (A) |
40 |
63 |
80 |
100 |
125 |
160 |
||
|
Rated impulse withstand voltage Ui (V) |
750 |
750 |
750 |
750 |
750 |
750 |
||
|
Dielectric strength (V) |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
||
|
Rated surge-resistant voltage Uimp KV (installed category IV) |
6 |
6 |
6 |
6 |
8 |
8 |
||
|
Rated Working current le (A) |
380V |
AC-21 |
40 |
63 |
80 |
100 |
125 |
160 |
|
AC-22 |
40 |
63 |
80 |
100 |
125 |
160 |
||
|
AC-23 |
40 |
63 |
80 |
100 |
125 |
160 |
||
|
660V |
AC-21 |
40 |
50 |
80 |
80 |
125 |
160 |
|
|
AC-22 |
32 |
32 |
50 |
50 |
125 |
160 |
||
|
AC-23 |
25 |
25 |
40 |
40 |
80 |
80 |
||
|
220V |
DC-21 |
40 |
63 |
80 |
100 |
125 |
160 |
|
|
DC-22 |
40 |
63 |
80 |
80 |
125 |
160 |
||
|
DC-23 |
40 |
63 |
63 |
63 |
125 |
125 |
||
|
440V |
DC-21 |
100 |
125 |
|||||
|
DC-22 |
100 |
125 |
||||||
|
DC-23 |
100 |
125 |
||||||
|
Motor power P (KW) |
380V |
18.5 |
25 |
40 |
40 |
63 |
80 |
|
|
660V |
22 |
22 |
33 |
33 |
75 |
75 |
||
|
Rated short-time withstand current Icw(KA Rms)0.1s/1.0s |
10/5 |
10/5 |
10/5 |
10/5 |
20/10 |
20/10 |
||
|
Rated breaking capability Icn (Arms) Ac23 380V |
320 |
504 |
640 |
800 |
1000 |
1000 |
||
|
Rated making capability Icm(ARms)AC23 380V |
400 |
630 |
800 |
1000 |
1250 |
1250 |
||
|
Rated short-current making capability Icm (KA peak value) |
7.5 |
7.5 |
10 |
10 |
12 |
12 |
||
|
Mechanical durability(number of cyclic operation) |
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |
||
|
Electric durability (number of cyclic operation ) Ue=660V, Rated current le |
COS φ=0.95 AC21 |
1700 |
1700 |
1700 |
1700 |
1500 |
1500 |
|
|
COS φ=0.95 AC22 |
100 |
100 |
100 |
100 |
1000 |
1000 |
||
|
COS φ=0.95 AC23 |
500 |
500 |
500 |
500 |
500 |
500 |
||
|
Moment of operation(Nm) |
1.2 |
1.2 |
1.2 |
1.2 |
6.5 |
6.5 |
||
