● Strong metal outer shell, swing arm max. ± 95°
● Stainless steel idler wheel, punch and spring
● Selective M18x1.5 cable gland

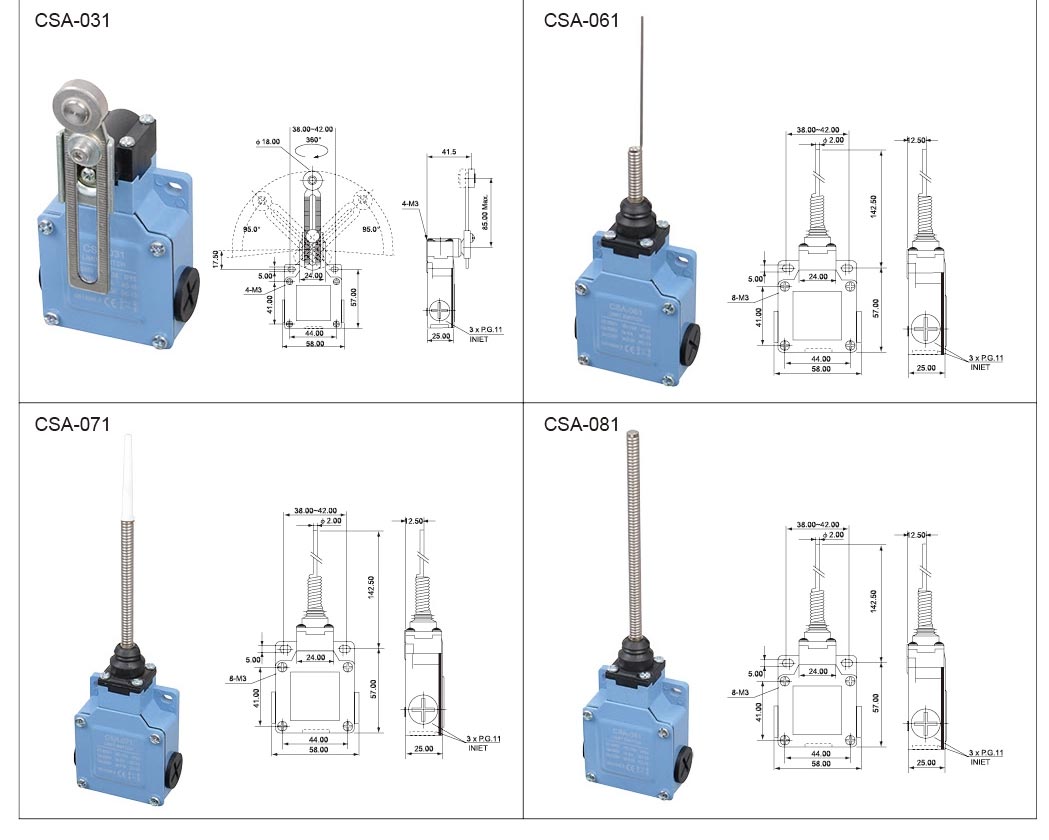

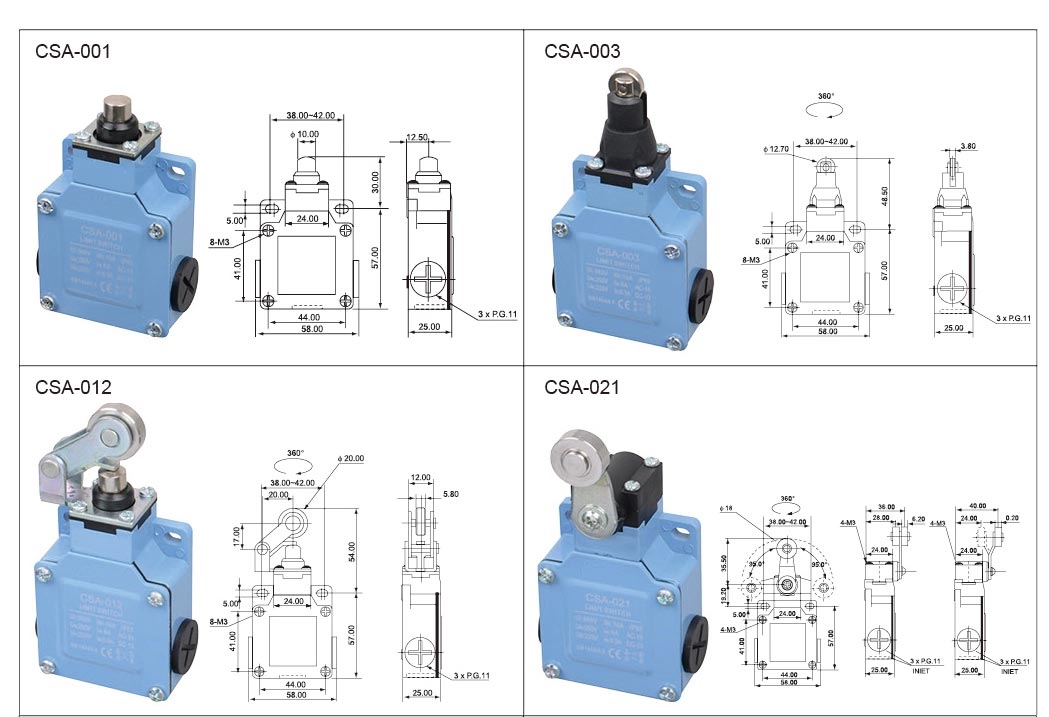

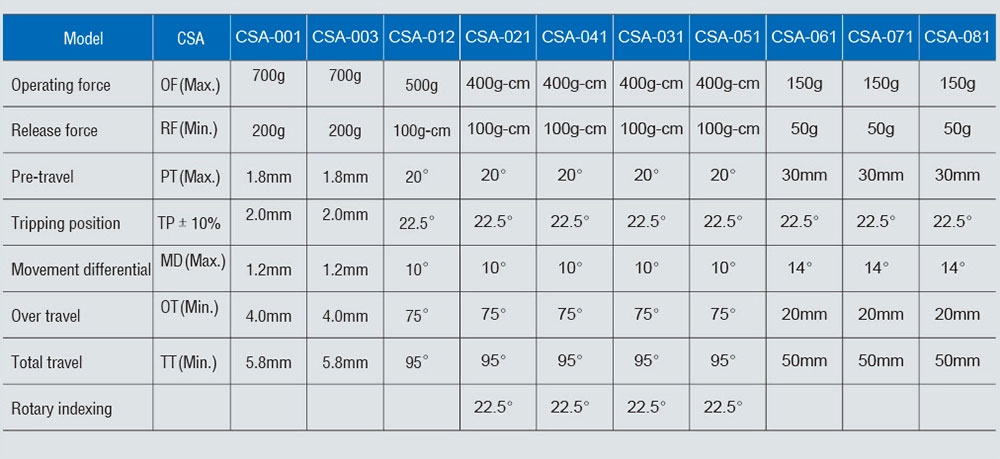

Characteristics/Application
| Double Break Mechanism | INO+INC Force Break snap action |
| Rated Voltage /Current | 10(4)A, 125, 250VAC / 6(2)A, 380VAC For inductance Load, Cosф =0.4 |
| Contact Resistance | 25mΩ max. (initial value) |
| Insultation Resistance | 100mΩ min. (at 500VDC) |
| Dielectric Strength | 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity |
| 1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
| 1500VAC, 50/60 Hz for 1 minute between each terminal and ground | |
| Electrical Life | 500,000 at 10A 250VAC Resistive |
| Mechanical Life | 10, 000, 000 operations min. (under rated conditions) |
| Operating Speed | 5mm/s to 0.5m/s |
| Degree of Protection | IP66 |
| Ambient Temperature Rised | Max 30℃ over ambient temperature at rated voltage/current |
| Conformed Standards | Cenelec EN 50041, EN 50047, IEC 337-1, VDE 0660 |
| Operating Temperature | -5℃~+65℃ (with no icing) |
| Storage Temperature | -5℃~+65℃ (with no icing) |
| Ambient Operating Humdity | 95% RH Maх. |
| Shock Resistance | Mechanical durable: 1000m/s² min. |
| Malfunction: 300m/s² min. | |
| Vibration Frequency | Malfunction: 10 to 55Hz, 1.5mm double amplitude |
| Terminal Screw Torsional Force | 6-8 kgf-cm |
| Other Screw Torsional Force | Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm |
| Bare Wire Diameter | ф2 Mаxф |
| Cable Diameter | 12 Max(IP 65 if use cable ф 8-9) |
| Note: Product with spring, its usable range of operating part is within one third of the whole spring length from the front end of spring. | |
