HL-5000 Limit Switch

Name: HL-5000 Limit Switch
Brand: Winston
SKU: 02196
Rating: 4.1 (1148 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

HL参数_01

Contact form

HL参数_02

Characteristics/Application

Protection degree		IP65
life	Mechanical	ten million times above
life	Electrical	More than 500,000 times
operation speed		5mm-0.5m/s
operating frequency	Mechanical	120times/m
	Electrical	30times/m
Insulation resistance		100ΜΩ DC500V
contact resistance		Less than 25MΩ(Initial value)
with stand voltage(50/60Hz 1min)	Between the terminals of same pole	AC 1,000V
	Between charged metal parts	AC 1,500V
	Between non-charged metal parts of each terminal	AC 1.500V10-55Hz (amplitude 1.5mm)
vibration	misoperation	AC 250V 5A
load		AC 380V 5A DC 125V 5A DC 250V 5A

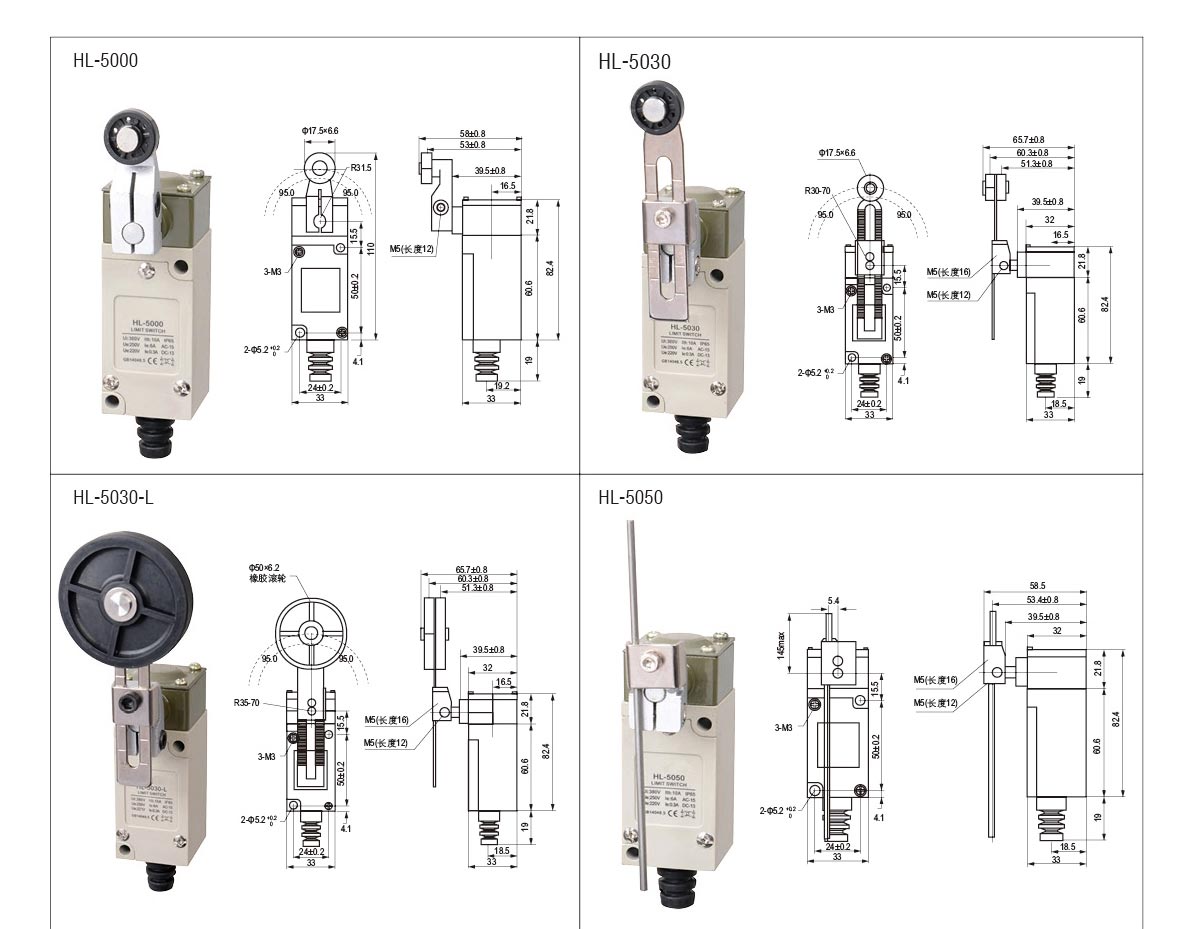

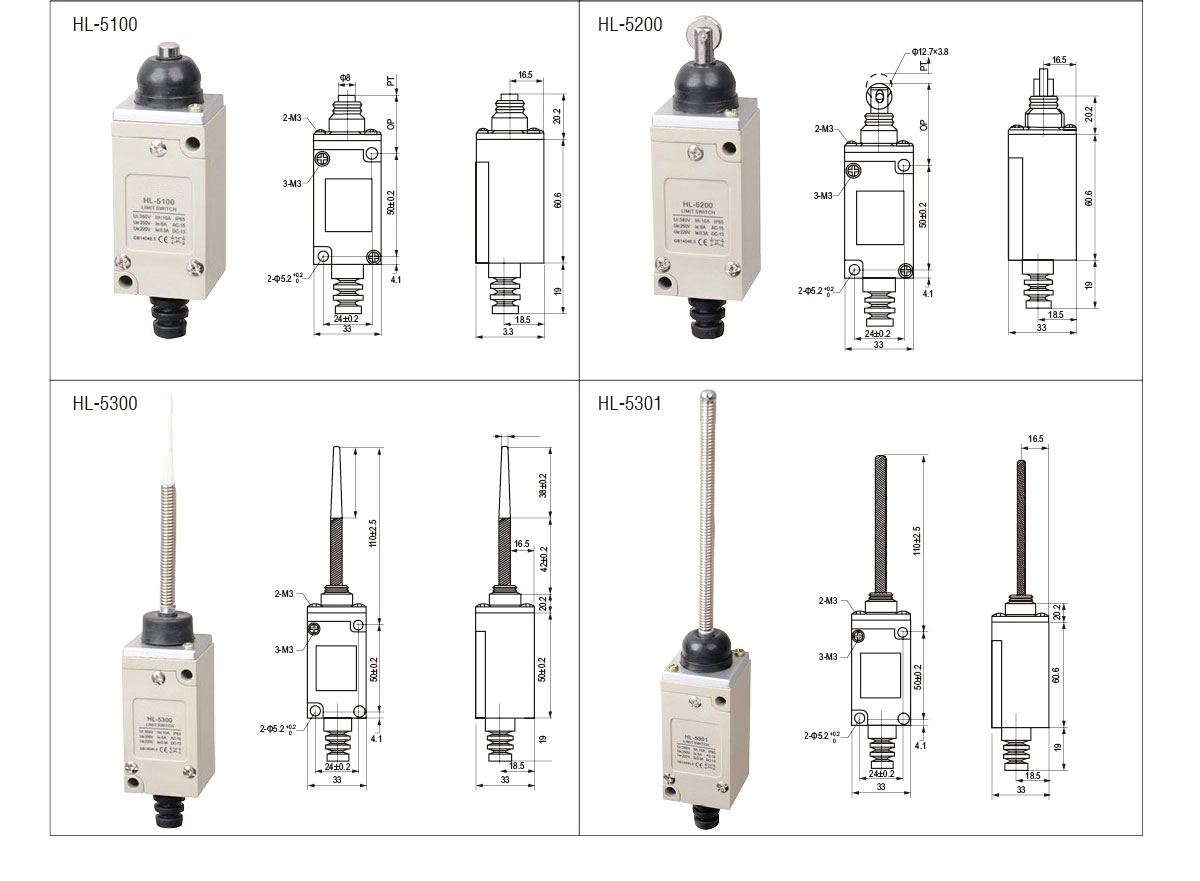

HL Dimension
