Name: LRS-100 100W Single Output Switching Power Supply
Brand: Winston
SKU: 02077
Rating: 4.1 (1089 reviews)

LRS-100 100W Single Output Switching Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

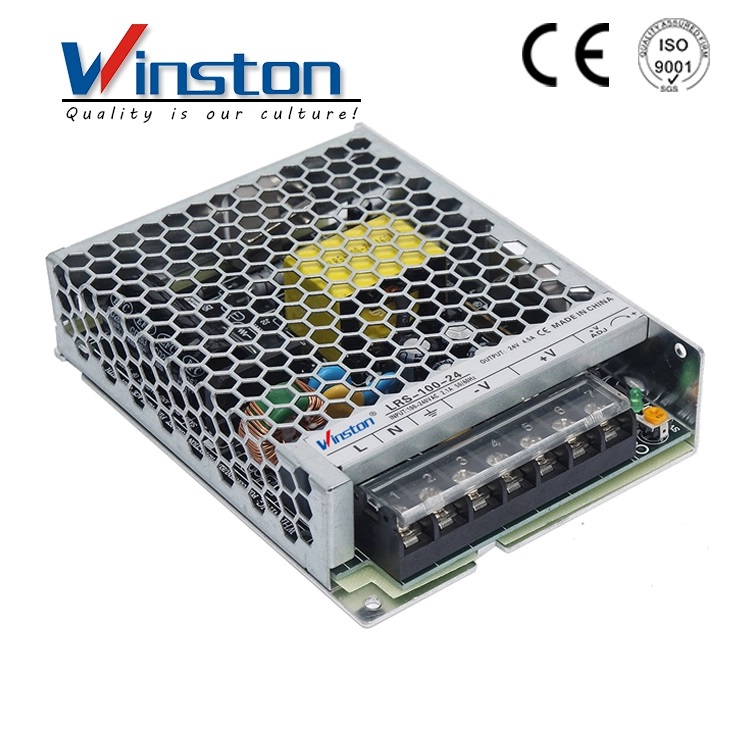

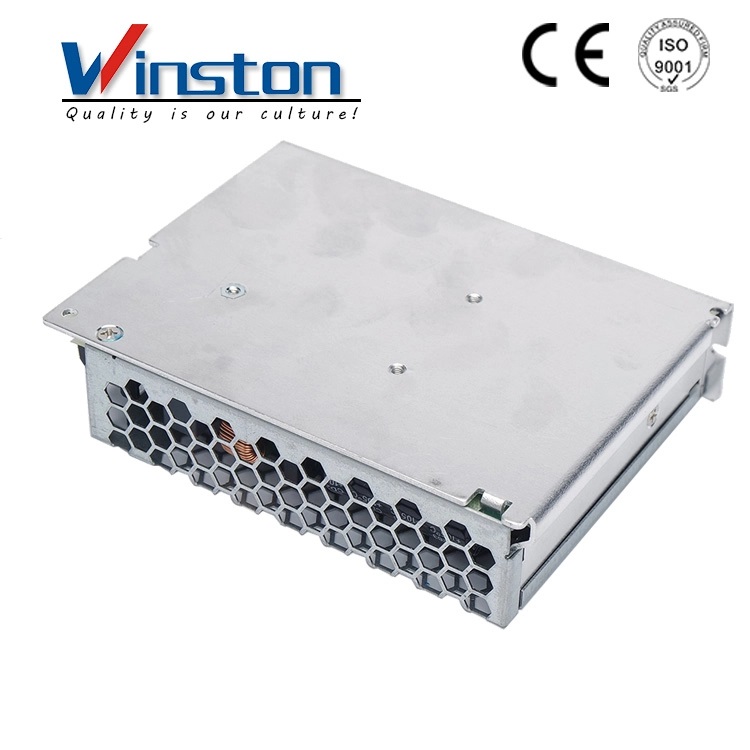

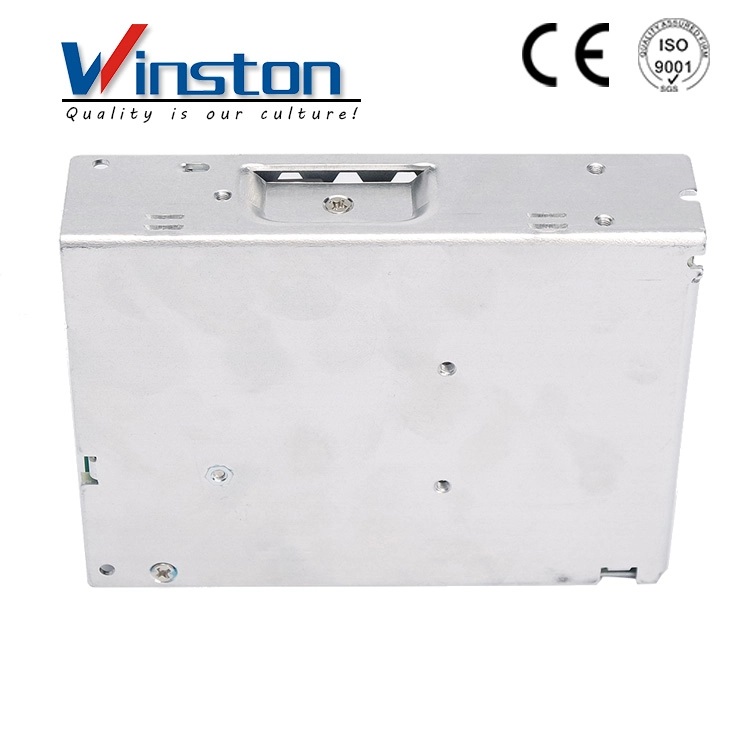

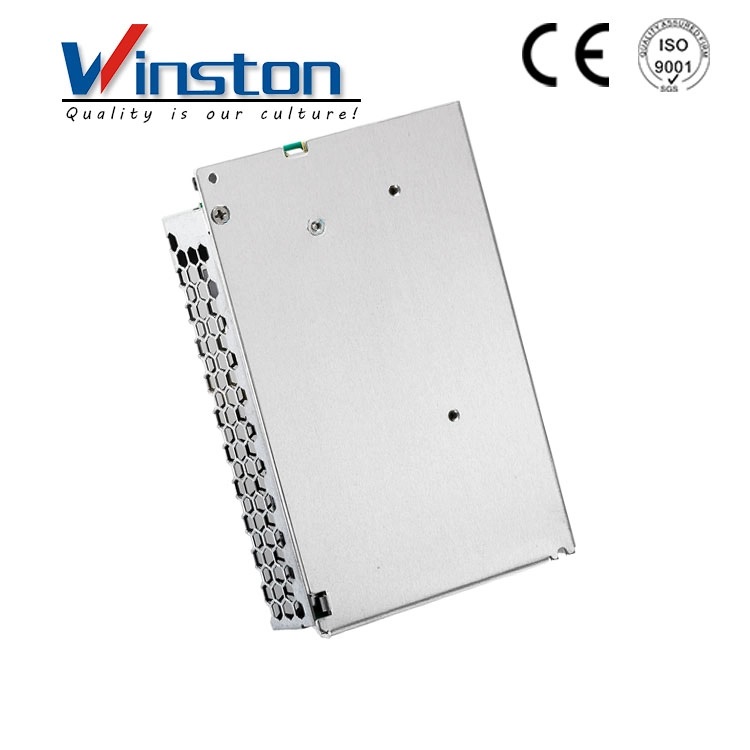

The LRS-100 is a power supply unit produced by Winston, with dimensions of 129mm x 97mm x 30mm (length x width x height).

This power supply features a low-profile design of only 30mm, making it suitable for applications that require an ultra-thin form factor.

It accepts a universal input range of 85~264VAC and offers output voltages of 3.3V, 5V, 12V, 15V, 24V, 36V, and 48V,

making it suitable for a variety of industrial automation machinery, control systems, and household appliances.

Universal AC input/ full range
Withstand 300VAC surge input for 5 second
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
High operating temperature up to 70℃
High efficiency, long life and high reliability
2 years warranty

MODEL		LRS-100-5	LRS-100-12	LRS-100-15	LRS-100-24	LRS-100-36	LRS-100-48
OUTPUT	DC Voltage	5V	12V	15V	24V	36V	48V
	Rated Current	18A	8.5A	7A	4.5A	2.8A	2.3A
	Current Range	0~18A	0~8.5A	0~7A	0~4.5A	0~2.8A	0~2.3A
	Rated Power	90W	102W	105W	108W	100.8W	110.4W
	Ripple &Noise	100mVp-p	120mVp-p	120mVp-p	150mVp-p	200mVp-p	200mVp-p
	Voltange ADJ. Range	4.5~5.5V	10.2~13.8V	13.5~18V	21.6~28.8V	32.4~39.6V	43.2~52.8V
	Voltage Tolerance	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	Load Regulation	±1.0%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	Setup, Rise Time	500ms, 30ms/230VAC 500ms,30ms/115VAC at full load
	Hold Up Time	55ms/230VAC 10ms/115VAC at full load
INPUT	Voltage Range	85~264VAC,120~373VDC (Withstand 300VAC surge for 5sec. Without damage)
	Frequency Range	47 ~ 63Hz
	Efficiency	86%	88%	88.5%	90%	90.5%	91%
	AC Current	1.9A/115VAC 1.2A/230VAC
	Inrush Current	CCOLD START 50A/230VAC
	Leakage Current	<0.75mA/ 240VAC
Protection	Over Load	110 ~ 150% rated output power
	Over Load	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	Over Voltage	5.75~6.75V	13.8~16.2V	18.75~21.75V	28.8~33.6V	41.4~48.6V	55.2~64.8V
	Over Voltage	Protection type : Shut down o/p voltage, re-power on to recover
Environment	Working Temp.	-20 ~ +70ºC (Refer to "Derating Curve")
	Working Humidity	20 ~ 90% RH non-condensing
	Storage Temp.,Humidity	40 ~ +85 , 10 ~ 95% RH
	Temp.Coefficien	±0.03%/ºC (0~50ºC)
	Vibration	10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Safety & EMC	Safety Standards	EN60950-1, EN60335-1, EN61558-1 2 16 approved
	Withstand voltage	I/P-O/P:3.0KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
	Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25ºC/70% RH
Others	MTBF	720.6K hrs min. MIL-HDBK-217F (25ºC)
	Dimension	1299730mm (LWH)
	Packing	0.35kg
