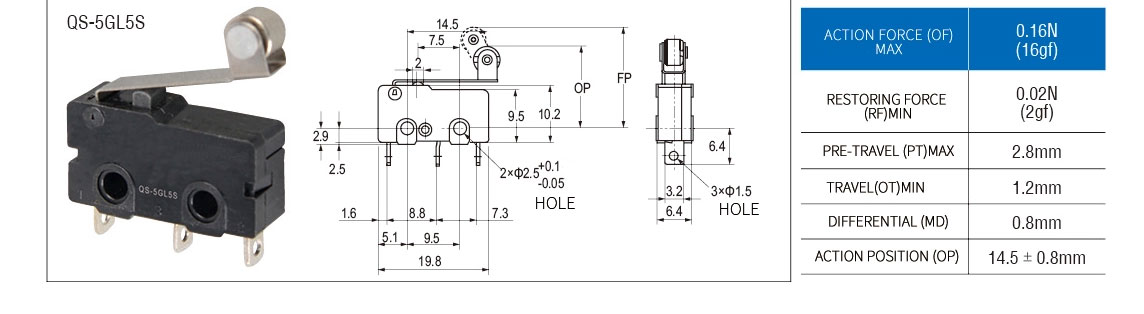

High precision micro switch
Features
High accuracy of action position, small contact spacing, fast and sensitive action. PT moves small.
Long life
More than 100,000 cycles (5A 250VAC)
| item | sort | 5A. 3A/125, 250VAC |
| Allowable operating speed | 0.1mm-1m/ SEC (push-button type) | |
| Allowable on-off frequency | Mechanical 400 times/min Electrical 30 times/min | |
| Insulation resistance | More than 100MΩ (detected with DC500V insulation resistance meter) | |
| Contact resistance | Within 30mΩ at the beginning | |
| Breakdown resistance voltage | Non-connecting terminals | AC1000V 50/60Hz 1 minute |
| Between non-live metal parts and terminals | AC1500V 50/60Hz 1 minute | |
| Between grounding and terminals | ||
| Vibration resistance | maloperation | Double amplitude 1.5mm 10-50Hz |
| Impact resistance | durability | 1000m/s |
| maloperation | 300m/s | |
| Life span | Electrical life | More than 100,000 times |
| Mechanical life | More than 10,000,000 times | |
| Ambient temperature and humidity | -25-+80℃ (non-freezing), 35%-85%RH | |
