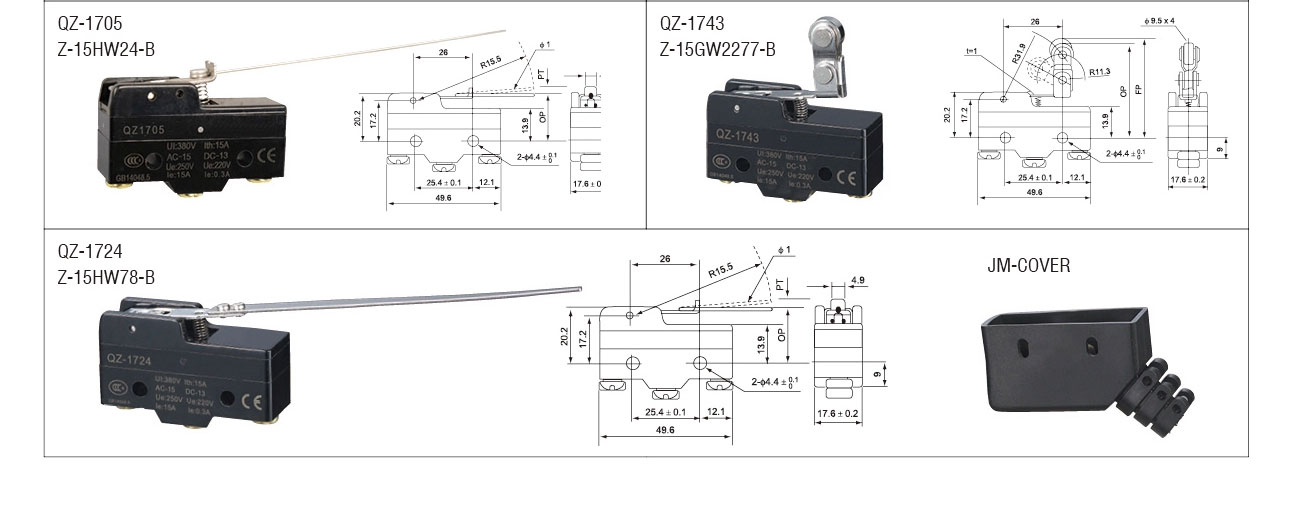

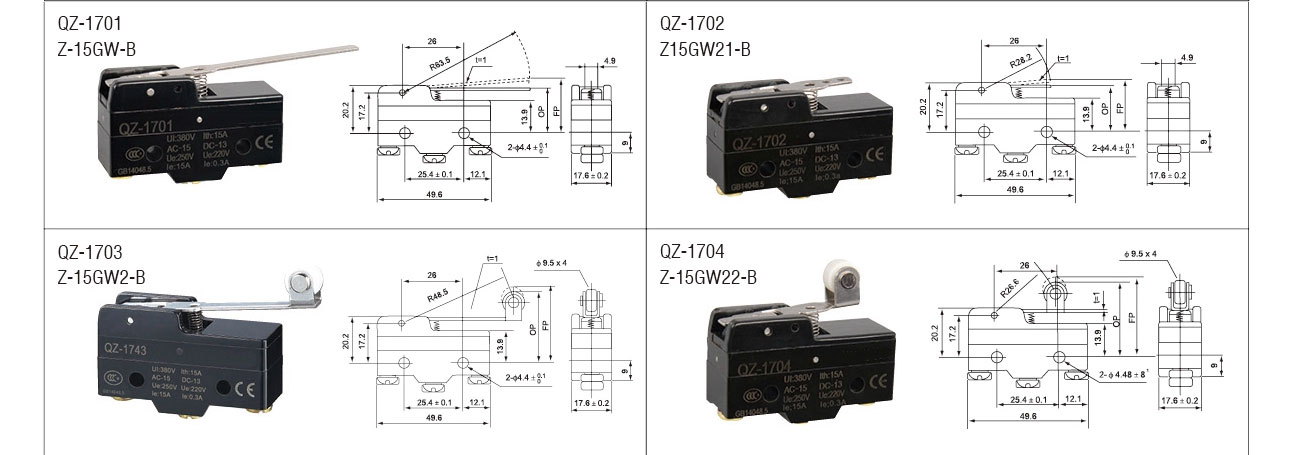

● Virous of actuators, action position is adjustable(such as QZ1701)
● High switch on and off capacity(15A)
● High accuracy
● Wide range of operation speed
Characteristics Of Contact Module
| Rated operating characteristics | Inductive load:~AC15,B300 (Ue-240V, le=1.5A)--DC-13,R300 (Ue-250V,le-0.1A)Resistive load： 250V, 5A |
| Rated insulation voltage | Ui-500V. class of pollution is 3. comply with IEC 60947-1Ui-300V, comply with UL508, CSA C22-2n° 14 |
| Insulation sistance | 100ΜΩ above (megohmmeter of 500VDC) |
| Operating equency | Mechanical: maximum 240 times/min.; electrical: maximum 20 times/min. |
| Electrical life | 500,000 times |
| Contact resistance | Less than 15MΩ (initial value) |
Environmental Characteristics
| Normatrve reference | Product | IEC60947-5-1, EN60947-5-1,UL508, CSAC22-2N°14 |
| Components | IEC60204-1, EN60204-1 | |
| Ambient temperature | Operation | -25-+80℃ |
| Storage | -40-+80℃ | |
| Vibration resistance | Comply with IEC60068-2-6 | 10-55Hz complex amplitude 1.5mm. misoperationwithin 1ms (in state of FP, TTP) |
| Shock resistance | Maximum 300m/s. misoperation within 1ms (in state of FP, TTP) | |
| Mechanical life | 10,000,000 times | |
| Operation speed | Comply with IEC60068-2-27 | 0.01mm to 1m/sec (lock plug type) |
