Name: NES-15 15W Single Output Switching Power Supply
Brand: Winston
SKU: 02081
Rating: 4.9 (1091 reviews)

NES-15 15W Single Output Switching Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Product Description

Packaging & Shipping

FAQ

1.Product Description

1) High Efficiency, High Reliability, Low Cost
2) AC Input Range:85-264VAC 120-370VDC
3) 100% Full Load Burn-In Test
4) Protections: Short Circuit / Over Load/Over Voltage
5) LED Indicator For Power On
6) Cooling By Free Air Convection
7) Approvals: CE RoHS
8) 2 Year Warranty.

2.Specification:

MODEL	NES-15-5	NES-15-12	NES-15-15	NES-15-24	NES-15-48
DC VOLTAGE	5V	12V	15V	24V	48V
CURRENT RANGE	0 ~ 3A	0 ~ 1.3A	0 ~ 1A	0 ~ 0.7A	0-0.35A
EFFICIENCY	79%	81%	81%	85%	82%
WAVE & NOISE	150mVp-p	150mVp-p	150mVp-p	200mVp-p	240mVp-p
ADJUSTABLE RANGE FOR DC VO;LTAGE	±10%	±10%	±10%	±10%	±10%
LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
LOAD REGULATION	±1%	±0.5%	±0.5%	±0.5%	±0.5%
SETUP, RISE HOLD UP TIME	800ms, 60ms,50ms/230VAC at full load
VOLTAGE RANGE	85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE	47 ~ 63Hz
IMPACT CURRENT	Cold start current 45A/230VAC
WORKING TEMP.	-10 ~ +50ºC
OVERLOAD PROTECTION	105%-160% cut off the output , automatic recovery
OVER VOLTAGE PROTECTION	115%-135%shunt down O/P voltage,re-power on to recover
WITHSTAND VOLTAGE	I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:500VDC/100M Ohms
DIMENSION	785128mm (LWH)
PACKING	0.18Kg; 120pcs/22Kg

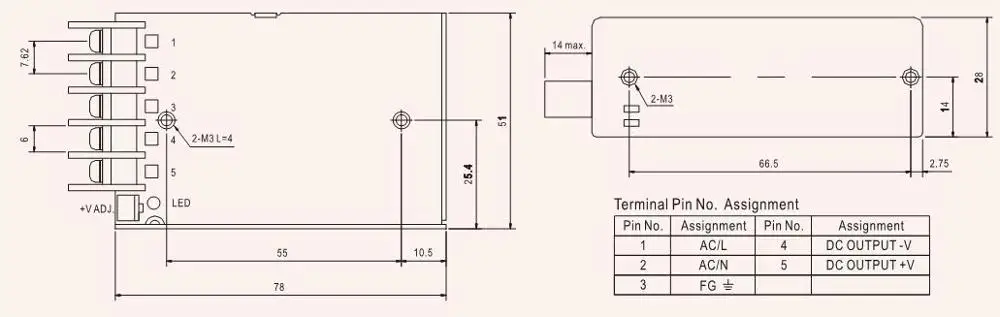

Dimension

The NES-15 is a power supply unit from Winston Electric, featuring a low-profile design suitable for applications with limited space. It supports a universal AC input range and offers various output voltages. The NES series, including the NES-15, is known for its efficiency, long life, and high reliability, with a 2-year warranty .

Key specifications of the NES-15 typically include:

Universal input range adaptable through a switch.
Protection features against short circuit, over-load, and over-voltage.
Natural convection cooling.
LED power indicator.
Full load test to ensure reliability.
Efficiency of up to 89%, ensuring less power wastage.
Operating temperature range from -25°C to +70°C.

The NES-15 is designed for use in a variety of applications, such as industrial automation, control systems, LED displays, and other electronic devices that require a stable and reliable power source. It is also suitable for environments with mechanical stress due to its ability to withstand vibrations.

For more detailed specifications and application information, please contact us.
