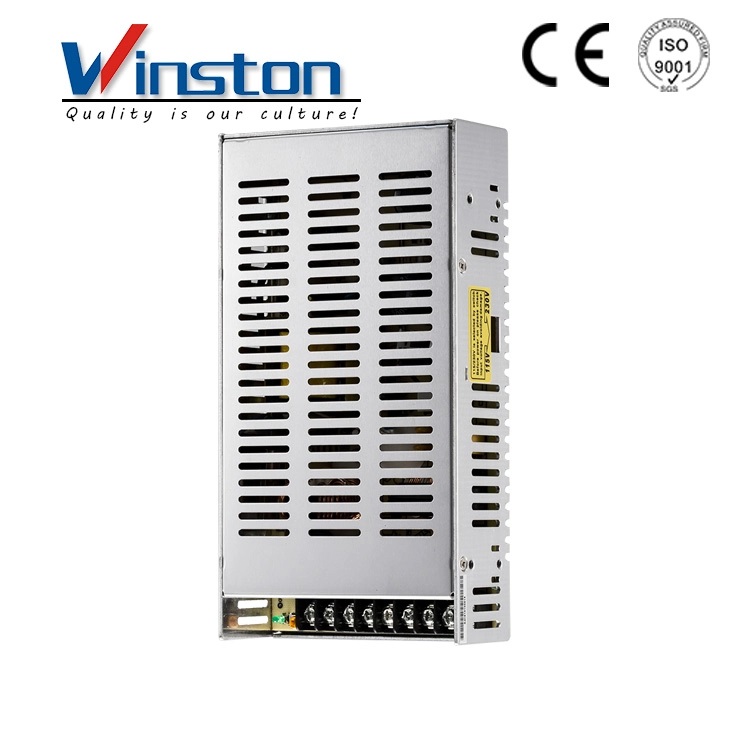

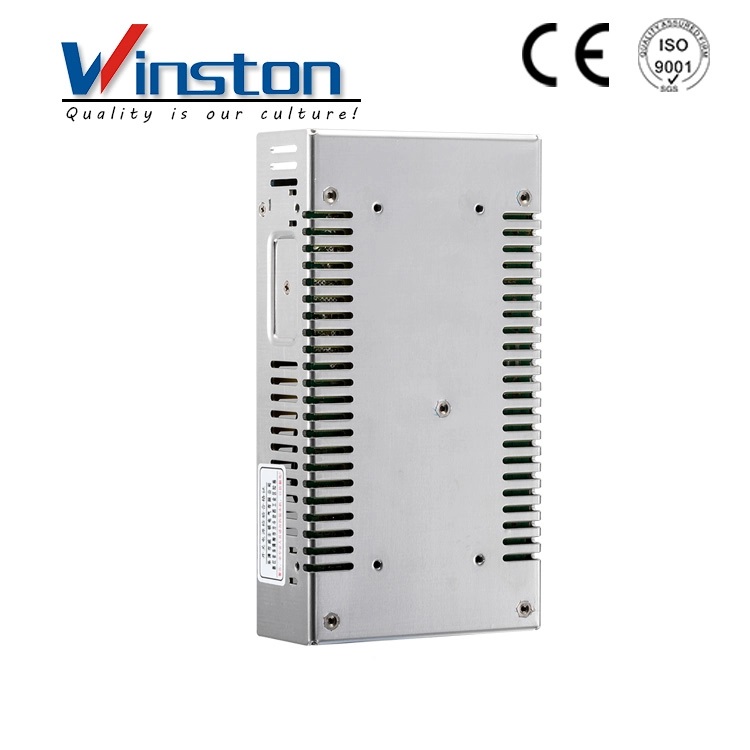

NES-200 200W full power input single output power supply

Model

NES-200-5

NES-200-12

NES-200-15

NES-200-24

NES-200-27

NES-200-36

NES-200-48

DC Voltage

5V

12V

15V

24V

27V

36V

48V

Rated Current

40A

17A

14A

8.8A

7.8A

5.9

2.3A

Current Range

0~40A

0~17A

0~14A

0~8.8A

0~7.8A

0~5.9A

0~2.3A

Wave & Noise

150mVp-p

150mVp-p

150mVp-p

150mVp-p

240mVp-p

240mVp-p

Voltage Adj. Range

4.75~5.5V

11.4~ 13.2V

14.25 ~16.5V

22.8~26.4V

32.4~39.6V

45.6 ~ 52.8V

78%

83%

84%

86%

86%

86%

±1.0%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Setup, Rise hold up time

800ms, 60ms,50ms/230VAC  at full load

Voltage Range

90 ~ 132VAC / 180 ~ 264VAC selected by switch   254 ~ 370VDC

Frequency Range

47 ~ 63Hz

Working Temp.

-10 ~ +50°C

Withstand Voltage

I/P-O/P:1.5KV   I/P-FG:1.5KV O/P-FG:0.5KV 1minute

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ

Dimension

215*115*50mm (L*W*H)

Weight

0.93Kg

Packing

48*31.5*26CM/20pcs/19kg
