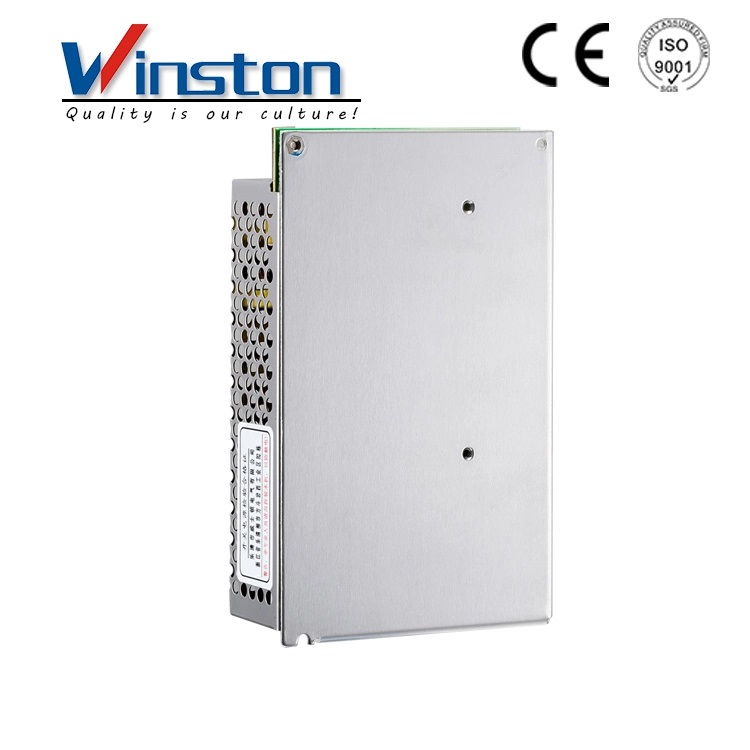

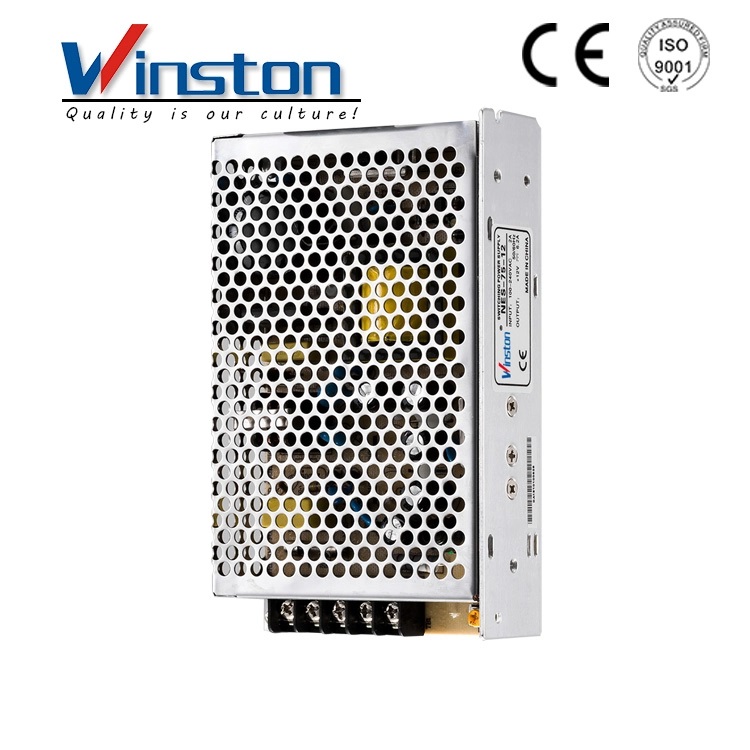

NES-75 75W High Efficiency Single Output Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Product Description

Packaging & Shipping

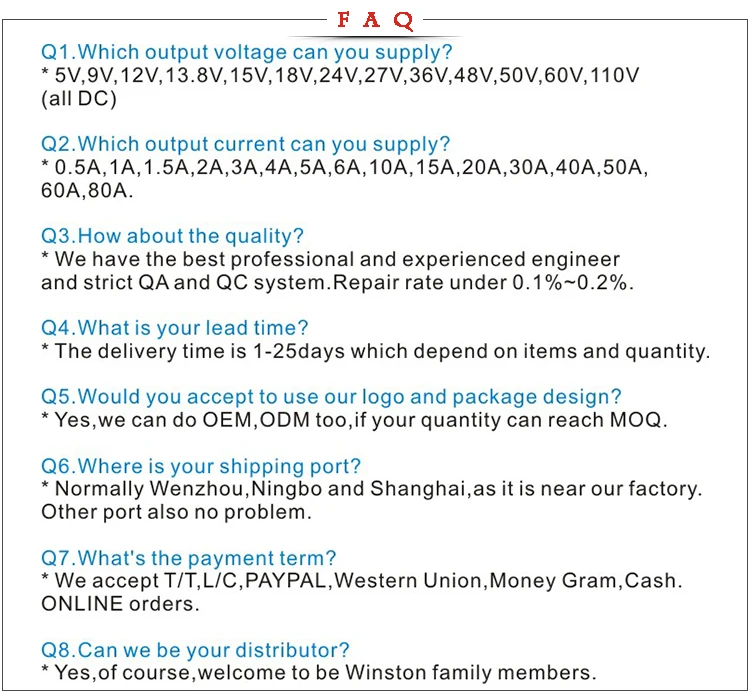

FAQ

1.Product Description

1) High Efficiency, High Reliability, Low Cost
2) AC Input Range:85-264VAC 120-370VDC
3) 100% Full Load Burn-In Test
4) Protections: Short Circuit / Over Load/Over Voltage
5) LED Indicator For Power On
6) Cooling By Free Air Convection
7) Approvals: CE RoHS
8) 2 Year Warranty.

2.Specification:

Model	NES-75-5	NES-75-12	NES-75-15	NES-75-24	NES-75-48
DC Voltage	5V	12V	15V	24V	48V
Current Range	0-14A	0 ~ 6.2A	0 ~ 5A	0 ~ 3.2A	0 ~ 1.6A
Ripple & Noise	80mVp-p	120mVp-p	150mVp-p	200mVp-p	240mVp-p
Efficiency	77%	82%	83%	86%	87%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%	±10%
Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load Regulation	±1%	±0.5%	±0.5%	±0.5%	±0.5%
Setup, Rise ,Hold up Time	800ms, 60ms,50ms/230VAC at full load
Input Voltage	85 ~ 264VAC 120 ~ 370VDC
Frequency Range	47 ~ 63Hz
Impact current	Cold start current 45A/230VAC
Over load protection	105% ~ 160% cut off the output,qutomatic recovery
Over voltage protection	115% ~ 135% shut down O/P voltage,re-power on to recover
Working Temp.	-10 ~ +50ºC
Withstand Voltage	I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:500VDC /100MOhms

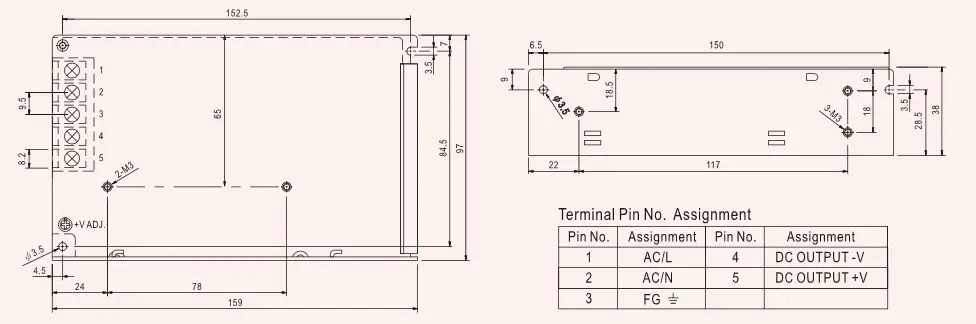

Dimension	1599838mm (LWH)
Weight	0.52Kg
Packing	30pcs/Carton
