XB7-E1D3 3 Pole rotary switch Short handle button switch 22MM

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

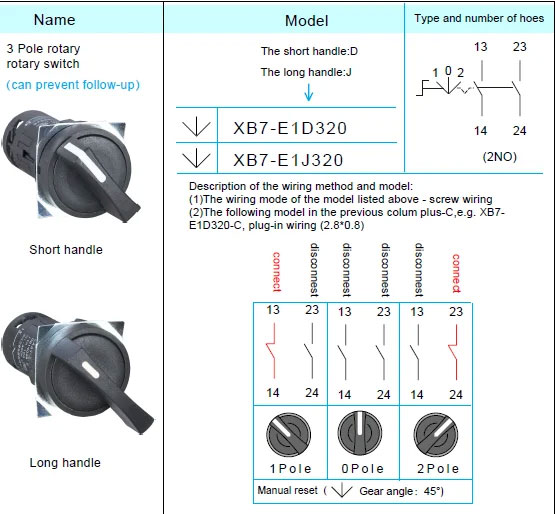

3 Pole rotary switch Short handle 2contact button switch 22MM

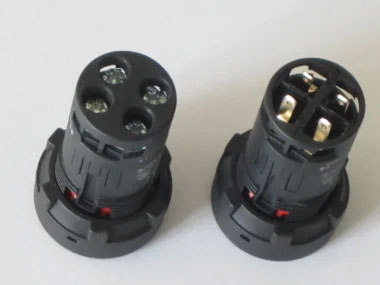

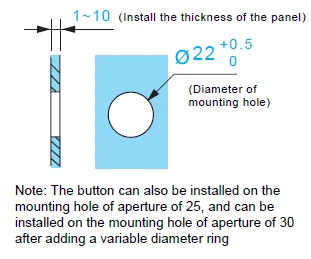

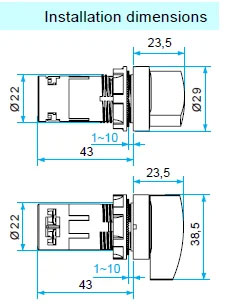

Two wiring methods are available:

(1) screw wiring, (2) plug-in wiring.

3 Pole rotary switch Short handle 2contact button switch 22MM

l Screw wiring: simple and convenient.

l Plug-in wiring: high connection reliability, especially suitable for use in vibration more powerful places, such as: cars, lawn mowers, engineering machinery and so on.

XB series button switch technical parameters

Environment:
Meet the standards	GB 14048.5 , IEC 60947-5-1
Protective treatment	“TH”
Ambient temperature	Operating temperature: - 25 ~ +70 ℃ Storage temperature: - 40 ~ +70 ℃
Vibration resistance	5 gn (2-500Hz) Conforms to IEC 60068-2-6
Protection level	Head: IP40 Terminals: IP20
Mechanical life	Spring-loadd button: 5 million times Knob switch: 1 million times Emergency stop button: 300,000 times

Features of the contact
Rated insulation voltage				250V
Agreed heat current				10A
Operating voltage				24V	110V	220V
Operating current	AC50/60Hz		Resistive load (AC-12)	10A	10A	6A
			Inductive load(AC-15)	10A	6A	3A
	DC		Resistive load (DC-12)	8A	2.2A	1.1A
			Inductive load (DC-13)	4A	1.1A	0.55A
Rated impact-resistant voltage				Uimp = 4 kV
Contact action				Slow break
Definitely split.				N/C The contact is definitely disconnected (compliant with European safety standards)
Short-circuit protection				10A
Wiring capabilities		Screw wiring		Minimum 1 x 0.5 mm2 without a wire connector Tightening moment: 0.5 N.m (recommended value)
				Up to 2 x 1.5 mm2 with wire connector head Tightening moment: 0.5 N.m (recommended value)

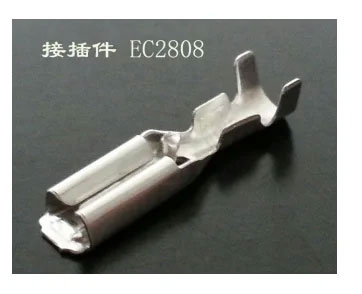

		Plug-in wiring Connector		0.8*2.8 mm Faston Connector
