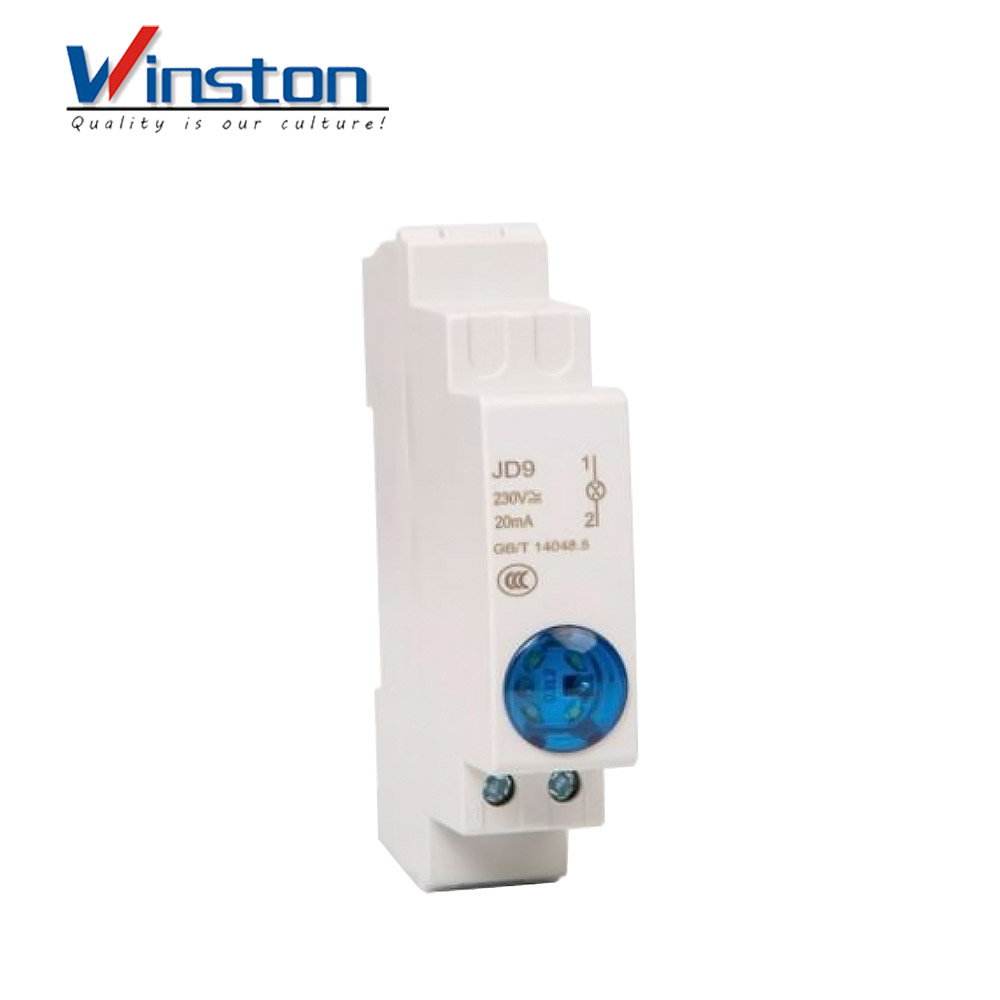

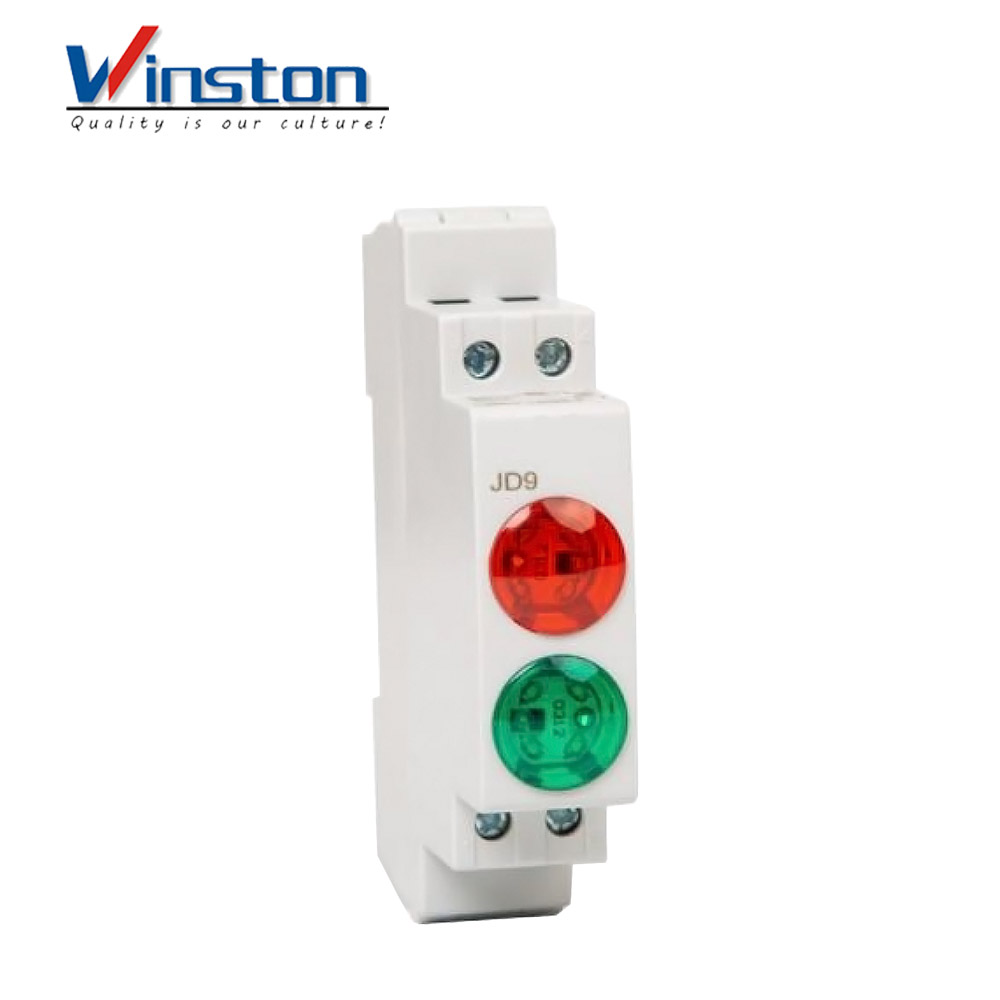

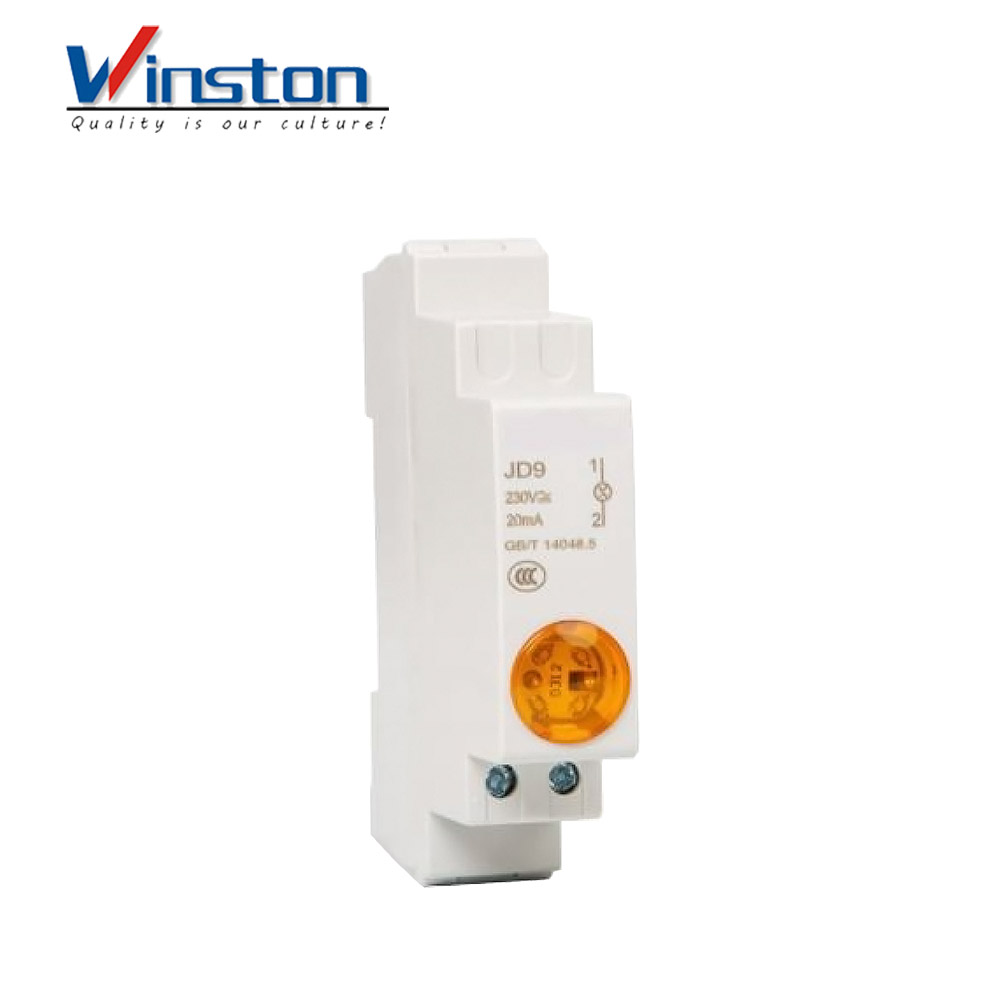

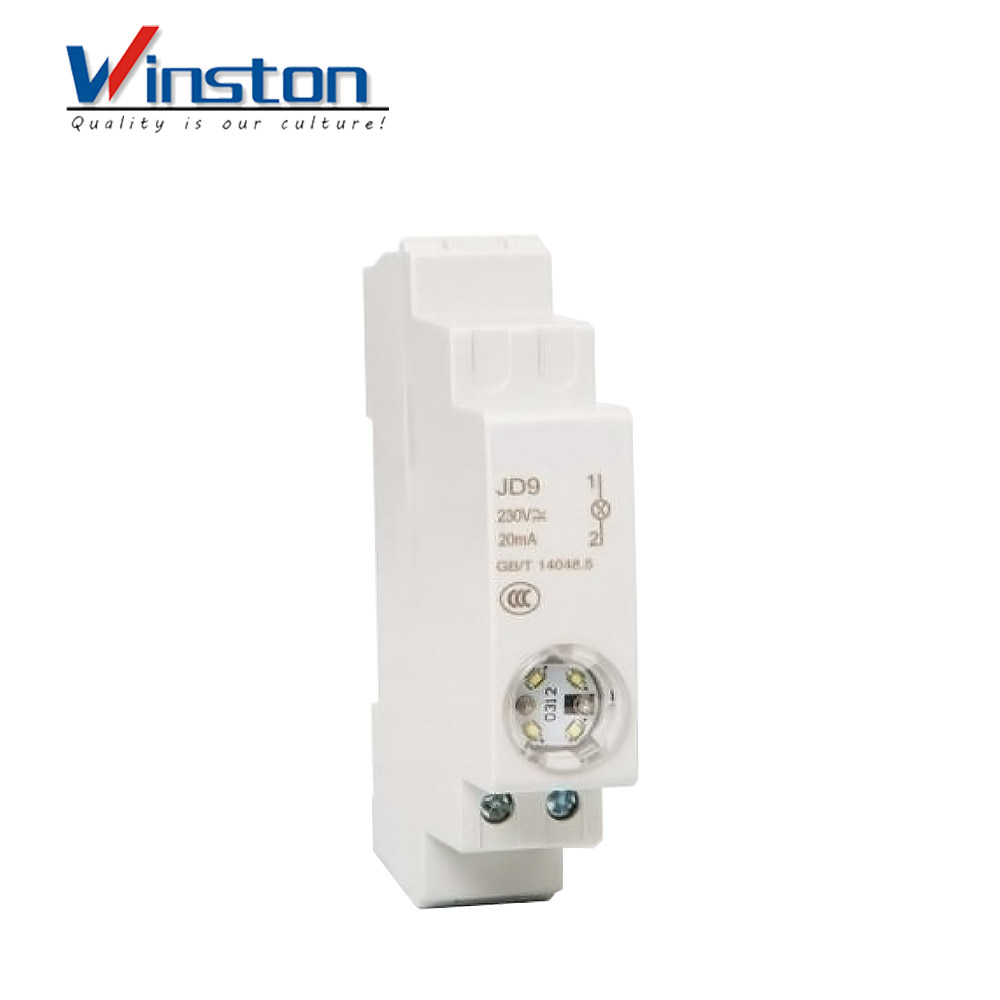

JD9 Din Rail LED Indicator Indicator Light Signal Lamp

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Products Description

JD9 indicator lamp is applicable to AC 50Hz/60Hz, rated voltage to 230v. DC voltage to 230vl circuit control system.It is used for indication signals, preset signals, accident signals and otherl indications of telecommunication, electrical and other lines.

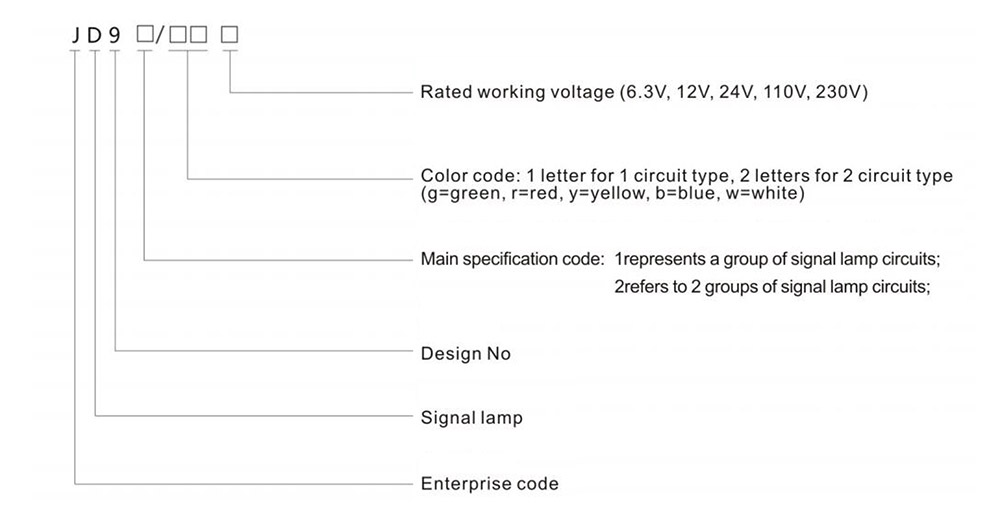

Model Explanation

Technical parameter items	Parameter value
Rated working voltage	6.3VACIDC、12VACIDC、24VACIDC、110VACIDC、230VAC/DC
Rated working current	≤20mA
working life	≥30000h
Connecting wire	≤6mm^2
Tightening torque	0.8N·m
Prolection grade	IP20

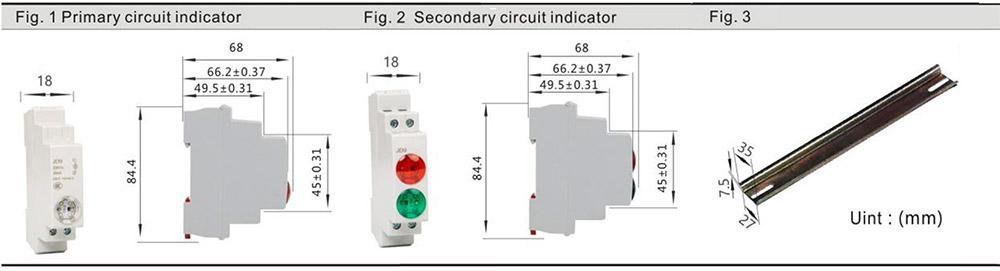

Overall dimension	See Figure 1,Figure 2

Normalworking conditions and installation conditions

A. Ambient temperature:-5°C~+40*C; The average value of 24h shall not exceed 35°C. B.Altitude:s 2000m. C.Installation category: Class ll and lll. D.Pollution level: Level 2.

installation method: TH35-7.5 profile steel installation rai is used for installation, and the inclination between the installation surfaceand the vertical surface is not more than 5 °C.

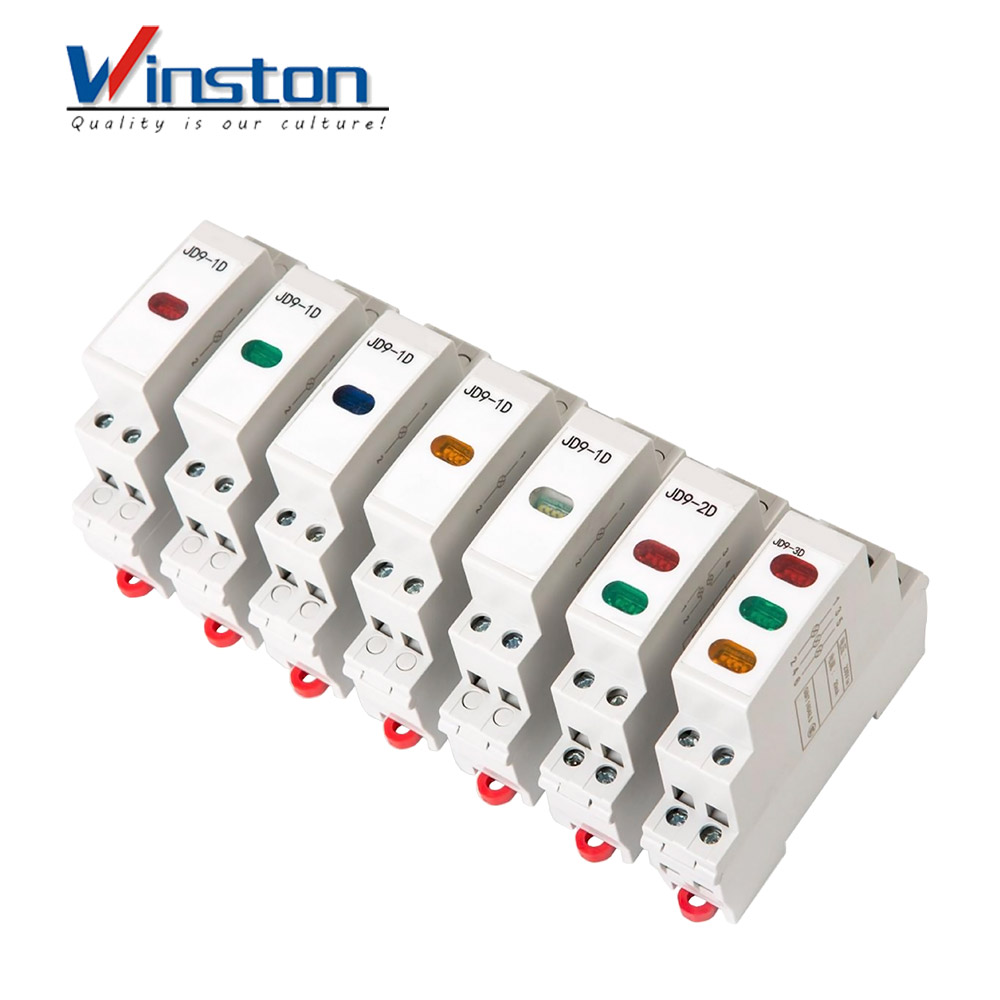

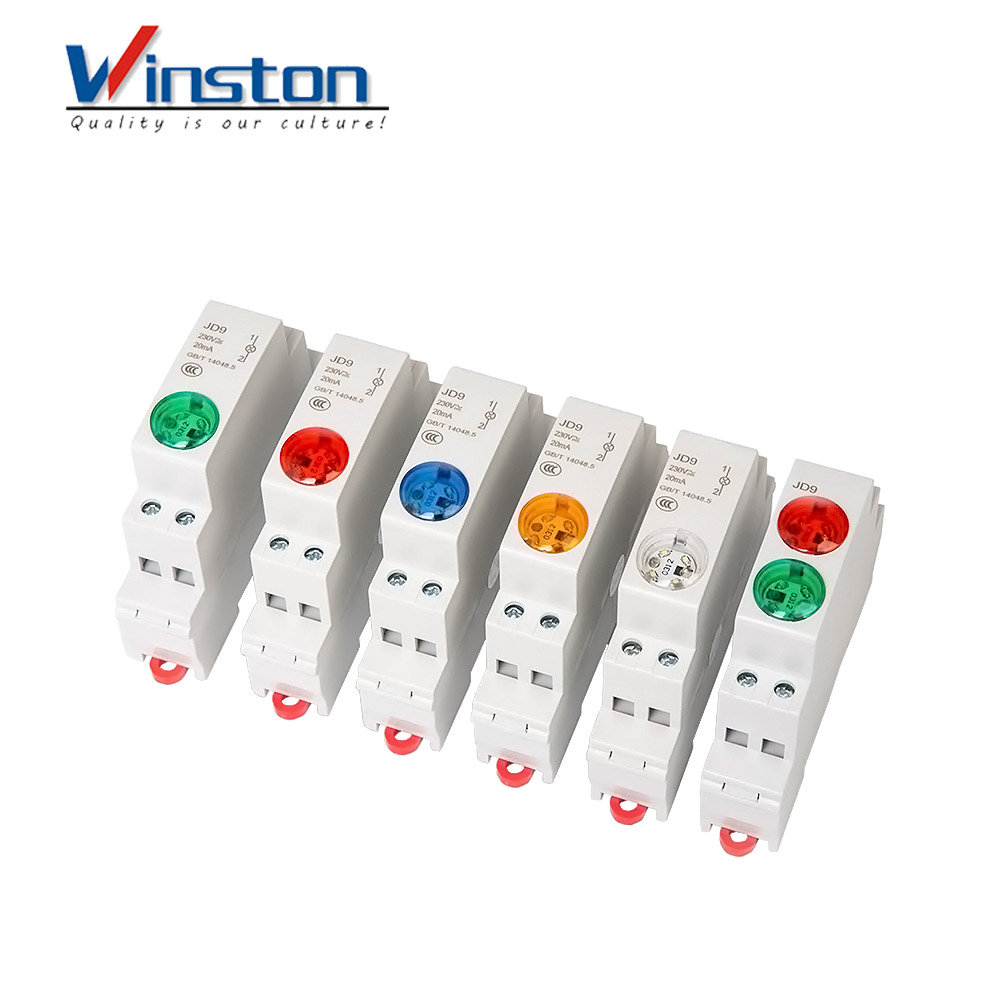

Classification:

A. By product type: LED type B. According to the number of circuits of the indicator light: 1. One circuit; 2. Secondary circuitC.By color combination: a. Green (g); B. Red (r); C. Yellow (y); D. Blue (b); E. White (w);F. Green+green (gg); G. Green+red (gr); H. Green+yellow (gy); l. Green+blue (gb); J. Green+white (gw); K. Red+red (rr); L. Red+yellow (ry); M. Red+blue (rb); N. Red+white (rw); O. Yellow+yellow (yy); P. Yellow+blue (yb); Q. Yellow+white (yw);R.Blue+blue (bb);S.Blue+white (bw); T. White+white (ww).Structural features:The indicator lamp is in plane layout, mainly composed of insulating shell, partition, wiring board, lamp holder, indicator window, lamp capwiring base and other parts, The indicator lamp acls as a separate.The two terminal blocks ofthe circuit are installed on both sides of theshel to indicate the working state of the circuit. One pole of the lamp cap is rotated and fixed in the lamp holder sleeve, and the other poles connected with the sheet elastic connection,The touch plate contacts to realize the connection of the circuitinstalation and useA. During installation, check whether the rated voltage of the indicator lamp meets the use requirements. B. During installalion, the wire shallbe tightened, and shall not be loose or loose, or the copper wire shall be exposed outside the terminal. C. The indicator lamp shall not be attacked by rain during use, storage, transportation, etc.
