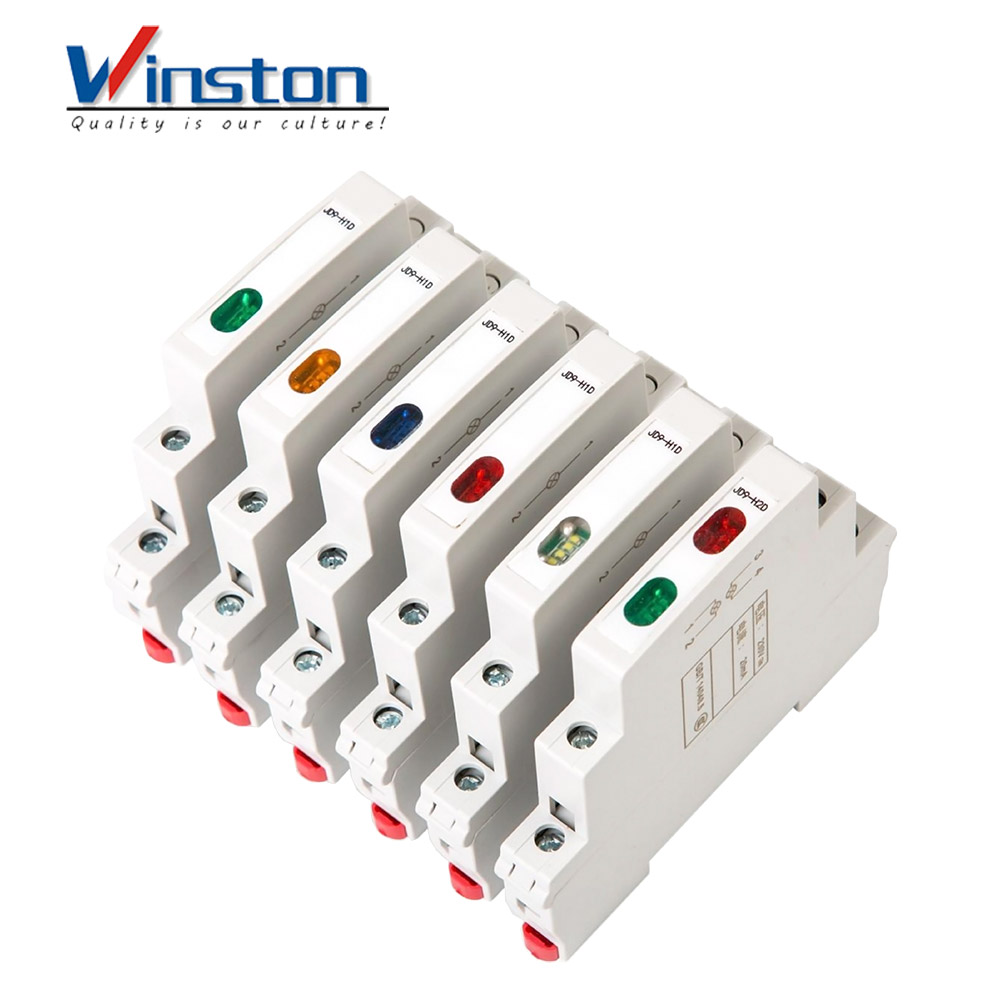

JH9 Industrial Din Rail LED Indicator Indicator Light

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Products Description

JH9 indicator light/buzzer is suitable voltage up to DC24V,with a buzzer that provides bothluminous and audible indications. lt serves as an indicator model,preset signal, accident signal.and other alarm indications for telecommunications, electrical and other lines.

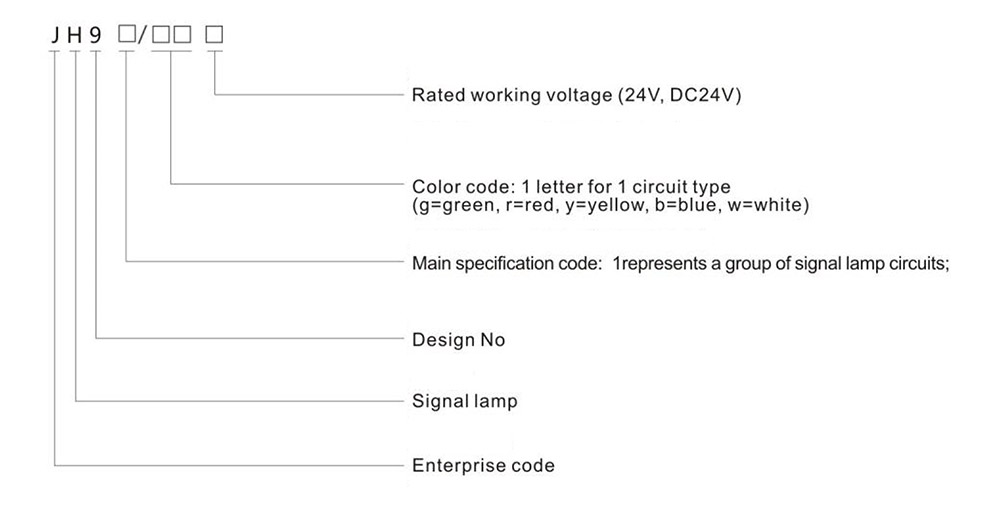

Model Explanation

Technical parameter items	Parameter value
Rated working voltage	24VACIDC
Rated working current	≤20mA
working life	≥30000h
Connecting wire	≤6mm^2
Tightening torque	0.8N·m
Prolection grade	IP20

As a flat layout, the indicator light/buzzer mainly consists of insulated casing, partition, wiringboard, lamp holder, indicator window, lamp head, wiring base, buzzer and other componentsComposition. The indicator light is installed as an independent circuit with two wiring terminalson both sides of the casing to indicate the working status of the circuit, and the lamp head isslightly polarizedWithin the fixed lamp holder sleeve, the other pole contacts the sheet-shapedelastic contact plate to achieve circuit connection.The indicator light with a buzzer has bothluminous and audible indications.
