Name: S-500 500W Single Output Switching Power Supply
Brand: Winston
SKU: 02011
Rating: 4.9 (1056 reviews)

S-500 500W Single Output Switching Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Model	S-500-12	S-500-13.5	S-500-15	S-500-24	S-500-27	S-500-48
DC Voltage	12V	13.5V	15V	24V	27V	48V
Rated Current	40A	36A	32A	20A	18A	10A
Current Range	0-40A	0-36A	0-32A	0-20A	0-18A	0-10A
Rated Power	480W	486W	480W	480W	486W	480W
Ripple & Noise	240mVp-p	240mVp-p	240mVp-p	240mVp-p	200mVp-p	300mVp-p
Voltage Adj. Range	10-13.2V	12-15V	13.5-18V	20-26.4V	24-30V	41-56V
Voltage Tolerance	±2%	±2%	±1%	±1%	±1%	±1%
Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Setup, Rise, Hold Up Time	1.5s,50ms,20ms at full load
INPUT
Voltage Range	90~132VAC/180~264VAC selected by switch 47~63Hz
AC Current	7A/115V 3.5A/230V
Efficiency	84%	84%	83%	85.50%	86.50%	87%
Inrush Current	18A/115V 36A/230V
Leakage Current	<3.5mA/240VAC
PROTECTION
Over Load	105-135%
Over Load	Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage	13.8-16.2V	15.5-18.2V	18-21V	27.6-32.4V	31-36.5V	57.6-67.2V
Over Temp.	≥55℃Fan On ≤45℃Fan Off ≥70℃ Output Cutout
ENVIRONMENT
Working Temp.Humidity	-10℃~+50℃; 20%~90%RH
Storage Temp.Humidity	-20℃~+85℃; 10%~95%RH
Temp.Coefficient	±0.03%/℃(0～50℃)
Vibration	10~500Hz,2G 10min,/11cycle,60min,each axes
SAFETY
Withstand Voltage	I/P-O/P:3KVAC I/P-FG:1.5KVAC I/P-FG:0.5KVAC
Isolation Resistance	I/P-O/P,I/P-FG,I/P-FG:500VDC/100MΩ
STANDARD
Safety Standard	UL1950
EMC Standard	CISPR22(EN 55022),IEC1000-4,2,3,4,5,6,8,11 IEC1000-3-2
OTHERS

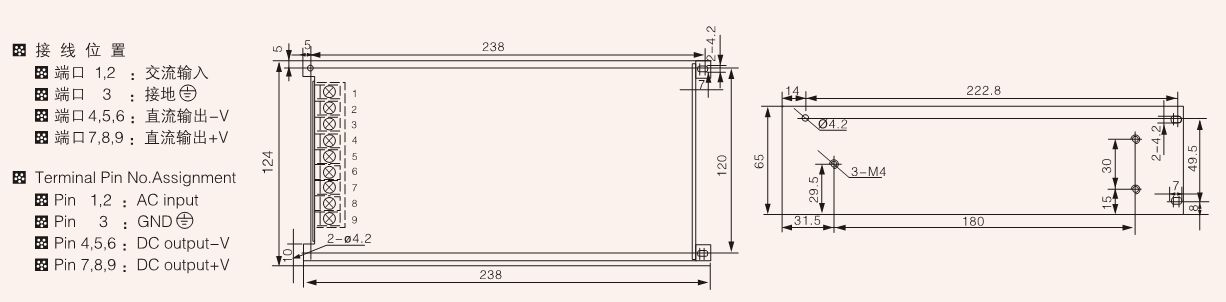

Dimension	24112466mm(LWH)
Weight	1.3kg
