PV-T5 T Type Solar Panel Cable Branch Connector

Name: PV-T5 T Type Solar Panel Cable Branch Connector
Brand: Winston
SKU: 02987
Rating: 4.9 (1544 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Winston Parallel Connection T Type Solar Panel Cable Branch Connector

Products Description

· Simple on-site processing;

· Mating safety provided by keyed housings;

· Mutiple plugging and unplugging cycles;

· Accomodates PV cable with deferent insulation diamaters;

· High current carrying capacity;

· Rated current:up to 30A

· Acomodates PV cable with different insulation diameters.

Item	SOLAR CONNECTOR
Model Number	PV-T5
Rated Current	50A
Test Voltage	1000V DC
Overvoltage Type/Pollution Degree	6000V(50Hz, 1min)
Contact Resistance Of Plug Connector	CAT III /2
Contact Resistance Of Plug Connector	1mΩ
Contact Material	Copper, Tin-plated
Insulation Material	PPO
Degree Of Protection	IP2X/IP67
Flame Class	UL94-VO
Safety Class	II
Insertion Force/Withdrawal Force	≤ 50N/ ≥ 50N
Connecting System	Crimp connection
Temperature Range	-40℃ ~ +125℃

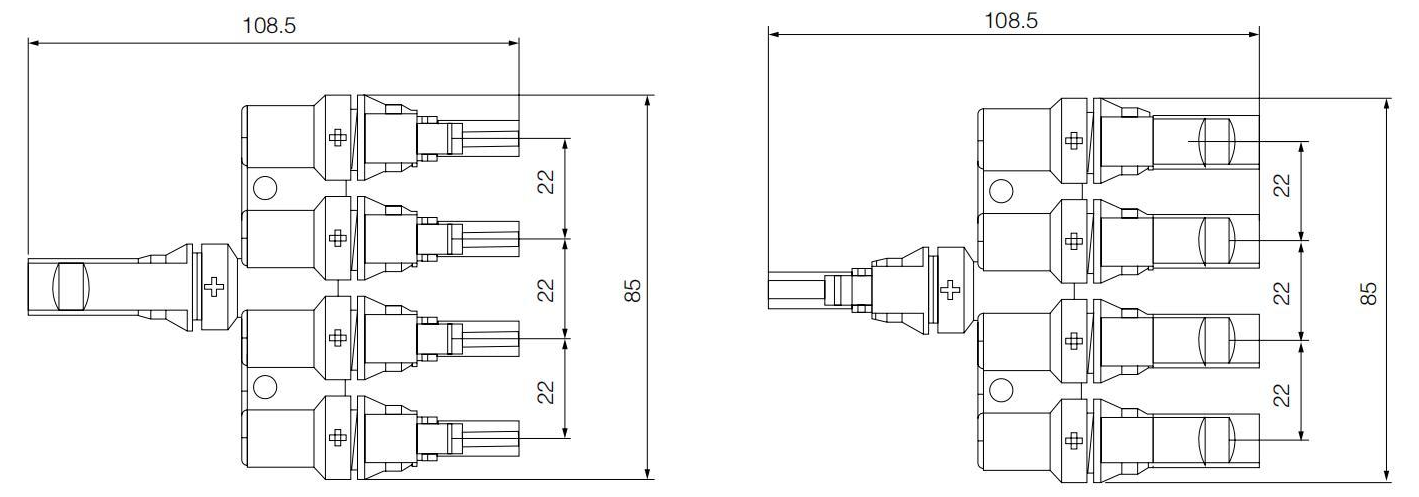

Unit:mm
