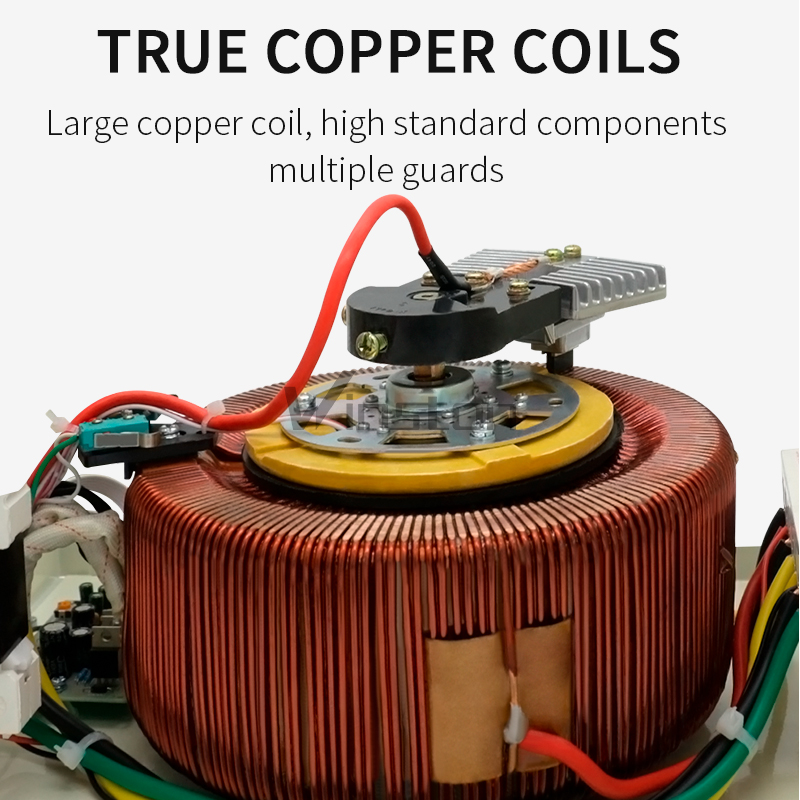

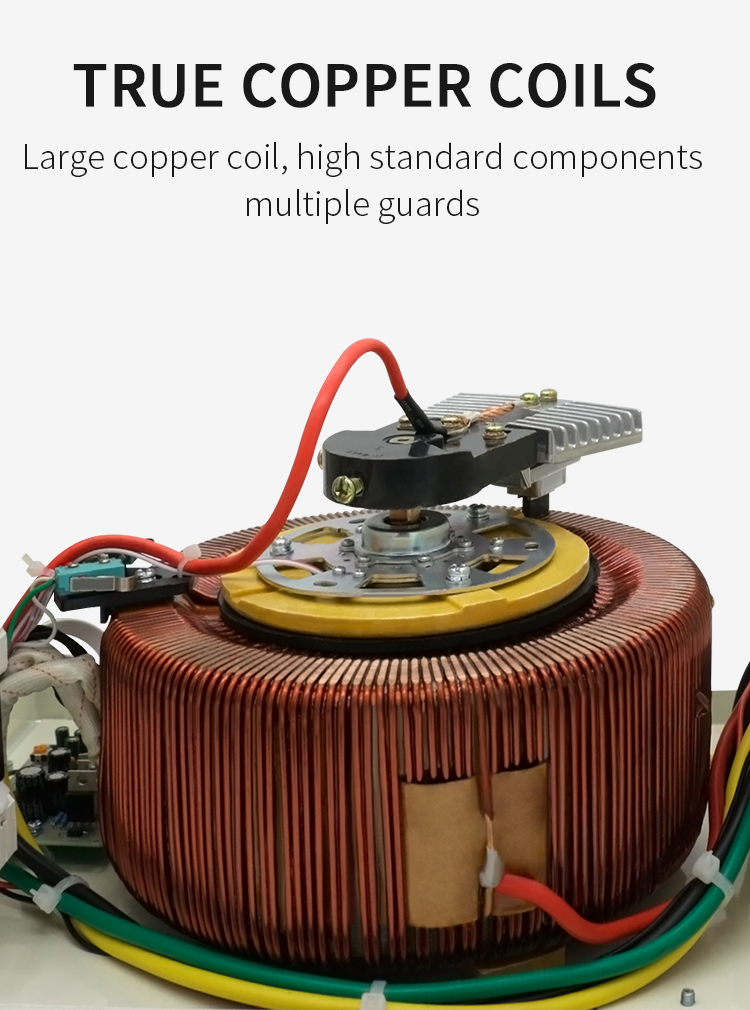

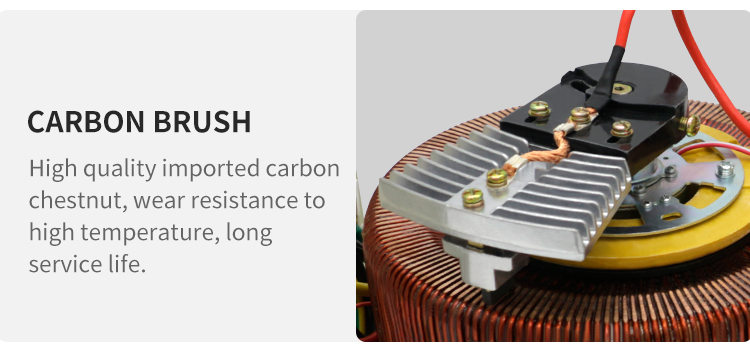

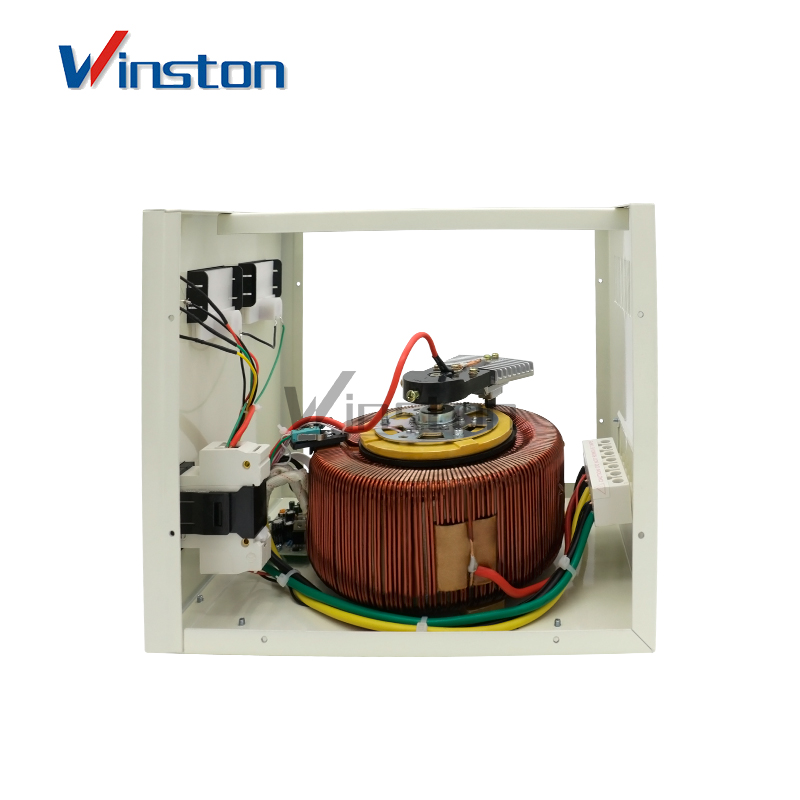

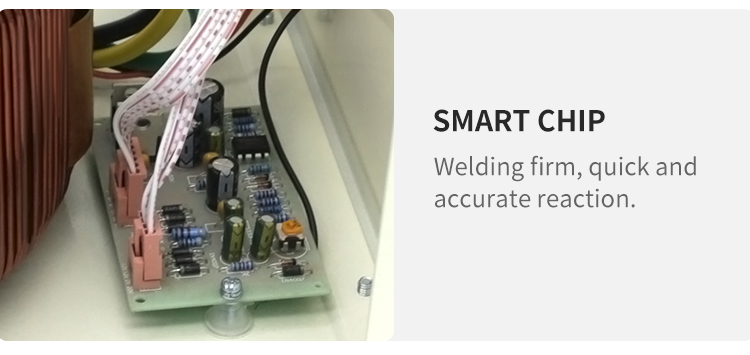

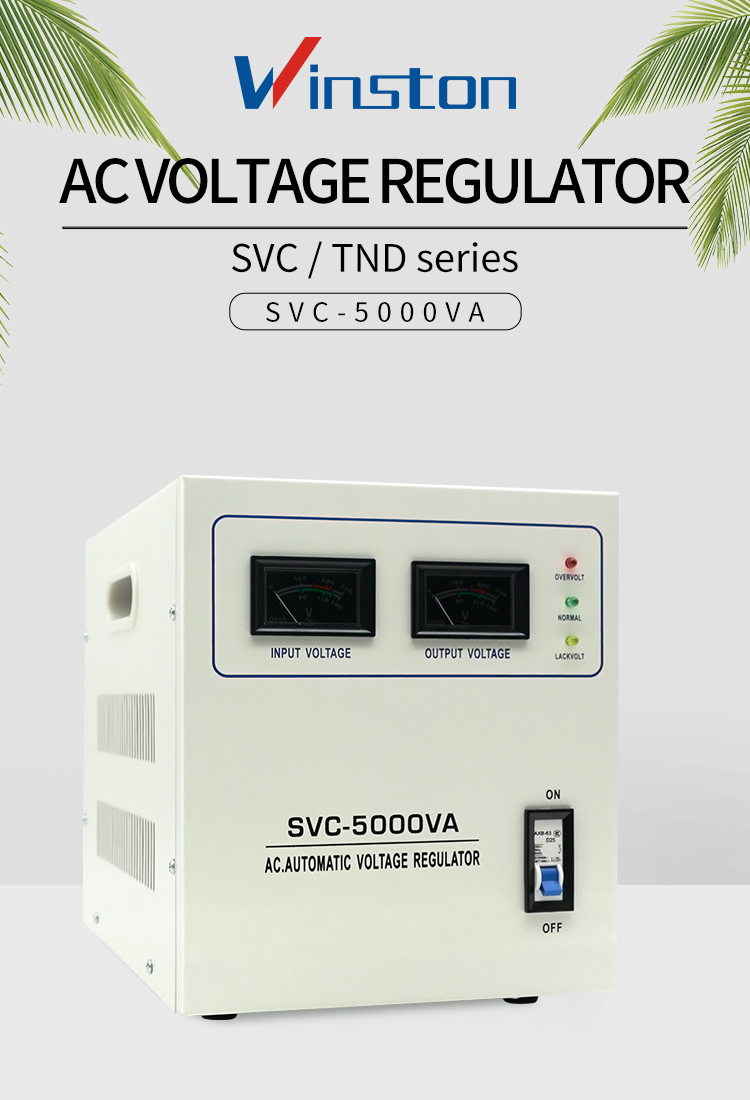

SVC single-phase and three-phase high accuracy full-automatic AC voltage stabilizer is one kind of our dominant products, made upof contact auto voltage regulator, servo motor, automatic control circuit, etc. When the power network voltage fluctuates or theload varies, automaticsampling control circuit will send signal to drive the servo motor which can adjust the position of carbon brush of auto voltage regulator, then, the output voltage will be adjusted to rated value and get a steady state.

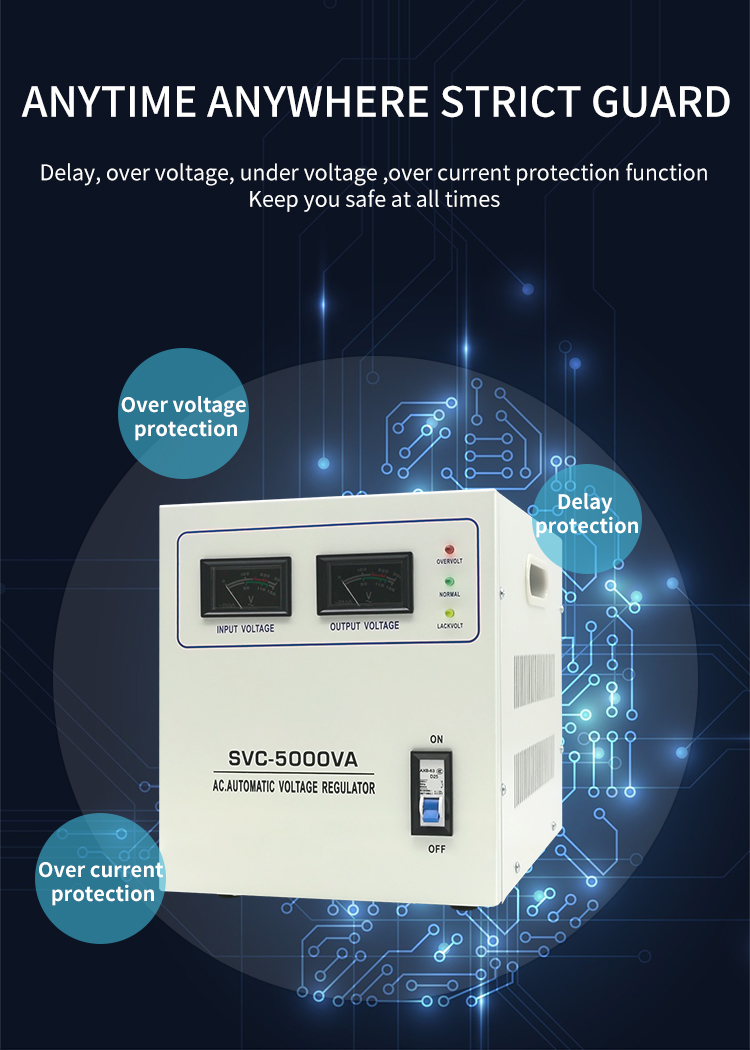

This voltage stabilizer is of common type, it has the function of connecting through the commercial power. Compared with othervoltage stabilizers, it has the advantage of great variety, complete specification, nice appearance and obvious features of highefficiency, no wave distortion,reliable performance, working continually for long time, besides, it is provided with short timedelay and over voltage protection, and the long time delay and under voltage protection also can be set according to userrequirement. This product is an ideal stabilized voltage supply, widely used in any locations requiring electricity and ensuresyour power device can run normally.
For office equipment, testing equipment, medical equipment,industrial automation equipment, household appliance, lightingsystem,communication system, etc.Provide kinds of electrical appliances with abundant electric powermeeting different requirements
|

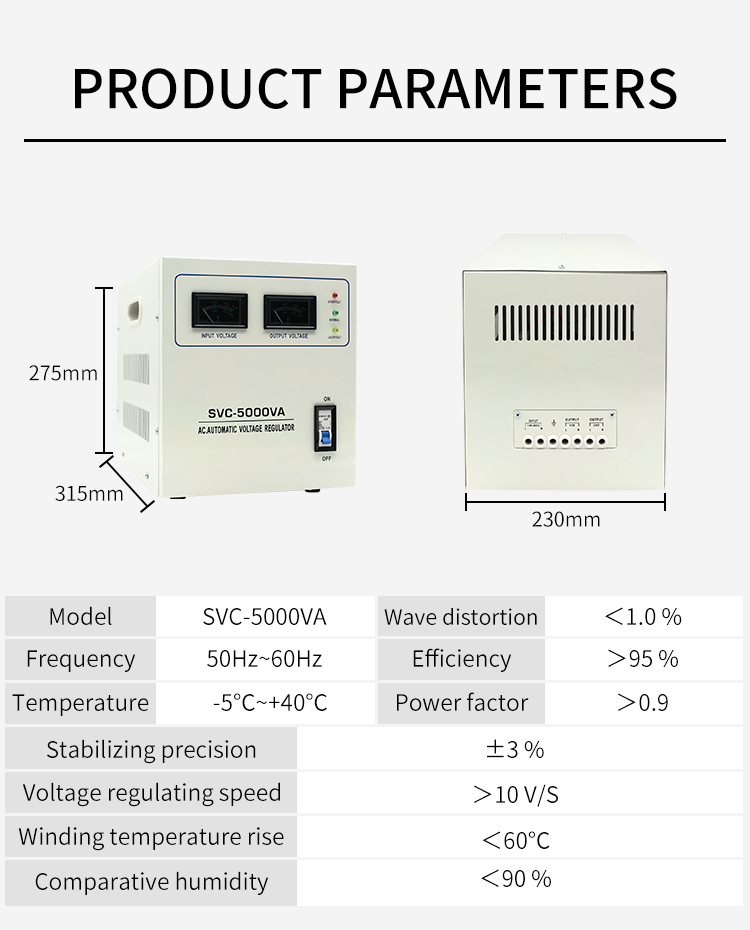

Spec(KVA) |
Product size D*W*H(cm) |
Package size D*W*H(cm) |
Weight(kg) |
Qty |
|
|
Single-phase two-wire (desk type) |
SVC-0.5 |
17*19*13 |
44*25*35 |
5.0 |
4 |
|
SVC-1 |
20*22*16 |
50*28*40 |
7.0 |
4 |
|
|
SVC-1.5 |
20*22*16 |
50*28*40 |
8.0 |
4 |
|
|
SVC-2 |
26*24*19 |
34*32*50 |
14 |
2 |
|
|
SVC-3 |
29*22*24 |
62*38*34 |
16 |
2 |
|
|
SVC-5 |
46*24*29 |
54*32*27 |
27 |
1 |
|
|
SVC-8 |
57*27*24 |
71*40*35 |
40 |
1 |
|
|
SVC-10 |
57*27*24 |
71*40*35 |
41 |
1 |
|
|
SVC-1.5 |
40*36*17 |
52*48*28 |
18 |
1 |
|
|
Single-phase two-wire (vertical type) |
SVC-5 |
29*24*40 |
31*29*48 |
28.5 |
1 |
|
SVC-8 |
29 *24*42 |
40*35*52 |
39 |
1 |
|
|
SVC-10 |
29*24*42 |
40*35*52 |
40 |
1 |
|
|
SVC-15 |
40*33*65 |
48*45*90 |
75 |
1 |
|
|
SVC-20 |
58*35*68 |
68*48*90 |
110 |
1 |
|
|
SVC-30 |
53*43*102 |
64*53*112 |
165 |
1 |
|
|
SVC-45 |
79*43*129 |
90*65*140 |
200 |
1 |
|
|
SVC-60 |
79*43*129 |
90*65*140 |
250 |
1 |
|
|
SVC-20 |
43*51*91 |
64*55*106 |
124 |
1 |
|
|
Three-phase four-wire |
SVC-3 |
42*38*19 |
54*50*31 |
23 |
1 |
|
SVC-4.5 |
42*38*19 |
54*50*31 |
27 |
1 |
|
|
SVC-6 |
37*28*68 |
48*40*78 |
39 |
1 |
|
|
SVC-9 |
35*33*78 |
48*45*90 |
48 |
1 |
|
|
SVC-15 |
43*38*73 |
55*51*90 |
85 |
1 |
|
|
Three-phase four-wire |
SVC-30 |
43*51*91 |
64*55*106 |
131 |
1 |
|
SVC-45 |
65*43*95 |
78*55*110 |
197 |
1 |
|
|
SVC-60 |
77*55*100 |
90*67*115 |
260 |
1 |
|
|
SVC-80 |
77*55*100 |
90*67*115 |
290 |
1 |
|
|
SVC-100 |
77*55*100 |
90*67*115 |
350 |
1 |
|
