Name: UB1500-30GM-E4-V1 Ultrasonic sensor
Brand: Winston
SKU: 02012
Rating: 4.1 (1056 reviews)

UB1500-30GM-E4-V1 Ultrasonic sensor

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Technical Parameters

UB1500-30GM-E4-V1

Technical data
Sensing distance				65…1500mm
Adjustment range				70…1500mm
Unusable area				0…65mm
Standard target plate				100mm×100mm
Transducer frequency				About 175kHz
Response delay				About 65ms
Indicators/Operating means
LED blue				Power on
LED yellow				indication of the switching state Flashing: program function object detected

LED red				permanently red: Error Red,flashing: program function,object not detected

Electrical specifications
Operating voltage UB				10…30VDC,ripple10%ss
No-load supply current				≤45mA
Input
Input type				1 TEACH-IN input Operating distance A1:-UB…+1V, operating distanceA2:+6… + UB Input impedance:>4.7KΩ TEACH-IN programmable pulse : ≥1S



Output
Output type				1 switch output E4,PNP NO/NC, programmable
Rated operational current				200mA,short-circuit/overload protected
Default setting				Switching point A1:70mm Switching point A2: 800mm
Voltage drop				≤ 3V
Repeat accuracy				≤ 1%
Switching frequency f				≤ 4 HZ

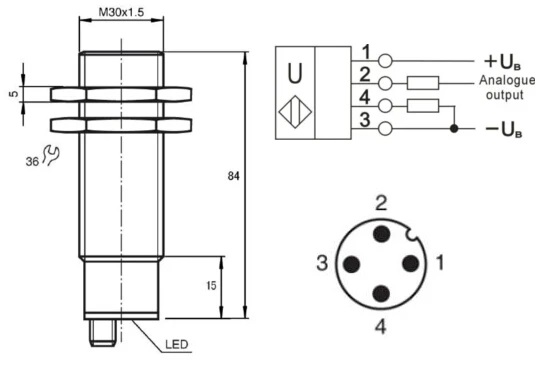

Mechanical specifications
Protection grade				IP67
Connection				V1 connector(M12×1),4-pin
Material Housing				brass,nickel-plated
Transducer				epoxy resin/hollow glass sphere mixture; foam polyurethane,cover PBT
