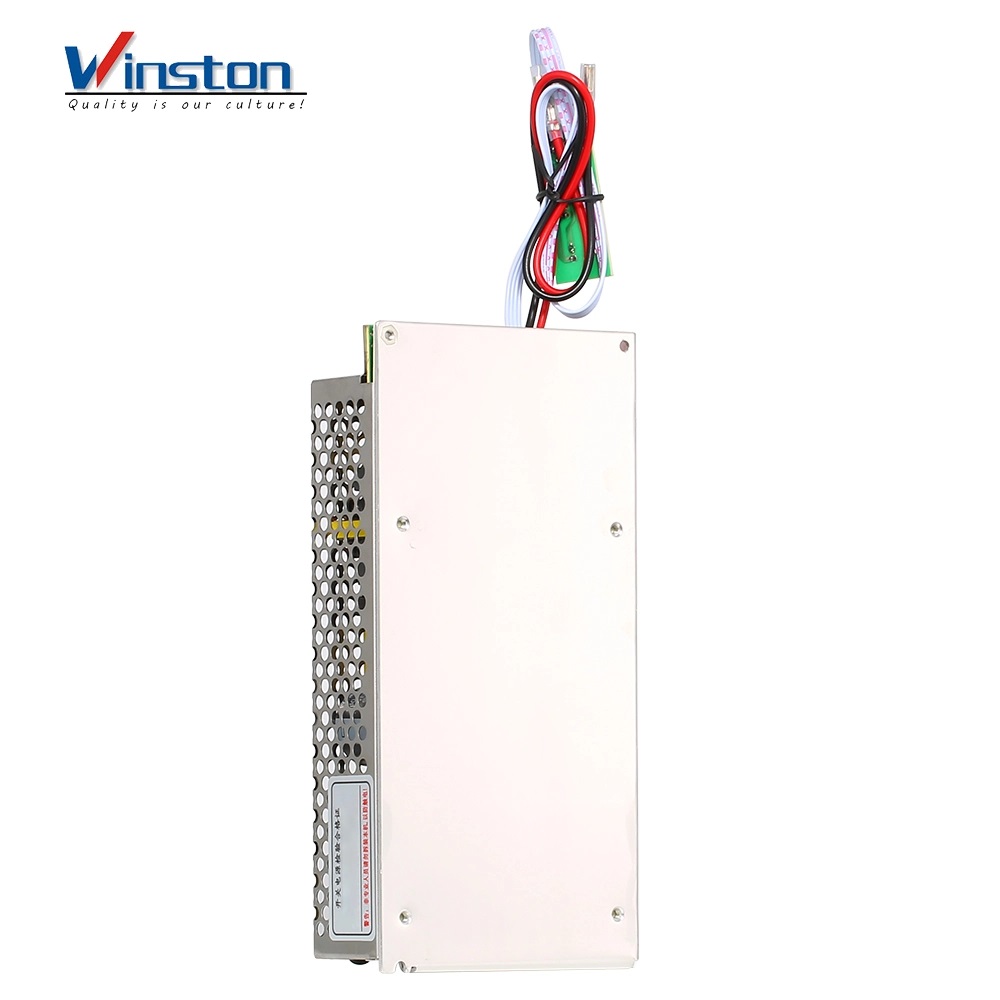

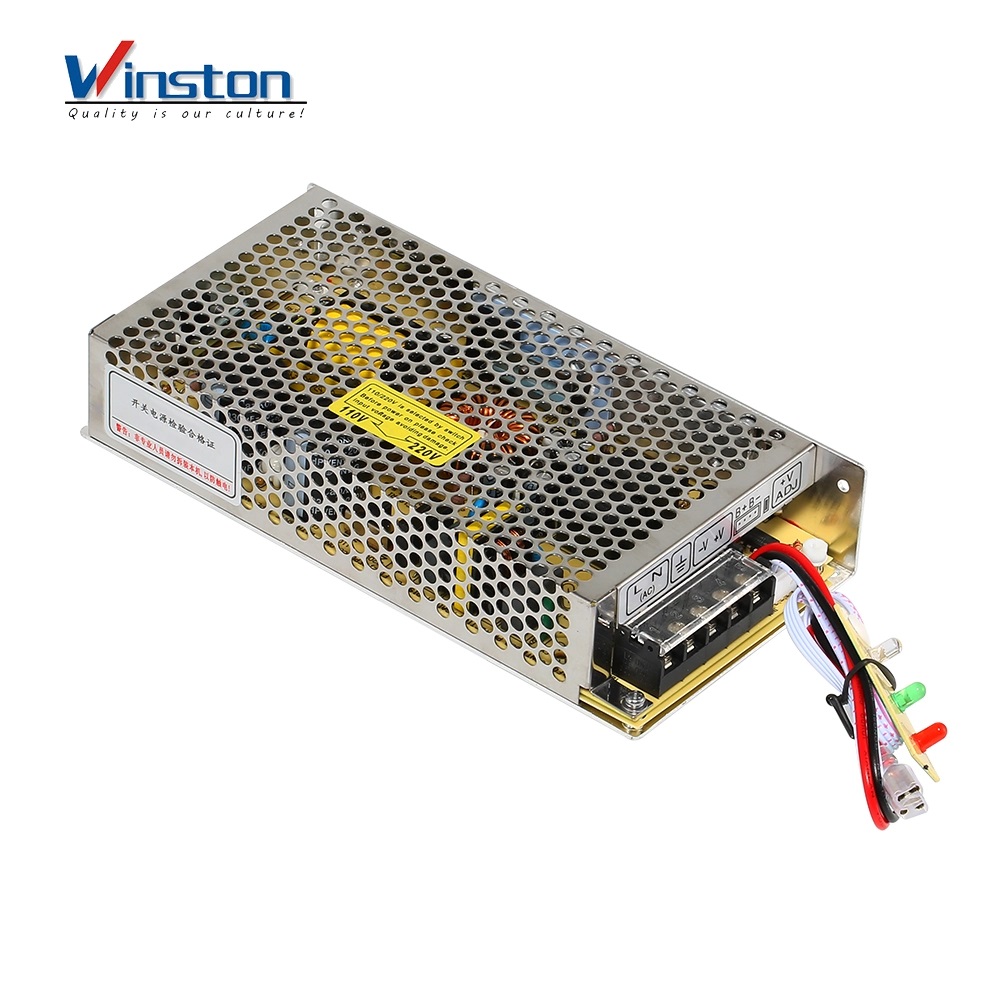

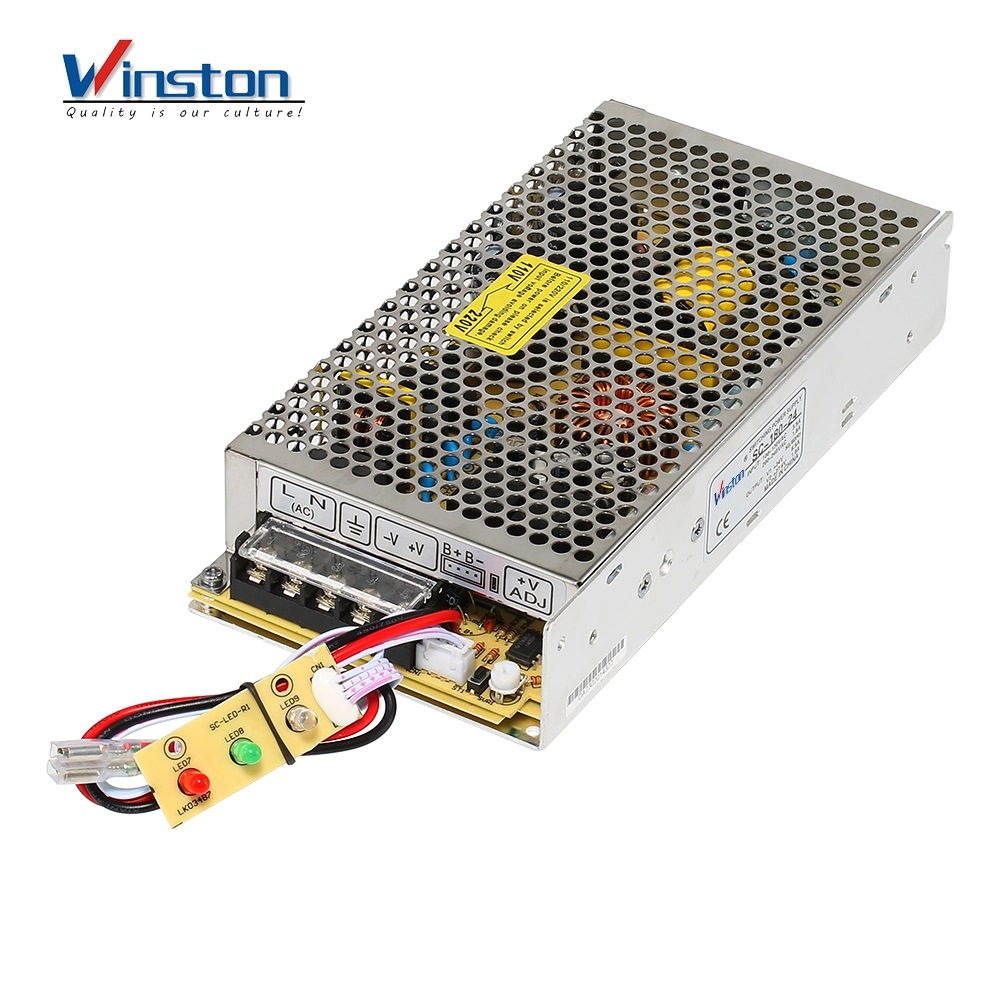

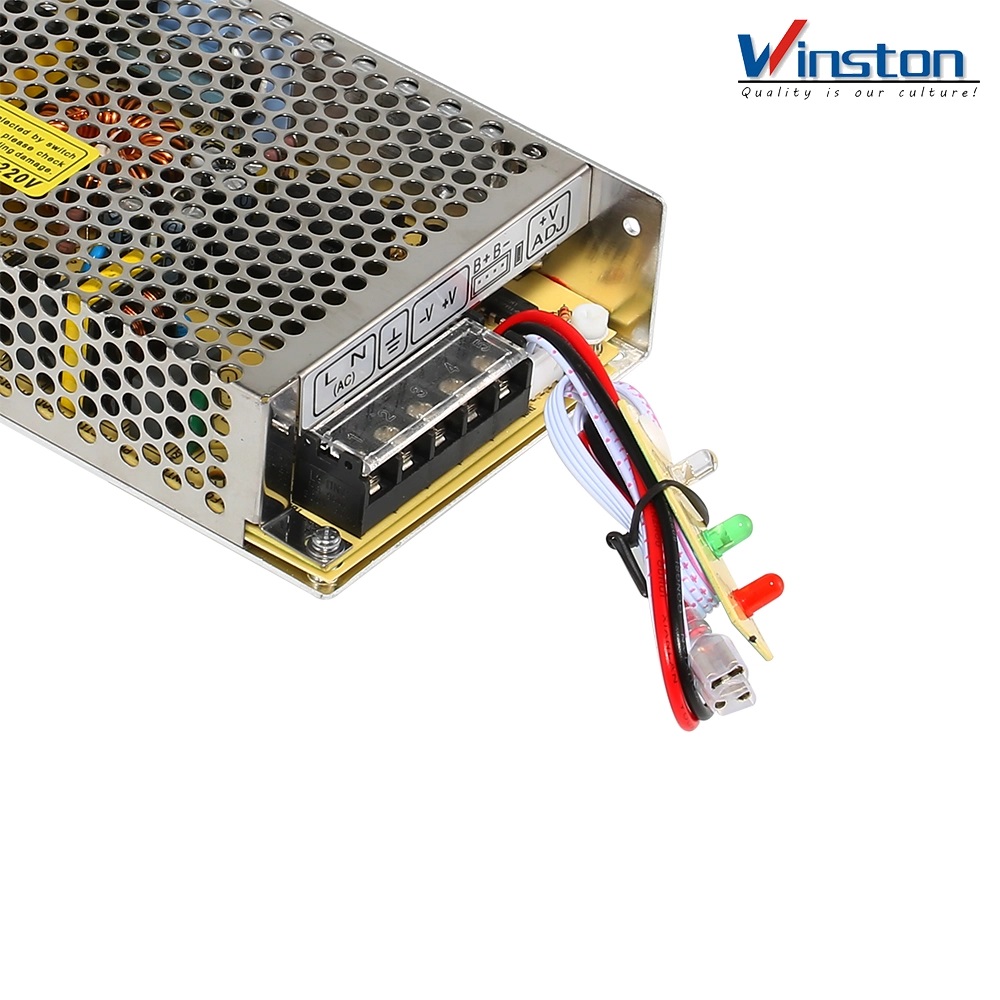

SC-180 UPS Single Output Function Monitor Switching Power Supply

Model

SC-180-12

SC-180-24

DC voltage

CH1:12V

CH2:13.8V

CH1:24V

CH2:27.6V

Output Accuracy

±2%

-----

±2%

-----

Rated current

13.5A

1.5A

6.5A

1.0A

Current range

0~15A

-----

0~7.5A

-----

Rated power

182.7W

183.6W

Ripple & noise

120mvp-p

-----

180mvp-p

-----

DC voltage ADJ.range

CH1:10.3~13.8V

CH1:21.3~27.5V

Efficiency

85%

87%

Input voltage range

90~132VAC/180~264VAC(selected by switch)/255~370VDC

Frequency

47~63HZ

Input AC current

3.5A/115VAC，1.8A/230VAC

Inrush current

Cold-start current 30A/115VAC，50A/230VAC

Leakage current

< 2.5mA/240VAC

Over load protection

Rated output power 110%~150% start over load protection

Protection type：AC charging mode，hiccup mode，auto-revovery after fault condition is removed

Low-voltage battery protection

9.5~10.3V

19~20.6V

Protection mode: Cut off output

UPS Function Description

Long-term online floating charge of the battery, high charging efficiency, and the battery fullness can reach more than 90%;

Full stop, prevent battery overcharge, effectively extend battery life;

Automatic mains/battery switching, no switching time, no need to watch

With the cold start function, the UPS can be started directly with the battery to meet the emergency requirements of users when there is no mains supply

Working temp,humidity

-20℃~+60℃，20%~90%RH

Storage temp,humidity

-20℃~+85℃，10%~95%RH Non-condensing

Withstand voltage

I/P-O/P：1.5KVAC； I/P-FG：1.5KVAC； O/P-FG：0.5KVAC

Isolation resistance

I/P-O/P：I/P-FG：O/P-FG：100M ohms/500VDC

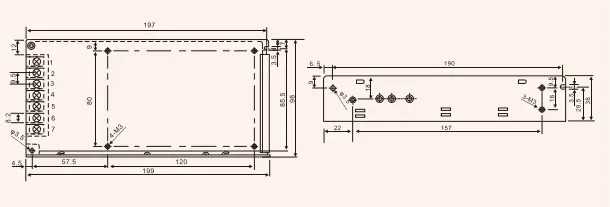

Demension

199*98*38mm (L*W*H)

Weight/packing

0.7kg/30pcs/21kg
