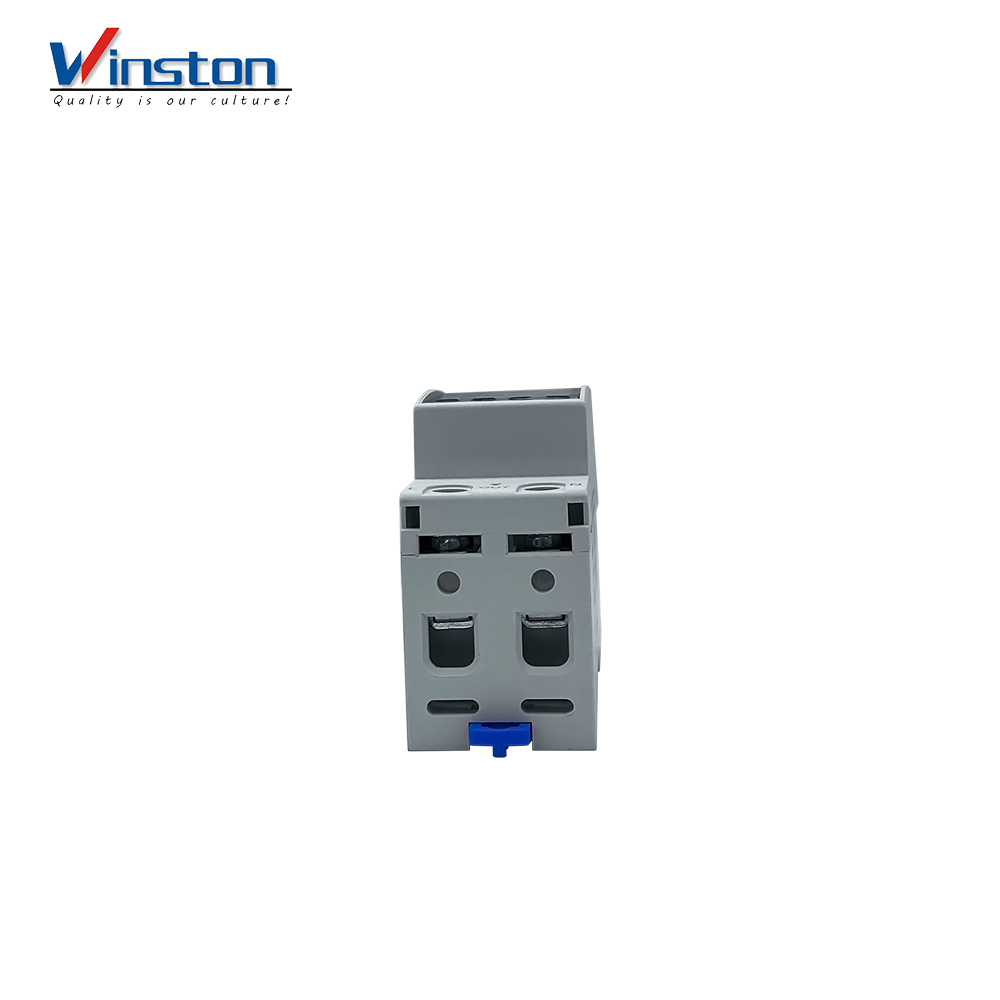

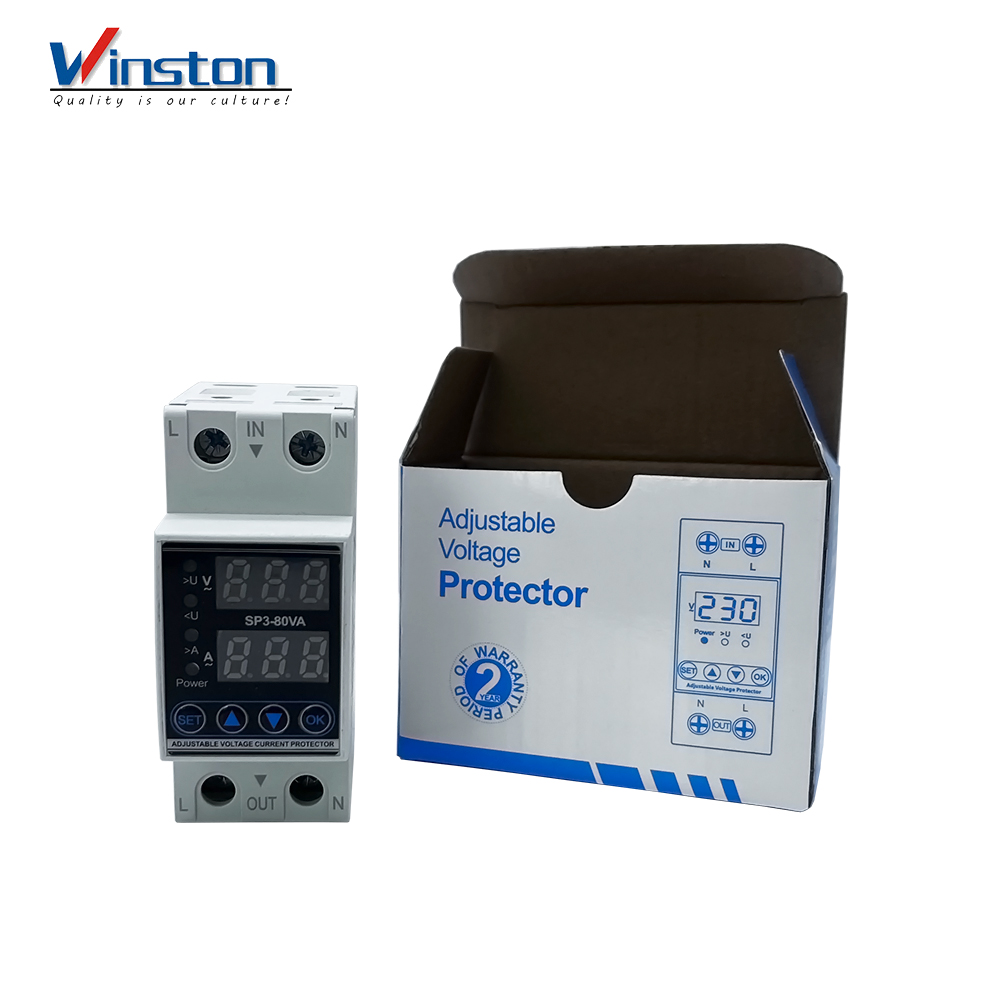

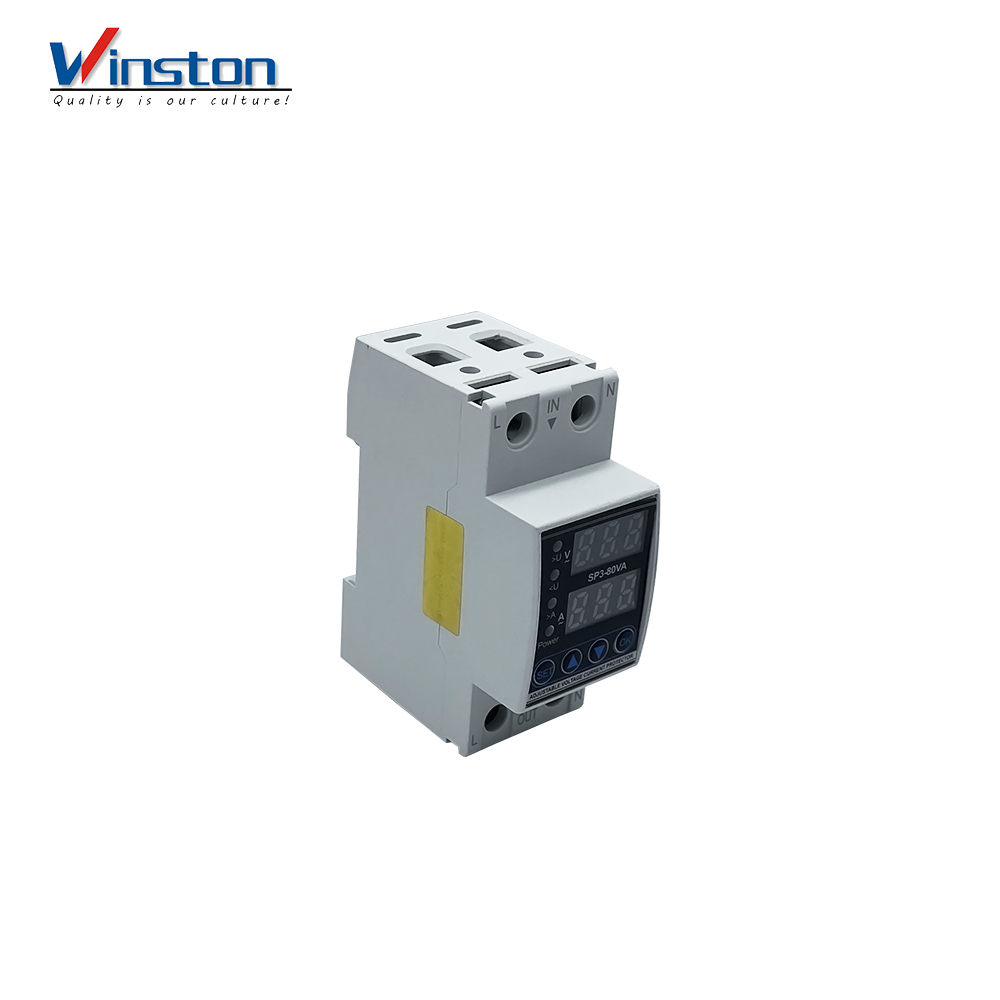

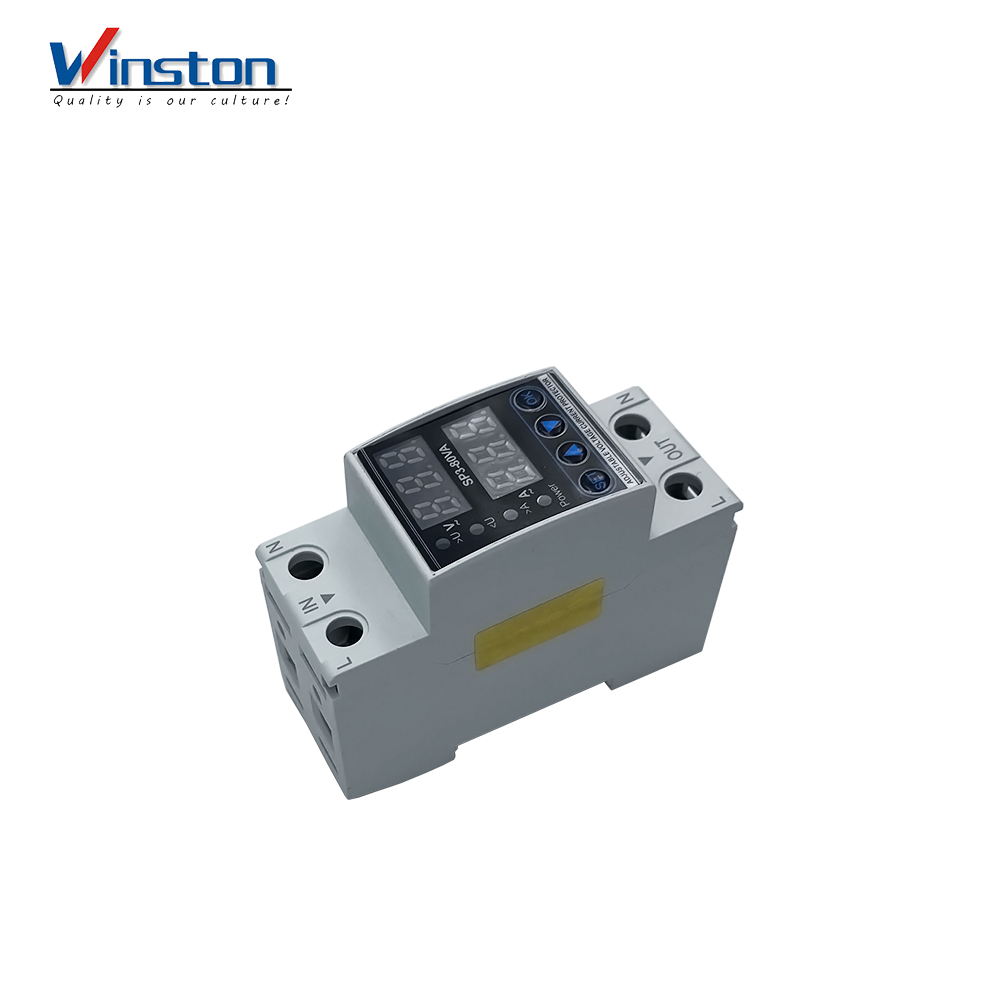

SP3-80VA Adjustable Voltage Current Protector

Name: SP3-80VA Adjustable Voltage Current Protector
Brand: Winston
SKU: 02343
Rating: 4.1 (1222 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Description

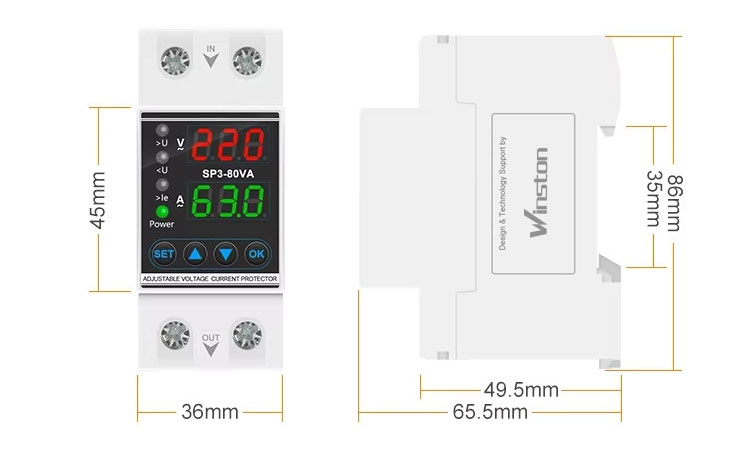

Dimension

Mode code	SP3-80V	SP3-80VA	SP3-63T
Pole number	2P (36mm)
Rated current	40A, 63A, 80A	1-40A, 1-63A, 1-80A	1-40A, 1-63A

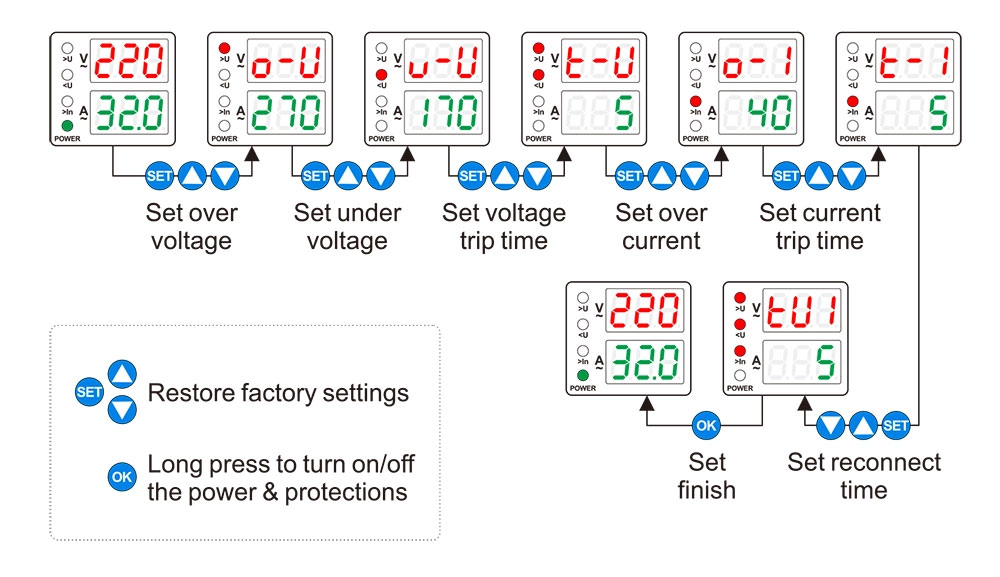

Over-voltage range	230-300V (Default 270V)/120-170V (Default 135V)
Under-voltage range	110-210V (Default 170V)/60-110V (Default 90V)
Tripping delay time	1-30S (Default 5S)
Reconnect delay time	1-500S (Default 5S)
Power consumption	<2W
Energy measurement	No		0-9999KW/h class 1
Accuracy	<1%
Altitude	<2000M
Ambient temperature	-20°C-70°C
Electro-mechanical life	10,000 times
Installation	35mm symmetrical DIN rail
Connections	Screw terminal & pillar terminal with clamp
Application	Environments of electric, industry and commerce
