Model
|
HLG-150-12
|
HLG-150-24
|
HLG-150-36
|
HLG-150-48
|
|
DC output voltage, current
|
12V 0~12.5A
|
24V 0~6.3A
|
36V 0~4.2A
|
48V 0~3.2A
|
|
Wave and noise
|
180mVp-p
|
180mVp-p
|
200mVp-p
|
200mVp-p
|
|
Inlet wire stability
|
± 0.5%
|
± 0.5%
|
± 0.5%
|
± 0.5%
|
|
Load stability
|
±2%
|
± 0.5%
|
± 0.5%
|
± 0.5%
|
|
Efficiency
|
88%
|
90%
|
90.5%
|
91.5%
|
|
Adjustable range for DC voltage
|
±0%
|
±0%
|
±0%
|
±0%
|
|
Input voltage range
|
100~264VAC /135~373V DC 47~63Hz
|
|||
|
Impact current
|
Cold start current 45A/230VAC
|
|||
|
Overload protection
|
95%~108% Automatically recover after troubleshooting
|
|||
|
Overvoltage protection
|
115%~ 135% Hiccup mode, automatically restored after troubleshooting
|
|||
|
Short circuit protection
|
Protection type: Hiccup mode, automatically restored after troubleshooting
|
|||
|
Setup, rise, hold up time
|
500ms, 30ms, 20ms/230VAC(full load)
|
|||
|
Withstand voltage
|
I/P-O/P: 1.5kV I/P-FG: 1.5kV O/P-FG: 0.5kV Iminute
|
|||
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG: 100M Ohms / 500VDC/25 C /70%RH
|
|||
|
Working temperature
|
-20℃ ~+60℃
|
|||
|

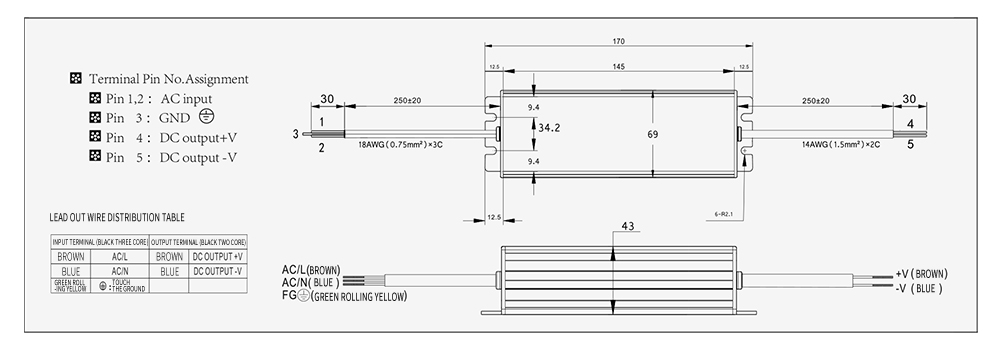

Dimension
|
170×69×43mm
|
|||
|
Weight
|
0.5kg
|
|||
|
Packing
|
39.5×23×26.5CM/30PCS/15kg
|
|||
