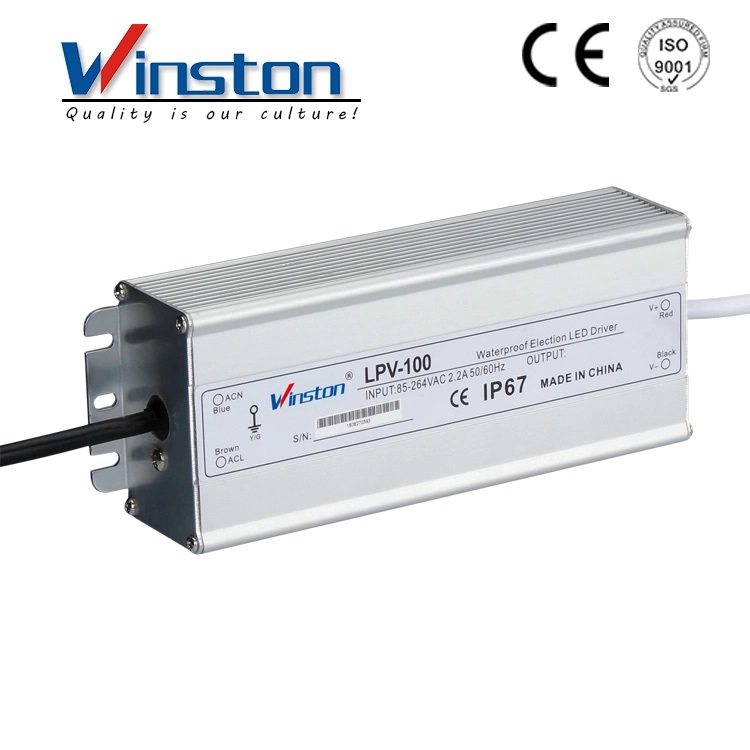

| Model | LPV-100-12 | LPV-100-24 | |
| output | DC voltage | 12V | 24V |
| Voltage tolerance | ±1% | ±1% | |
| Rated current | 8.5A | 4.5A | |
| Current range | 0~8.5A | 0~4.5A | |
| Rated power | 100W | 100W | |
| Ripple&noise | 100mvp-p | 150mvp-p | |
| input | Voltage range | 90~264VAC,126~373VDC | |
| Frequency | 47~63HZ | ||
| AC current | 2.4A/115VAC, 1.2A/230VAC | ||
| Efficiency | 82% | 84% | |
| Inrush current | Cold start current 20A/115VAC, 40A/230VAC | ||
| Leakage current | <2.5mA/240VAC | ||
| protection | Over load | Rated output power 105%~135%start over load protection | |
| Protection type:hiccup mode,auto-recovery after fault condition is removed | |||
| Over voltage | 15.6~17.8V | 30.6~33.2V | |
| Protection type:hiccup mode,auto-recovery after fault condition is removed | |||
| Over temperature | Shell temp≥85°C,start over temperature protection | ||
| Protection mode:cutoff output,auto-recovery after temperature become normal | |||
| environment | Working temp,humidity | -10°C~+60°C,20%~90%RH | |
| Storage temp.humidity | -20°C~+85°C,10%~95%RH non condensing | ||
| Withstand vibration | 10~500HZ,2G 10min/1cycle,period for 60minutes,each axes | ||
| safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| Isolated resistance | I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC | ||
| Fits | Safety standard | Fit UL1012,IP67 protect level | |
| tandard | EMC standard | Fit EN55022,CLASSA | |
| Others | Dimension | 183*71*47mm (L*W*H) | |
| Weight/packing | 18PCS/CTN 47*20*18.5cm | ||
| Note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. | ||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | |||
