Single output: power 120W
Input voltage: 95～264VAC/135～373VDC
| Model | XLG-120-12 | XLG-120-24 | XLG-120-36 | XLG-120-48 |
| DC output voltage, current | 12V 0～10A | 24V 0～5A | 36V 0～3.3A | 48V 0～2.5A |
| Wave and noise | 150mVp-p | 180mVp-p | 180mVp-p | 200mVp-p |
| Inlet wire stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±2% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 87.5% | 89% | 90% | 91% |
| Adjustable range for DC voltage | ±0% | ±0% | ±0% | ±0% |
| Input voltage range | 95～264VAC /135～373V DC 47～63Hz | |||
| Impact current | Cold start current 55A/230VAC | |||
| Overload protection | 95%～108% Automatically recover after troubleshooting | |||
| Short circuit protection | Protection type: Hiccup mode, automatically restored after troubleshooting | |||
| Setup, rise, hold up time | 500ms, 80ms，16ms/230VAC | |||
| Withstand voltage | I/P-O/P：1.5kV I/P-FG：1.5kV O/P-FG：0.5kV 1minute | |||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG: 100M Ohms / 500VDC / 25℃ /70%RH | |||
| Working temperature | -20℃～+60℃ | |||

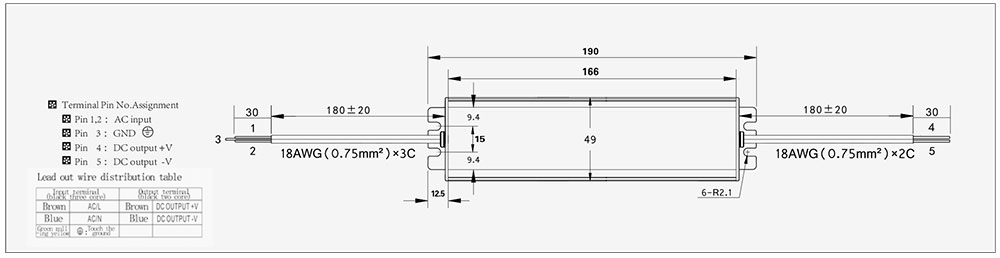

| Dimension | 190×49×34mm | |||
| Weight | 0.5kg | |||
| Packing | 39.5×23×26.5CM/30PCS/15kg | |||
