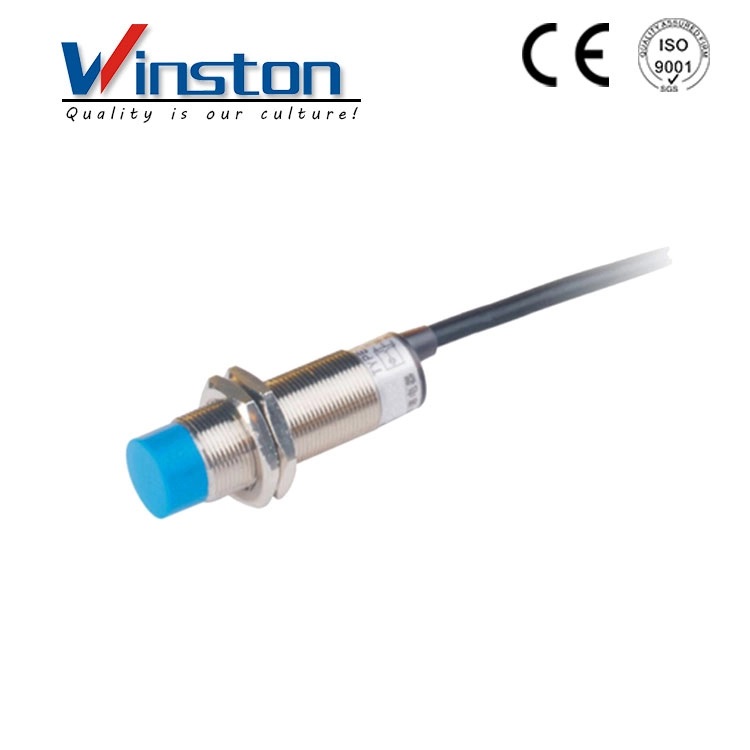

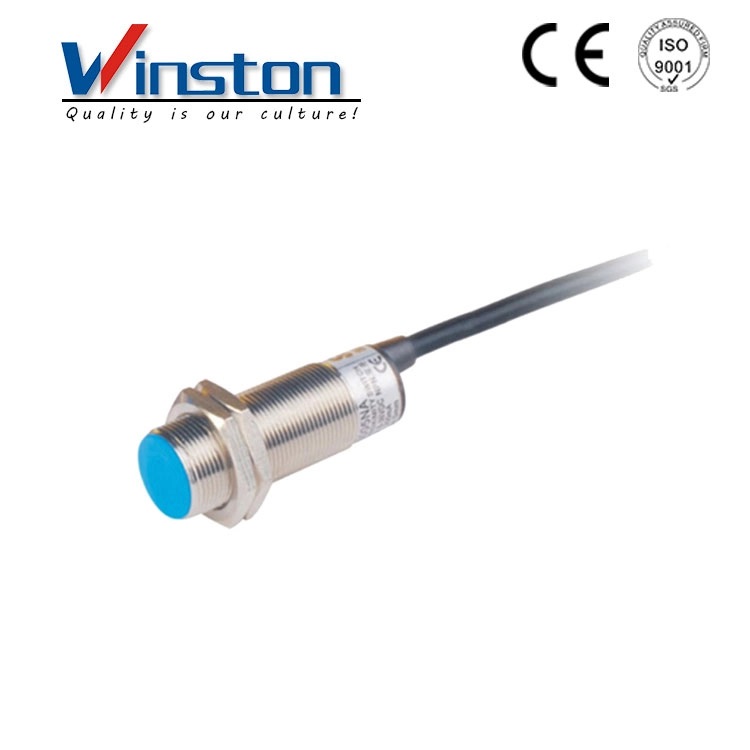

XM12 Inductive Linear Proximity Sensor

Name: XM12 Inductive Linear Proximity Sensor
Brand: Winston
SKU: 02045
Rating: 4.1 (1073 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Technic data

XM12	Detection Distance		2mm	4mm
	DC15-30VDC	Current type	XM12-3002PMI	XM12-3004PMI
		Voltage type	XM12-3002PMU	XM12-3004PMU
	Consumption	at the time of detection	≤200mA…＜4mA
		at the time of non-detection	≤20mA
	Loading resistance	Current type	0-300Ω
		Voltage type	≥2.2KΩ
	Output	Current type	4-20mA
		Voltage type	0-5V/0-10V
	Voltage fluctuation		≤5%

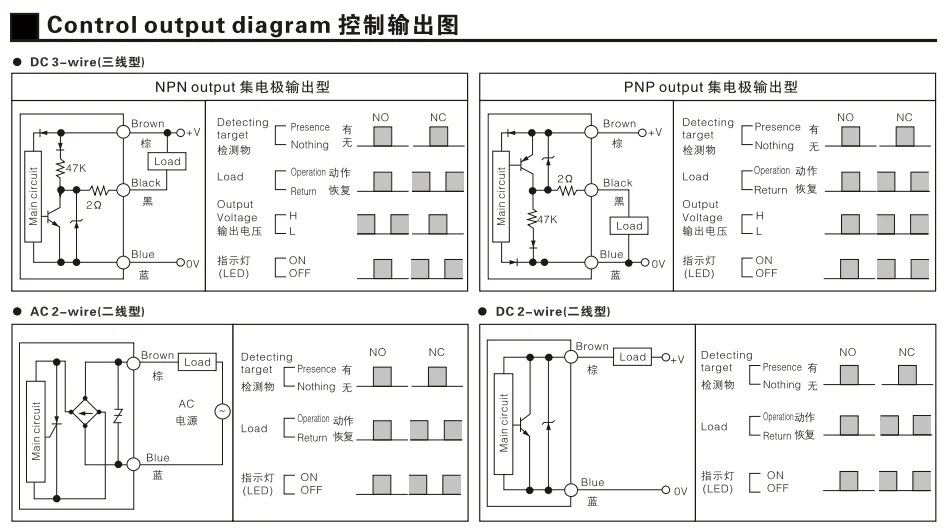

	Output signal		PNP Simulation
	Linear deviation		±5%
	Ambient temperature		—10℃ ~ + 70 ℃
	Shell material		Plastic,Metal
	Protection grade		IP54
