XMF10 Inductive proximity sensor

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

XMF10 Inductive linear displacement sensor

Working principle:

1.Inductive proximity switch with analog quantity output has the similar work principle with general inductive proximity switch. The energy of oscillator syst-em

decreases when a metal object approaches the inductive side. The energy decrease degree indic ates the distance between the metal object and thesensor.

The energy consumption is transformed into measuring sign inan additional device and magnified through linear treatment.(Fig.5) Provide astandard analog

2.signal at output terminal(0~5V or 4-20mA···)

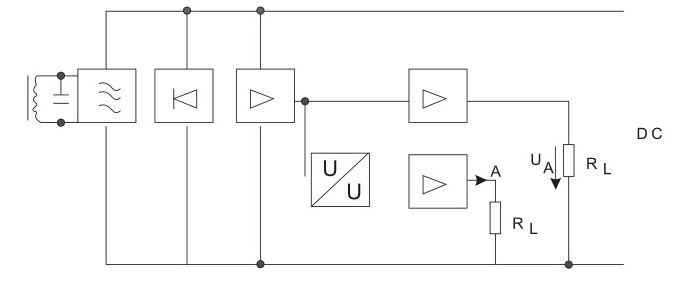

Work principle of inductive proximiy switch with analog quantity

proximity switch work principle.jpg

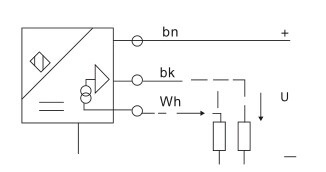

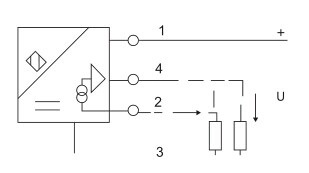

lead out with connecting terminal	lead out with conductor

Note: the color of core line BN=brown, BK=black, BU=blue, and YE=yellow

Model explanation of the proximity switch:

1.Switch category:

LM:inductance type

CM:capacitance type

SM:Hall type

AM:safte explosion-proof type

XM:Mini linear type

HM:Reed type

RU:Ultrasonic type

5.Output form:

N:Three wire dc NPN output

P:Three wire dc PNP output

L:Two wire dc output

:Two wire ac output

J:Relay contact output

NP:NPN+PNP double output

2.Outward appearance code:

C:Cylinder type;

F:Angular column type and plane installation type)

6.Output state:

A:Normally open(NO) B:Normally close(NC)

C:Normally open(NO)+Normally close(NC)

MU:Mimic voltage MI:Mimic current

MUI:Voltage and current double output

3.Working voltage:

30:6~36VDC 310:5~24VDC 320:12~60VDC

330:10~30VDC 340:10~55VDC 350:10~60VDC

360:5~36VDC 20:90~250VAC 210:24~250VAC

220:380VAC 40:12~240VDC/24~240VAC

50:Special voltage

7.Subsidiart functions:

T:with aviation connector

Y:water proof,oil proof

I:Special requirement

H:High temperature resistance

R:Ring type

4.Detection distance:

01:1mm 05:5mm

10:10mm ......

8.Long distance

L:Long distance
