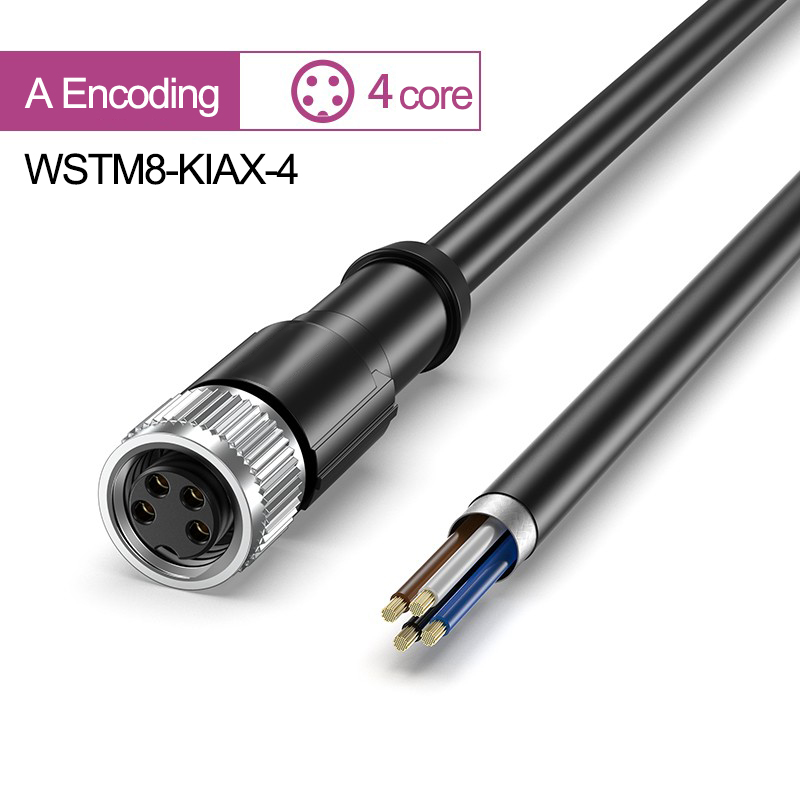

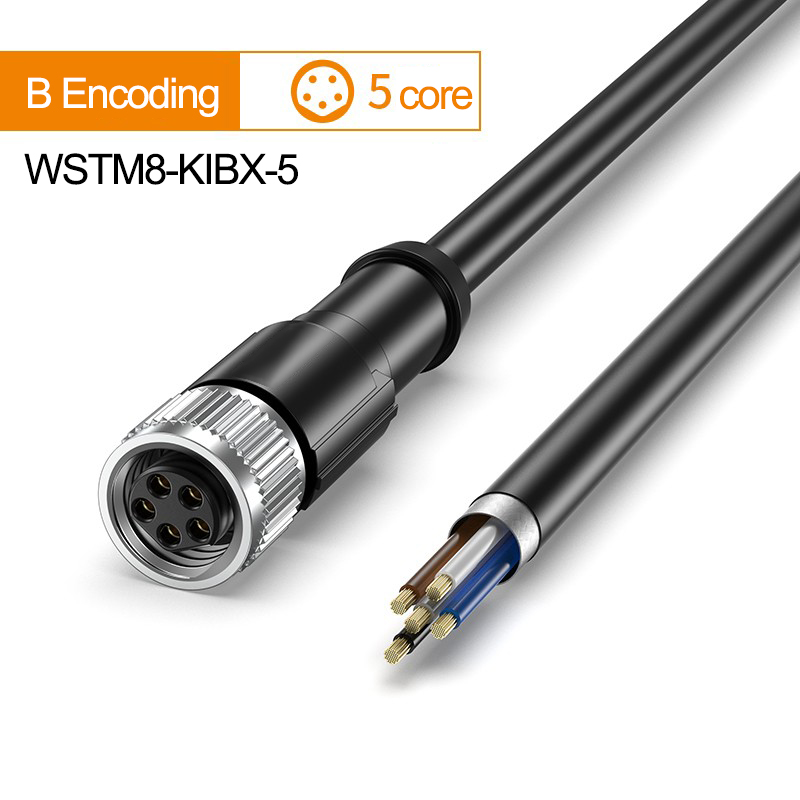

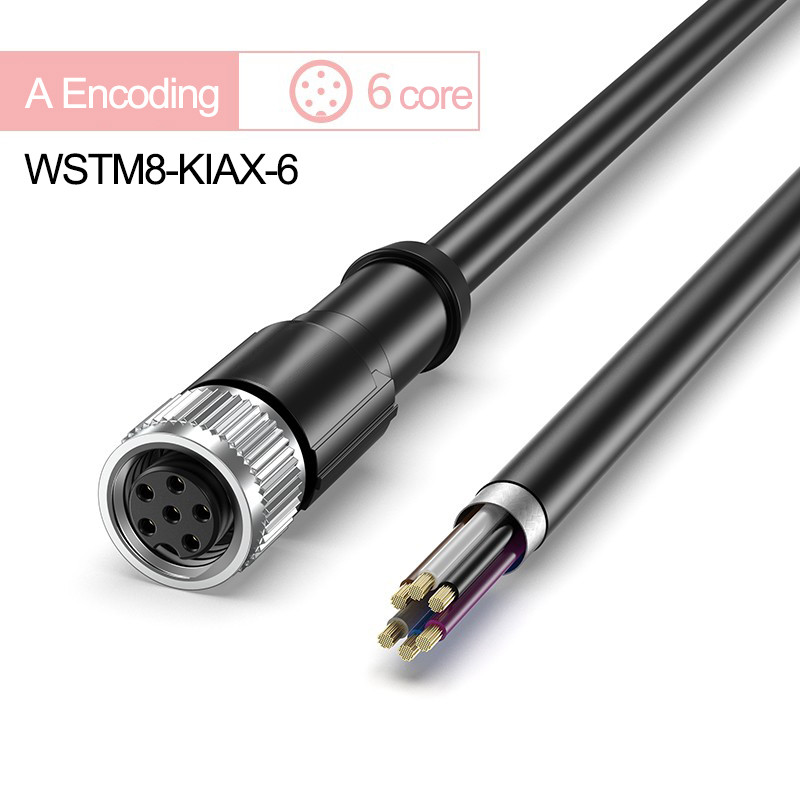

M8 hole straight head A/B/D coding + free outlet end
Sensor/actuator cable
2m-PVC/PUR[Shielding]
| General data | ||||||
| Number of cores | 3 | 4 | 5 | 6 | 8 | |
| Rated current (40°C) | 4A | 3A | 1.5A | |||
| Rated voltage | 60V | 30V | ||||
| Conductor cross section | 0.25mm2 [AWG24] | 0.14mm2[AWG26] | ||||
| Contact resistance | ≤ 5 mΩ | |||||
| Insulation resistance | ≥ 100 MΩ | |||||
| Cable length | 2.0 m | |||||
| Strip length of the free outlet end of the cable | 35mm | |||||
| Net weight per piece | 0.062kg | 0.065kg | 0.070kg | 0.075kg | 0.080kg | |
| Ambient temperature (operating) | -25 °C ... 90 °C | |||||
| Technical characteristics | ||||||
| Technical standard/specification | IEC61076-2-104 ；IEC60947-2 ；IEC61076-2-114 | |||||
| Anti-insertion coding | A-standard [3-core; 4-core; 6-core; 8-core]/ B-standard [5-core]/ D-standard [4-core] | |||||
| Surge voltage Class | Ⅱ | |||||
| Pollution Level | 3 | |||||
| Protection Level | IP65/IP67 protection class | |||||
| Insert/remove period | ≥100 | |||||
| Torque | 0.2Nm | |||||
| Contact material | CuSn | |||||
| Material contact surface | Ni/Au | |||||
| Core end material | PA66 | |||||
| Coated material | TPE | |||||
| Lock nut | Copper H59 nickel plated | |||||
| O-ring material | NBR | |||||
| Cable technical parameters | ||||||
| Number of cores | 3 | 4 | 5 | 6 | 8 | |
| Cable sheath material | PVC PUR PVC[Shielding] PUR[Shielding] | |||||
| Core wire cross-sectional area | 0.25mm2 [AWG24] | 0.14mm2[AWG26] | ||||
| AWG signal cable | 24 | 26 | ||||
| Jacket color | black | |||||
| Core color | See Wiring Diagram for details. | |||||
| Insulation resistance | ≥100GΩ*km(20℃) | |||||
| Wire resistance | ＜78Ω/km(20℃) | ＜142Ω/km(20℃) | ||||
| Core structure | 32*0.10mm | 18*0.10mm | ||||
| Cable outer diameter OD | 4.5±0.10 | |||||
| Minimum bending radius, fixed installation | 22mm | 23.5mm | 25mm | 25.5mm | ||
| Minimum bending radius, mobile installation | 44mm | 47mm | 50mm | 51mm | ||
| Bending times | 4000000 | |||||
| Lateral trajectory | 10m | |||||
| Lateral speed | 3m/s | |||||
| Acceleration | 10m/s2 | |||||
| Flame retardation | Conforms to DIN UL2464/UL20549 | |||||
| halogen-free | In accordance with DIN VDE 0472 Chapter 815 | |||||
| Ambient temperature | Fixed mounting | -40 °C ... 80 °C | ||||
| Movable mounting | -25 °C ... 80 °C | -5 °C ... 80 °C | ||||
