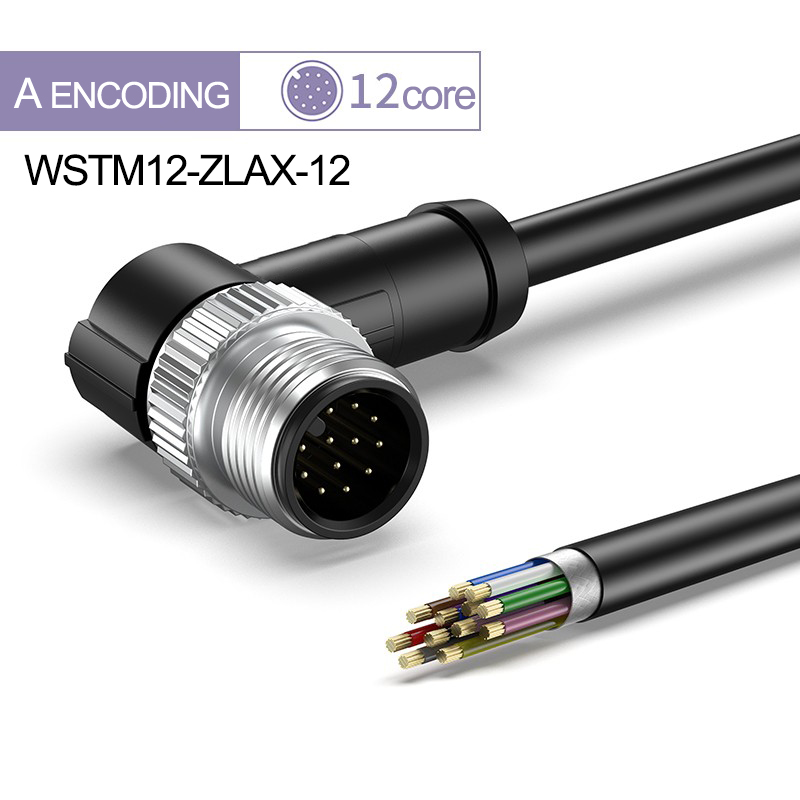

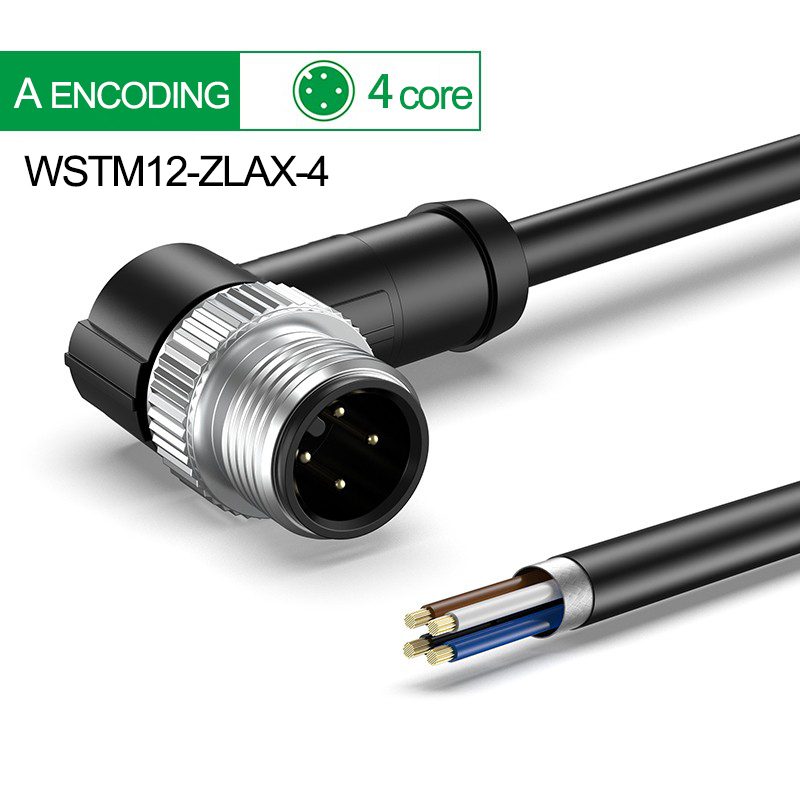

WSTM12-ZLA Aviation Electrical Cable

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

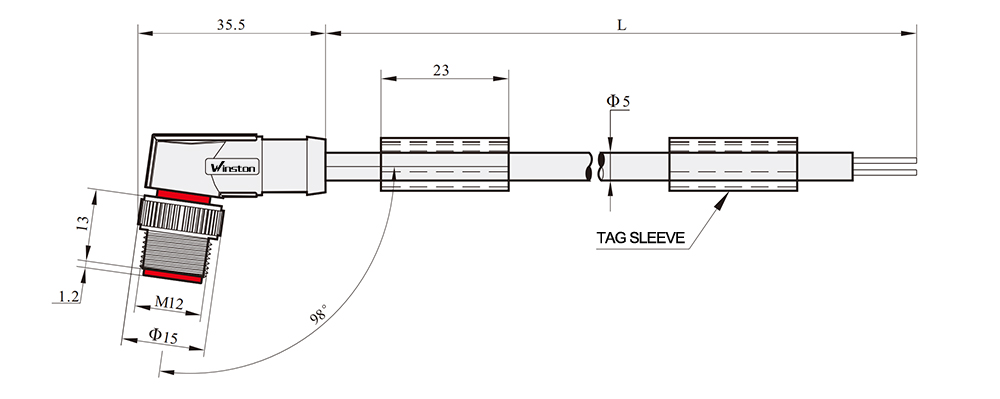

M12 Pin straight head A coding + free outlet end
Sensor/actuator cable
2m-PVC/PUR[Shielding]

General data

Number of cores

3

4

5

8

12

17

Rated current (40°C)

4A

2A

1.5A

Rated voltage

250V

60V

30V

30V

Conductor cross section

0.34mm2 [AWG22]

0.25mm2 [AWG24]

0.14mm2 [AWG26]

Contact resistance

≤ 5 mΩ

Insulation resistance

≥ 100 MΩ

Cable length

2.0m

Strip length of the free outlet end of the cable

35mm

Net weight per piece

0.090kg

0.093kg

0.095kg

0.115kg

0.126kg

0.145kg

Ambient temperature (operating)

-25 °C ... 90 °C

Technical characteristics

Technical standard/specification

IEC61076-2-101 ；IEC60947-2

Anti-insertion coding

A- Standard

Surge voltage Class

Ⅱ

Pollution Level

3

Protection Level

IP65/IP67 protection class

Insert/remove period

≥100

Torque

0.4Nm

Contact material

CuSn

Material contact surface

Ni/Au

Core end material

PA66

Coated material

TPE

Lock nut

Copper H59 nickel plated

O-ring material

NBR

Cable technical parameters

Number of cores

3

4

5

8

12

17

Cable sheath material

PVC PUR PVC[Shielding] PUR[Shielding]

Core wire cross-sectional area

0.34mm2 [AWG22]

0.25mm2 [AWG24]

0.14mm2 [AWG26]

AWG signal cable

22

24

26

Jacket color

black

Core color

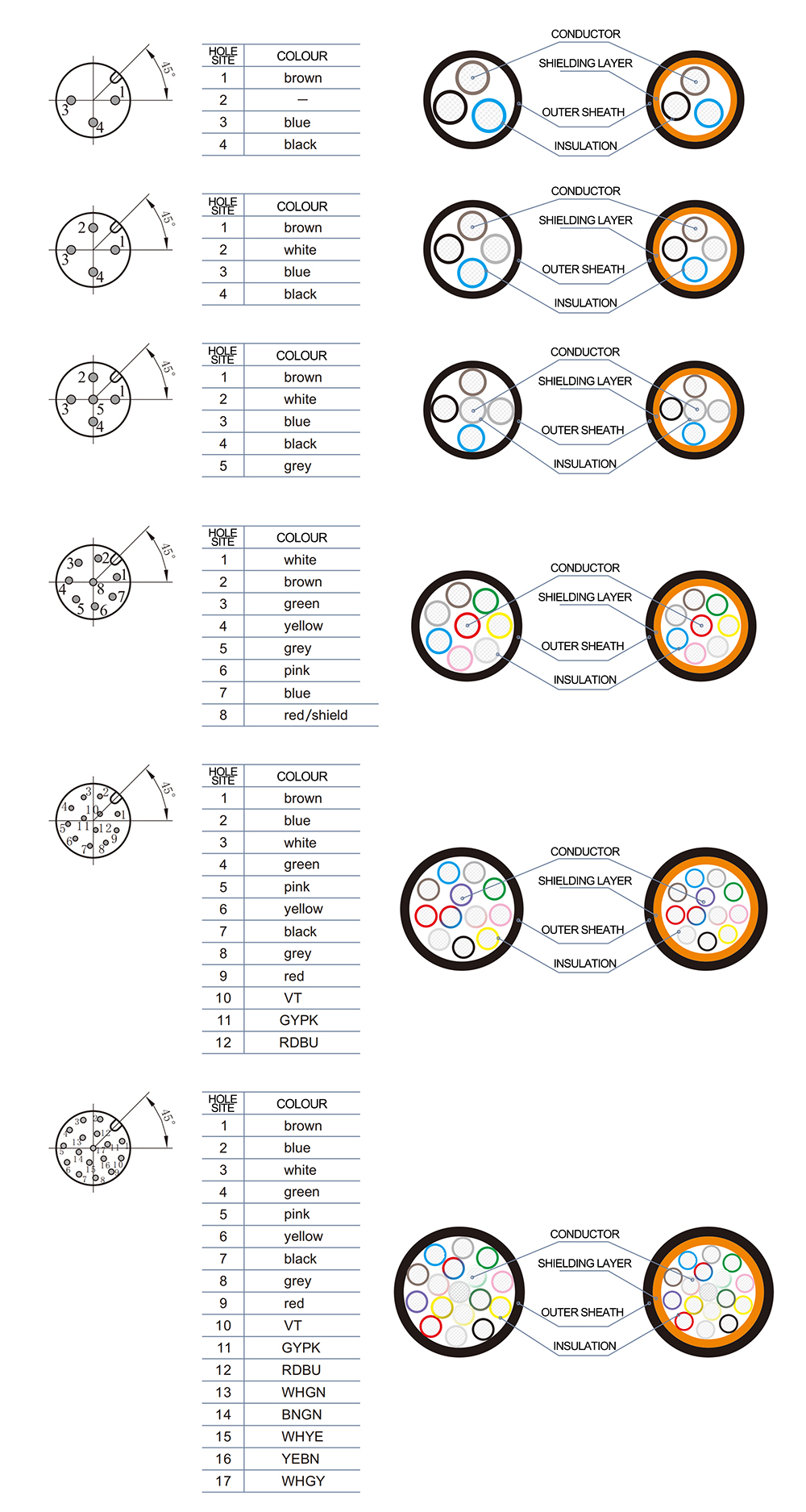

See Wiring Diagram for details.

Insulation resistance

≥100MΩ*km(20℃)

Wire resistance

＜58Ω/km(20℃)

＜78Ω/km(20℃)

＜142Ω/km(20℃)

Core structure

42/0.10±0.008mm

32/0.10±0.008mm

18/0.10±0.008mm

Cable outer diameter OD

5.0±0.10

5.5±0.10

6.0±0.10

7.0±0.10

Minimum bending radius, fixed installation

22mm

23.5mm

25mm

48mm

70mm

85mm

Minimum bending radius, mobile installation

44mm

47mm

50mm

60mm

85mm

100mm

Bending times

4000000

2000000

Lateral trajectory

10m

Lateral speed

3m/s

Acceleration

10m/s2

Flame retardation

Conforms to DIN UL2464/UL20549

halogen-free

In accordance with DIN VDE 0472 Chapter 815

Ambient temperature

-40 °C ... 80 °C(Fixed mounting)

-25 °C ... 80 °CMovable mounting)

-5 °C ... 80 °C(Movable mounting)
