WSTM12-ZID Aviation Electrical Cable

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

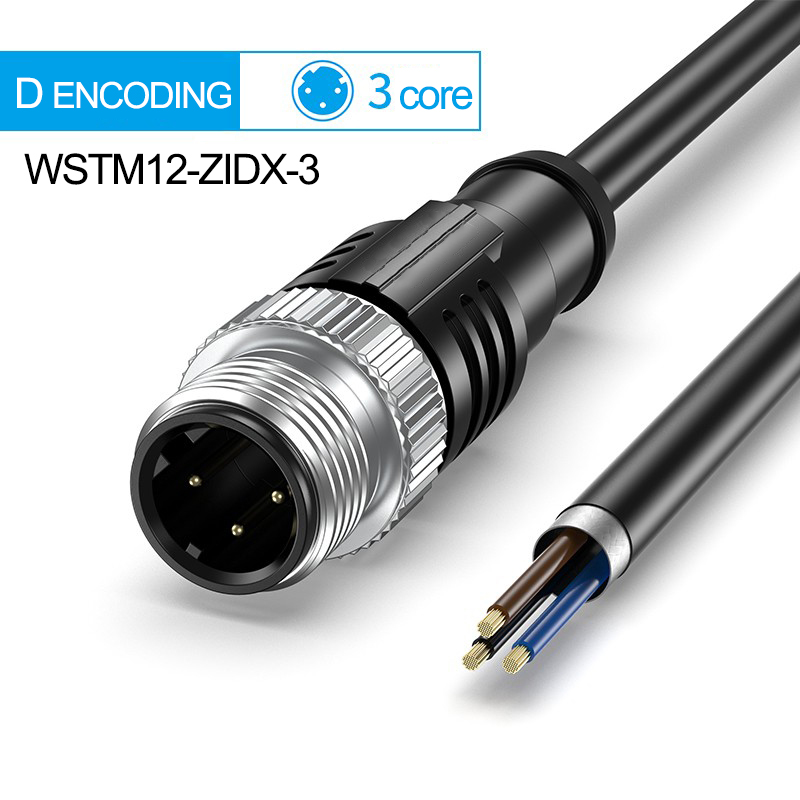

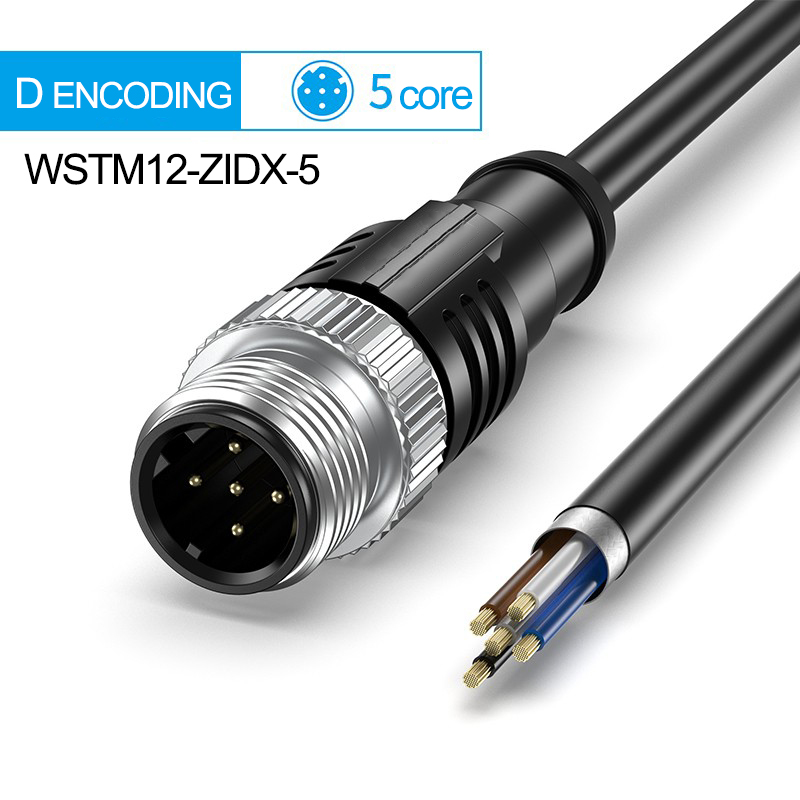

M12 Pin straight head D coding + free outlet end
Sensor/actuator cable
2m-PVC/PUR[Shielding]

General data

Number of cores

3

4

5

Rated current (40°C)

4A

Rated voltage

250V

60V

Conductor cross section

0.34mm2 [AWG22]

0.25mm2 [AWG24]

Contact resistance

≤5 mΩ

Insulation resistance

≥100 MΩ

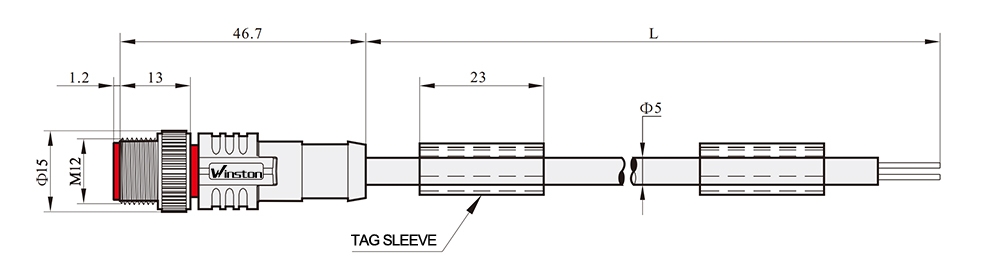

Cable length

2.0 m

Strip length of the free outlet end of the cable

35mm

Net weight per piece

0.090kg

0.093kg

0.095kg

Ambient temperature (operating)

-25 °C ... 90 °C

Technical characteristics

Technical standard/specification

IEC61076-2-101 ；IEC60947-2

Anti-insertion coding

D-standard

Surge voltage Class

Ⅱ

Pollution Level

3

Protection Level

IP65/IP68/IP69Kprotection class

Insert/remove period

≥100

Torque

0.4Nm

Contact material

CuSn

Material contact surface

Ni/Au

Core end material

PA66

Coated material

TPE

Lock nut

Copper H59 nickel plated

O-ring material

NBR

Cable technical parameters

Number of cores

3

4

5

Cable sheath material

PVC PUR PVC[Shielding] PUR[Shielding]

Core wire cross-sectional area

0.34mm2 [AWG22]

0.25mm2 [AWG24]

AWG signal cable

22

24

Jacket color

black

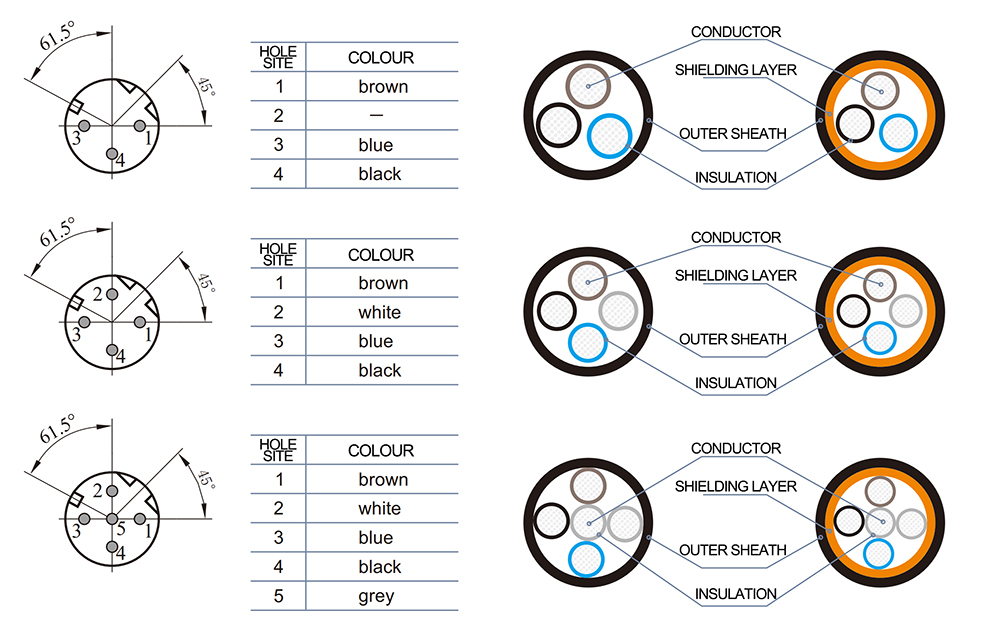

Core color

See Wiring Diagram for details.

Insulation resistance

≥100MΩ*km(20℃)

Wire resistance

＜58Ω/km(20℃)

Core structure

42/0.10±0.008mm

32/0.10±0.008mm

Cable outer diameter OD

5.0±0.10

Minimum bending radius, fixed installation

22mm

23.5mm

25mm

Minimum bending radius, mobile installation

44mm

47mm

50mm

Bending times

4000000

Lateral trajectory

10m

Lateral speed

3m/s

Acceleration

10m/s2

Flame retardation

Conforms to DIN UL20549

halogen-free

In accordance with DIN VDE 0472 Chapter 815

Ambient temperature

-40 °C ... 80 °C( Fixed mounting)

-25 °C ... 80 °C(Movable mounting)
