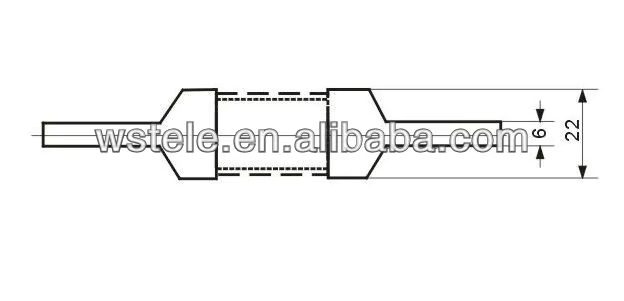

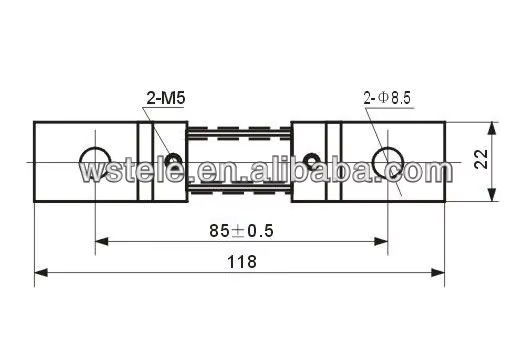

FL-2 150-250A shunt resistor

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

FL-2 150-250A shunt resistor for electronic power meter

Main technical parameters

Applicable standards:
  GB / T 7676.1 ~ 9-1998 "Direct acting indicating analogue electrical measuring instruments and their accessories"
  GB/T5729-94 "Fixed resistors for use in electronic equipment"
  GJB/T360A-96 "electronics and electronic components, test methods"
  GB2423 "electric and electronic products based environmental testing procedures"
Rated current (A): 5 10 15 20 25 30 50 75 100 150 200 250 300 400 500 600 750 1k 1.5k 2k 2.5k 3k 4k 5k 6k

7.5k 10k..
Accuracy: 0.5 (≤ 4kA); 1.0 (5k ~ 1kA).
Rated voltage drop: the standard value of 75mV, user-defined value of 45mV, 50mV, 60mV, 100mV, or other.
Overload performance: 120% rated current, sustained 2h.
Heat load: after stable temperature changes, 50A over the following ≤ 80 °C 50A ≤ 120 °C.
Resistance to mechanical properties: can withstand acceleration of 70 m / s, the impact frequency of 80 to 120 times per minute, 6 hours of transport Britain earthquake.
Environmental Conditions: -40 ~ +60 °C, relative humidity ≤ 95% (35 °C).
