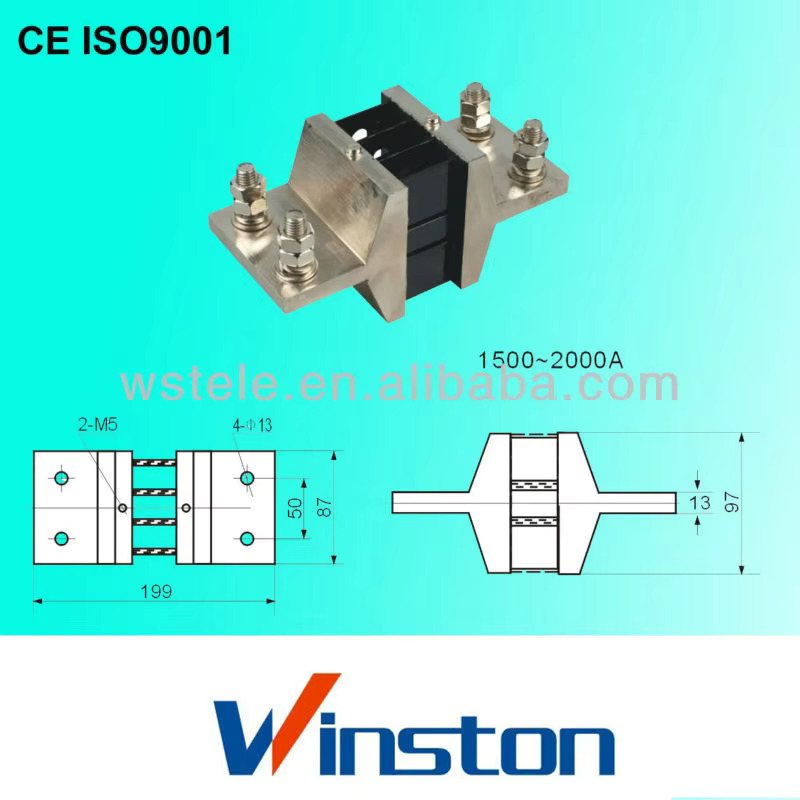

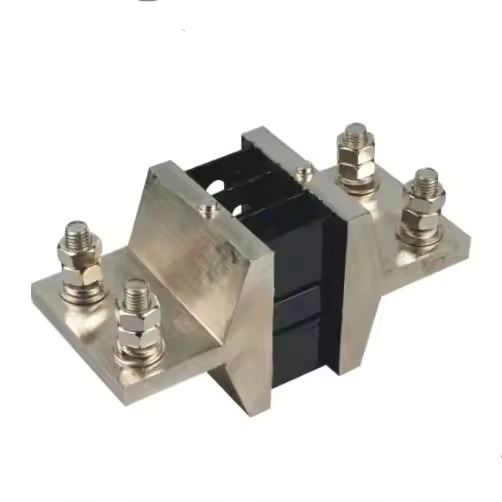

FL-2 2500A 100mV dc current shunt resistor

750A 100mV ac current shunt for electric ammeter

 Main technical parameters

Applicable standards:
  GB / T 7676.1 ~ 9-1998 "Direct acting indicating analogue electrical measuring instruments and their accessories"
  GB/T5729-94 "Fixed resistors for use in electronic equipment"
  GJB/T360A-96 "electronics and electronic components, test methods"
  GB2423 "electric and electronic products based environmental testing procedures"

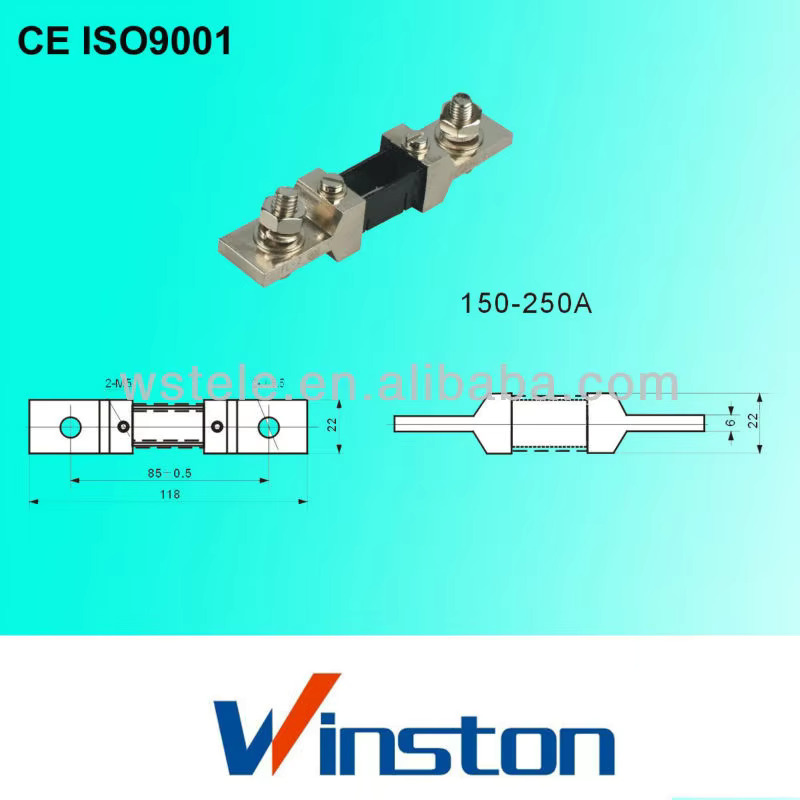

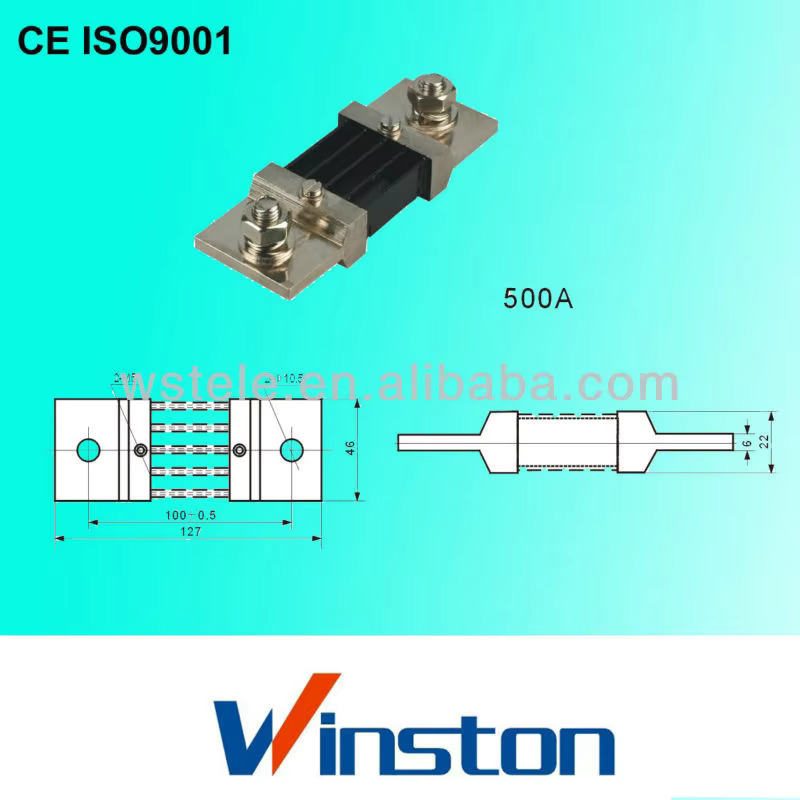

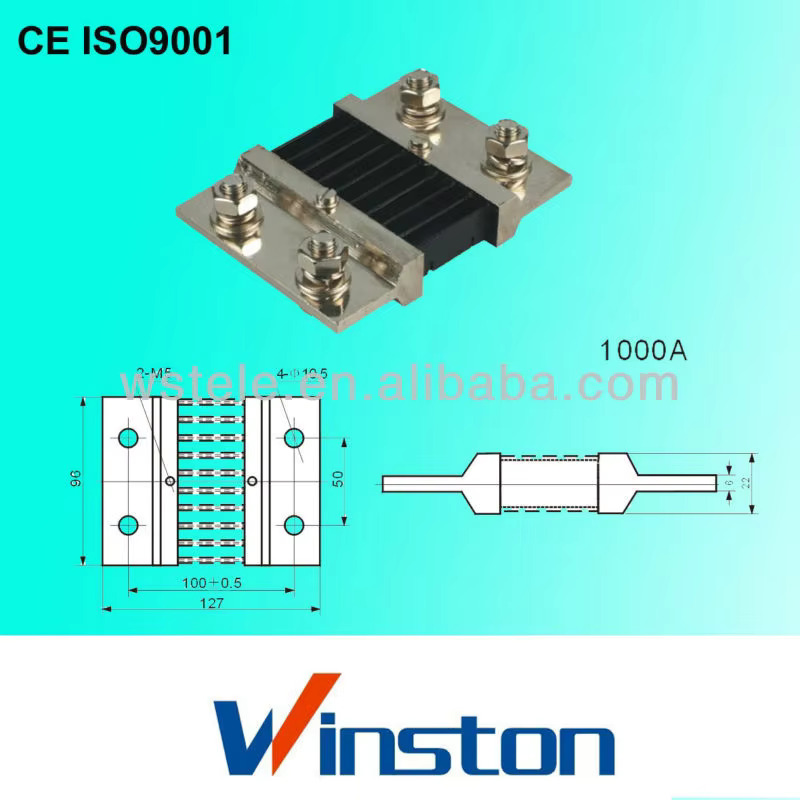

Rated current (A): 5A 10A 15A 20A 25A 30A 50A 75A 100A 150A 200A 250A 300A 400A 500A 600A 750A 1000A 1500A 2000A 2500A 3000A 4000A 5000A 6000A

   7500A 10000A ....
Accuracy: 0.5 (≤ 4kA); 1.0 (5k ~ 1kA).
Rated voltage drop: the standard value of 75mV, user-defined value of 45mV, 50mV, 60mV, 100mV, or other.
Overload performance: 120% rated current, sustained 2h.
Heat load: after stable temperature changes, 50A over the following ≤ 80 °C 50A ≤ 120 °C.
Resistance to mechanical properties: can withstand acceleration of 70 m / s, the impact frequency of 80 to 120 times per minute, 6 hours of transport Britain earthquake.
Environmental Conditions: -40 ~ +60 °C, relative humidity ≤ 95% (35 °C).
