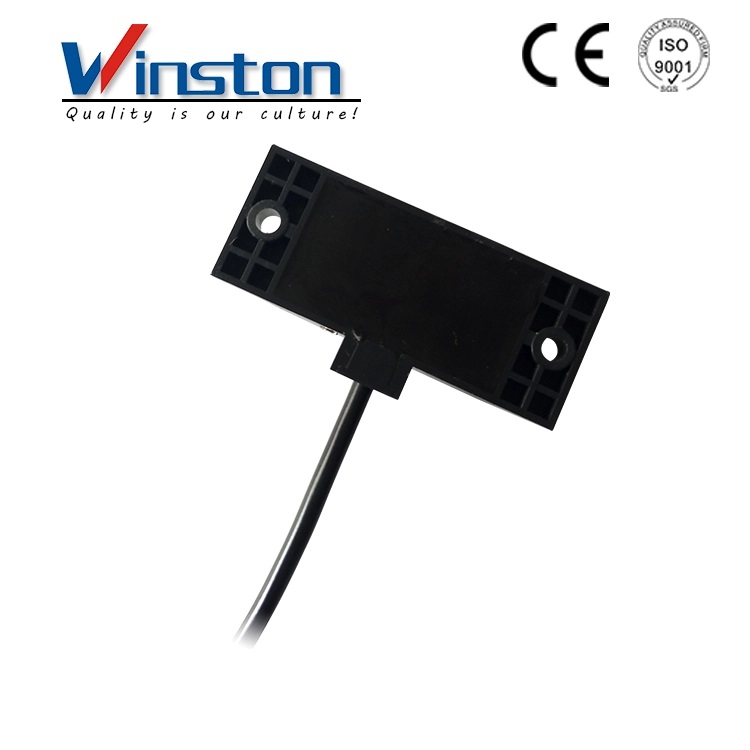

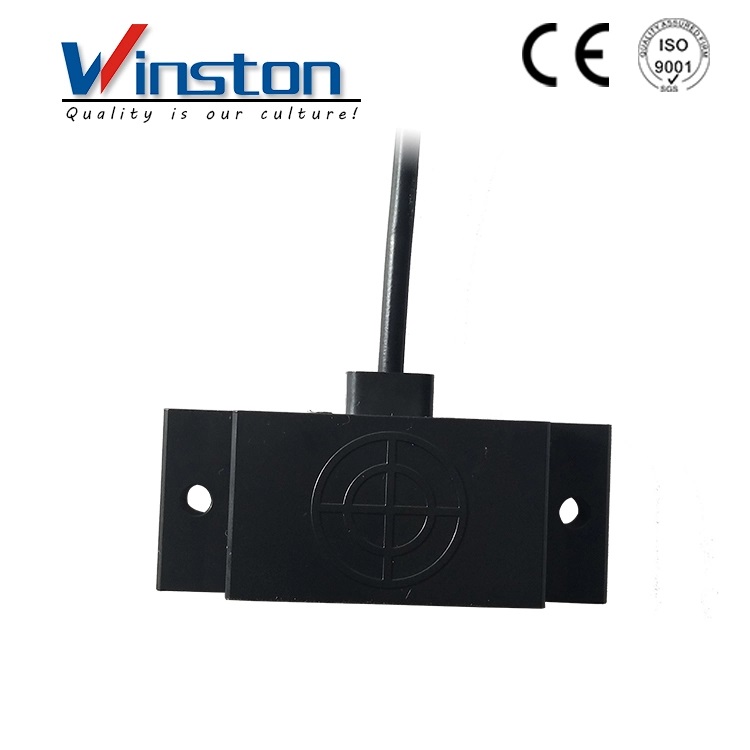

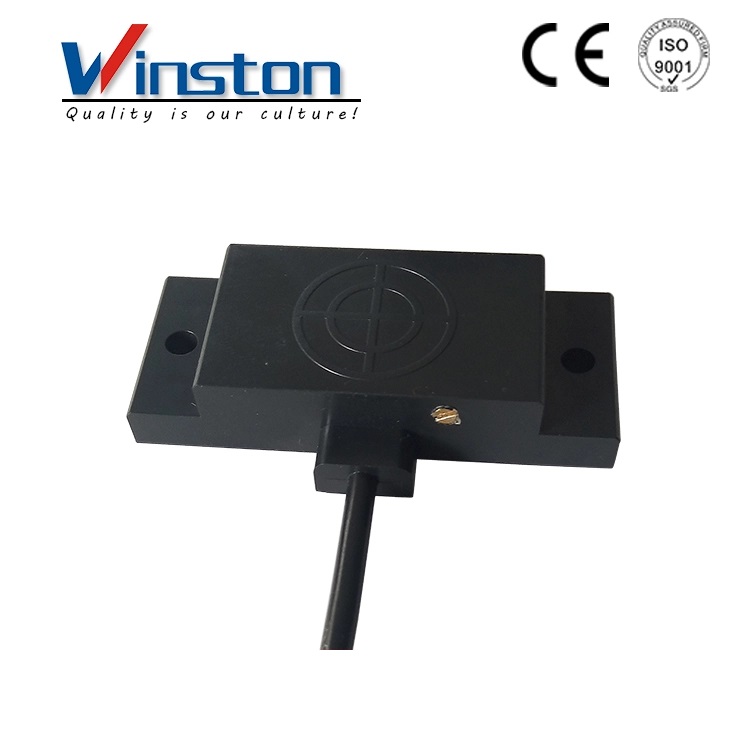

E2K-F10 Capacitive Inductance Proximity Sensor

E2K-F10 Capacitive Inductance Proximity Sensor

Name: E2K-F10 Capacitive Inductance Proximity Sensor
Brand: Winston
SKU: 02036
Rating: 4.1 (1068 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Technical Data

Compact volume
Wide voltage range
Diversified exterior structures

high precision of repeated location

Good performance of anti-interference.

Dust proof,vibration proof,waterproof and Oil-proof.

DETECTION DISTANCE 0-10MM
Non-Flush	DC10-30V	NPN	NO	E2K-F10MC1
			NC	E2K-F10MC2
			NO+NC	E2K-F10MC3
		PNP	NO	E2K-F10MF1
			NC	E2K-F10MF2
			NO+NC	E2K-F10MF3
	AC90-250V	SCR Control-lable silicon	NO	E2K-F10MA0
			NC	E2K-F10MAC

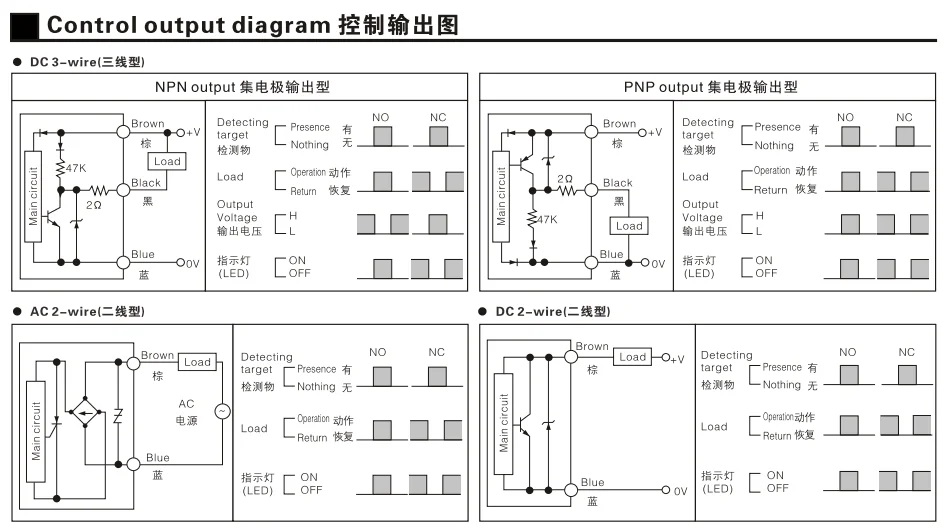

Control output		DC		200mA
		SCR/ Relay		300mA
Output voltage drop DC/AC				DC<3V AC<10V
Consumption current				DC<15mA AC<10mA
Detected object				Conductor and Directric Body
Repeated precision				0.05
DC/AC Response frequency				50Hz/10Hz
Working environment temperature				–25℃~75℃
Insulation resistance				50MΩ
Shell material				ABS Plastic
Protection grade				IEC standard IP54
Altemative model at home and abroad
