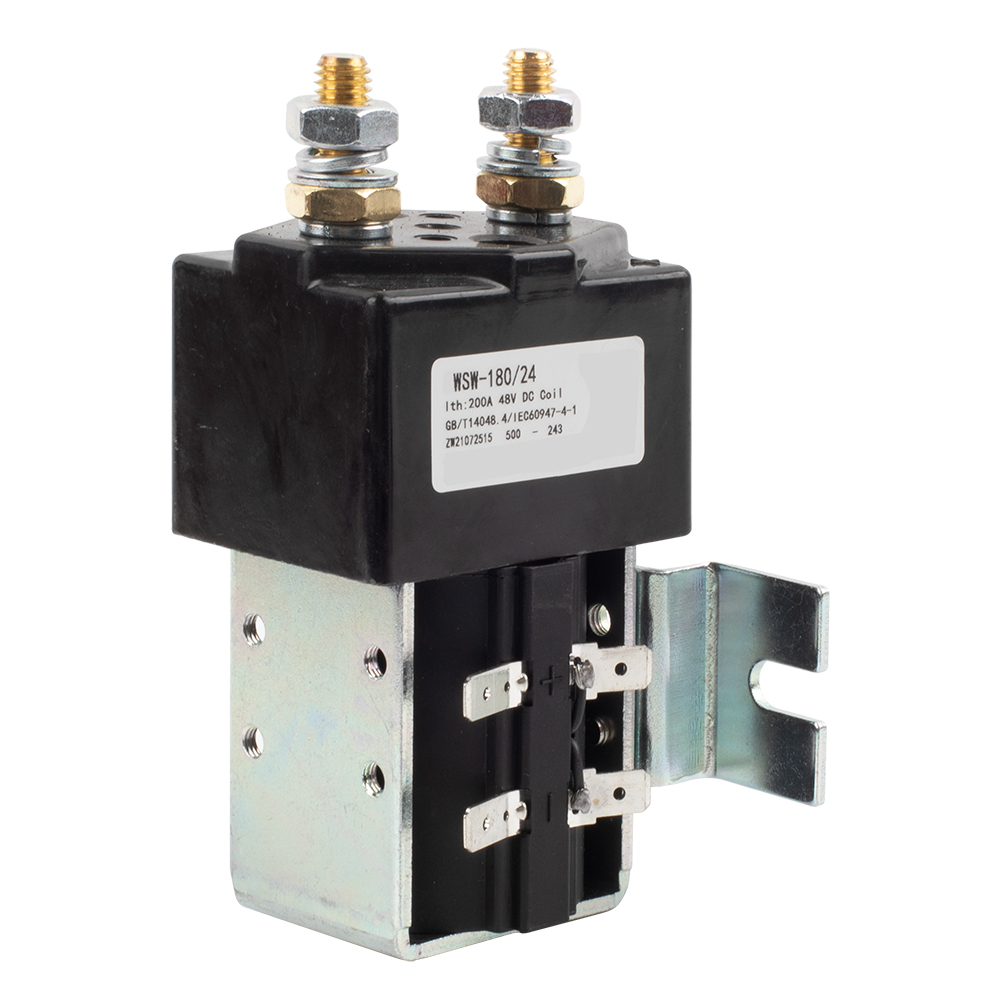

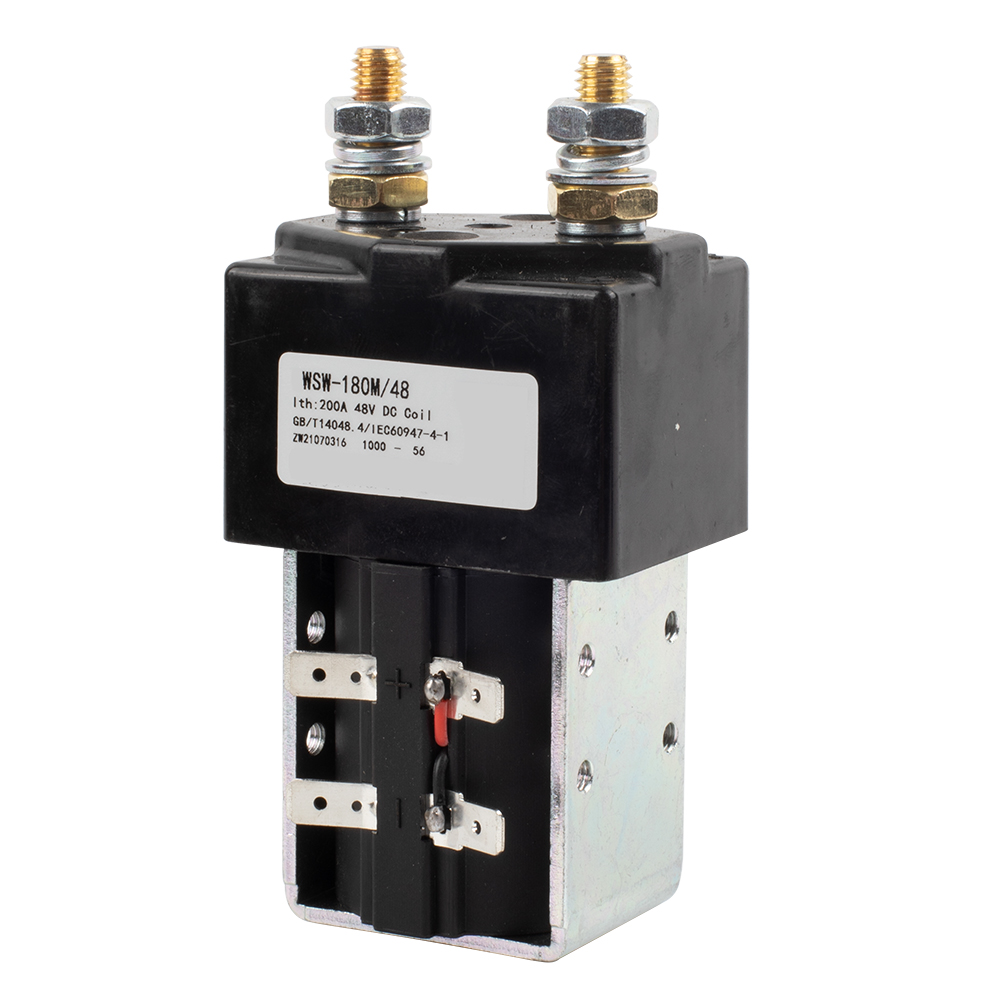

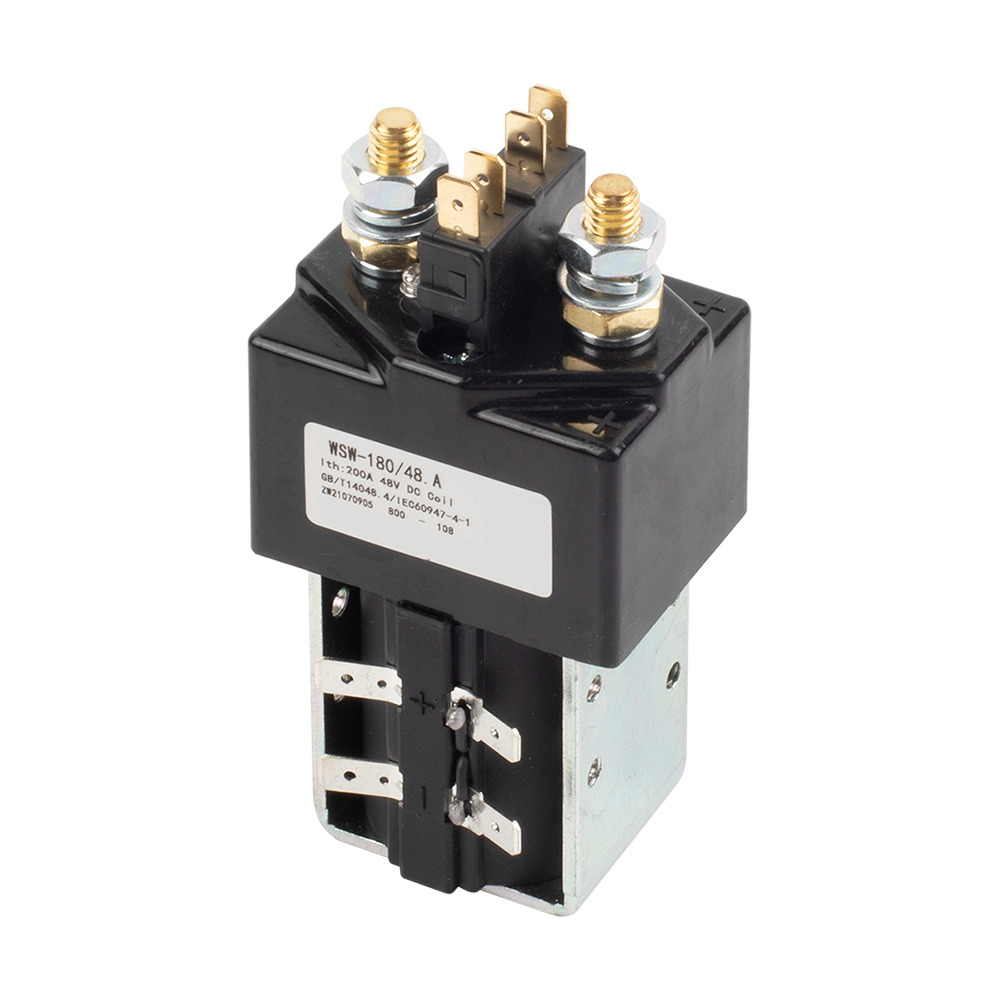

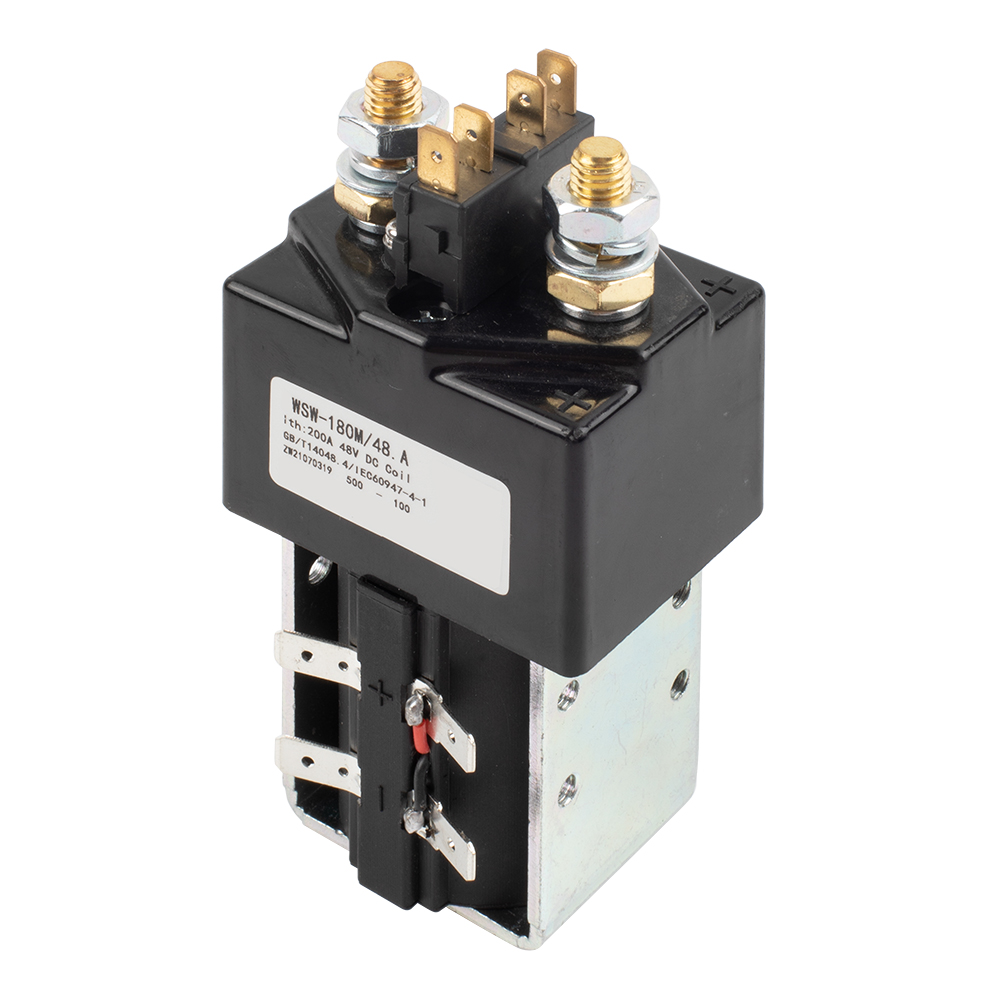

WSW180 DC Contactor

Main features

· 200A  Contact switching capability

· It has a set of normally open contacts

· Coil power consumption is：10～20W  Min～Max

· Application Scope：Wind energy,Photovoltaic,Telecommunication and

  Communication equipment,Engineering machinery,Battery car,Electric forklift,

  Train electrical,Control systems such as ships anduninterruptible power supply

· Technical specifications：GB/T14048.4-2020

· Product compliance： ROHS

· Product certification:  CE

Application

Matters needing attention

1.When installing the contactor, the tightening torque of the main circuit wiring screw nut is 8～10N.m;

  Control circuit wiring screw nut tightening torque 1～1.5N.m.

2.The driving circuit power of the product coil must be greater than or equal to the product coil power,

  Otherwise the cutting capacity of the product will be reduced.

3.The voltage continuously applied to the coil shall not exceed the maximum allowable voltage.

  Otherwise, the abnormal heating of the coil will shorten the life of the insulation layer.
