Name: MDR-100 100W Single Output Industrial DIN Rail Power Supply
Brand: Winston
SKU: 01988
Rating: 4.1 (1044 reviews)

MDR-100 100W Single Output Industrial DIN Rail Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

OUTPUT
Model	MDR-100-12	MDR-100-24	MDR-100-48
DC Voltage	12V	24V	48V
Rated Current	7.5A	4A	2A
Current Range	0-7.5A	0-4A	0-2A
Rated Power	90W	96W	96W
Ripple & Noise	120mVp-p	120mVp-p	150mVp-p
Voltage Adj. Range	12-15V	24-30V	48-56V
Voltage Tolerance	±1%	±1%	±1%
Line regulation	±1%	±1%	±1%
Load regulation	±1%	±1%	±1%
Setup, Rise Time	3000ms,50ms/230VAC 3000ms,50ms/115VAC at full load
Hold Up Time	50ms/230VAC 20ms/115VAC at full load
INPUT
Voltage Range	85~264VAC 47~63 Hz; 120~370VDC
AC Current	1.3A/115VAC 0.8A/230VAC
Efficiency	83%	86%	87%
Inrush Current	Cold start 30A/115VAC 60A/230VAC
Leakage Current	<1mA/240VAC
PROTECTION
Over Load	105%~150% rated output power
	Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage	15.6-18V	31.2-36V	57.6-64.8V
	Protection type: Shut down o/p voltage, re-power on to recover
Over Temp.	Protection type: Shut down o/p voltage, recovers automatically or re-power on recover
Function

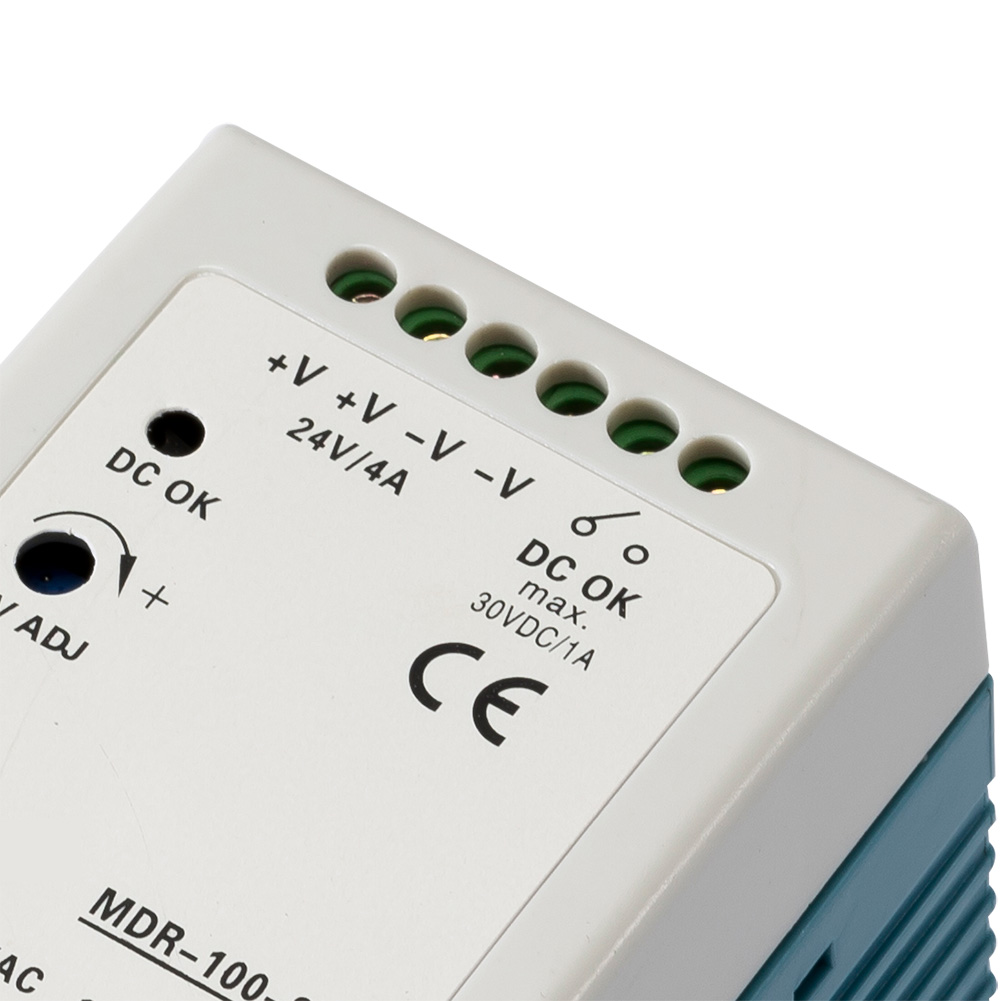

DC OK signal	Relay contact rating(max):30V/1A resistive
ENVIRONMENT
Working Temp., Humidity	-10℃~+60℃; 20%~90% RH non-condensing
Storage Temp., Humidity	-40℃~+85℃; 10%~95%RH
Temp. Coefficient	±0.03%/℃(0~50℃)
Vibration	10~500Hz, 2G 10min./1cycle, 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage	I/P-O/P: 3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-F/G: >100M Ohms / 500VDC/25℃/70% RH
STANDARD
Safety Standard	Design refer to UL508, TUV EN60950-1
EMC Standard	EN61240-3,EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-2, EN61204-3,heavy industry level, criteria A
OTHERS

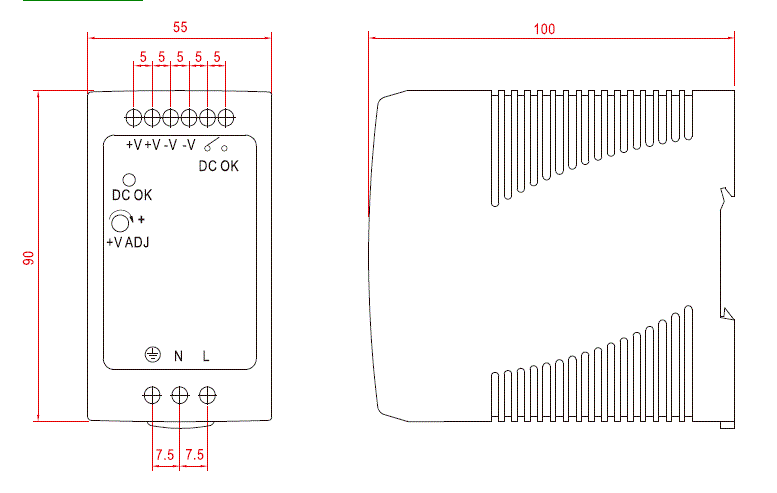

Dimension	5590100mm(WHD)
Weight	0.42Kg
Packing	30pcs/13.6Kg/0.82CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
