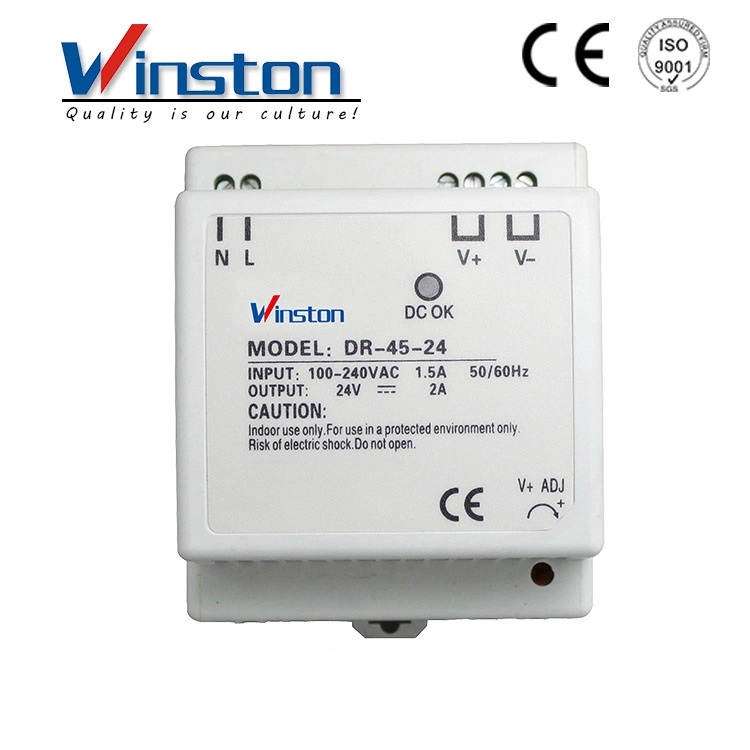

Name: DR-45 45W single output din rail power supply
Brand: Winston
SKU: 02119
Rating: 4.1 (1110 reviews)

DR-45 45W single output din rail power supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

DIN RAIL type,easy to installation

100% full load burn-in test
High efficiency,long life and high reliability

Over voltage /Overload protection
2years warranty

CE & Rohs certifications

Model		DR-45-5	DR-45-12	DR-45-15	DR-45-24
	DC voltage	5V	12V	15V	24V
output	Current range	0~5A	0~3.5A	0~2.8A	0~2A
	Rated power	25W	42W	42W	48W
	Ripple&noise	80mvp-p	120mvp-p	12mvp-p	150mvp-p
	DCvoltage ADJ.range	±10%	±10%	±10%	±10%
	Voltage range	85~264VAC,120~370VDC 47-63Hz
	Efficiency	72%	77%	77%	80%
	Inrush current	Cold start current 28A/115VAC, 56A/230VAC
	Over load	105%~150% cut off the output,automatic recovery
	Over voltage	115%-135% shut down O/P voltage, re-power on to recover
environment	Working temperature	-10°C~+50°C
safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
safety	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
others	Dimension	789356mm (LWH)
others	Weight/packing	0.27kg/45pcs/13kg/433221.5cm
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
	3. Tolerance : includes set up tolerance, line regulation and load regulation.
