Product Description

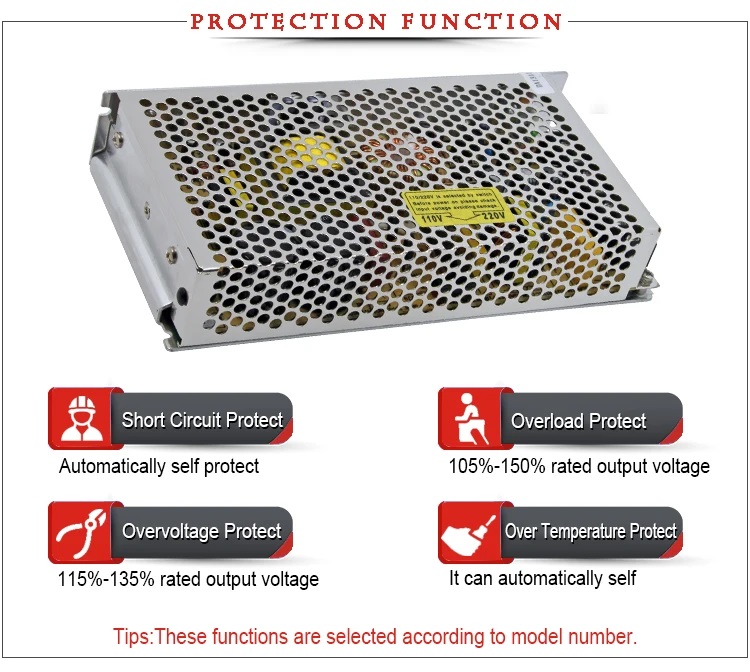

Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
With PFC Function
100% full load burn-in test
2years warranty
| Model | DRP-480-24 | DRP-480-48 | |
| DC voltage | 24V | 48V | |
| output | Current range | 0~20A | 0~10A |
| Rated power | 480W | 480W | |
| Ripple&noise | 120mvp-p | 120mvp-p | |
| DCvoltage ADJ.range | ±10% | ±10% | |
| Voltage range | 180 ~ 264VAC 250 ~ 370VDC , 47-63Hz | ||
| Efficiency | 89% | 89% | |
| Inrush current | Cold start current 0.65A/400VAC 0.6A/500VAC | ||
| Over load | 105%~150% cut off the output,automatic recovery | ||
| Over voltage | 120%-140% shut down O/P voltage, re-power on to recover | ||
| environment | Working temperature | -10°C~+50°C | |
| safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute | |
| Isolated resistance | I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC | ||
| others | Dimension | 227*125.5*100mm (L*W*H) | |
| Weight/packing | 2.5kg/6pcs/16kg/41.5*27.5*25cm | ||
| note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. | ||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | |||
