Product Description
Three-Phase AC 340 ~ 550V wide range input
High efficiency 89% and low dissipation

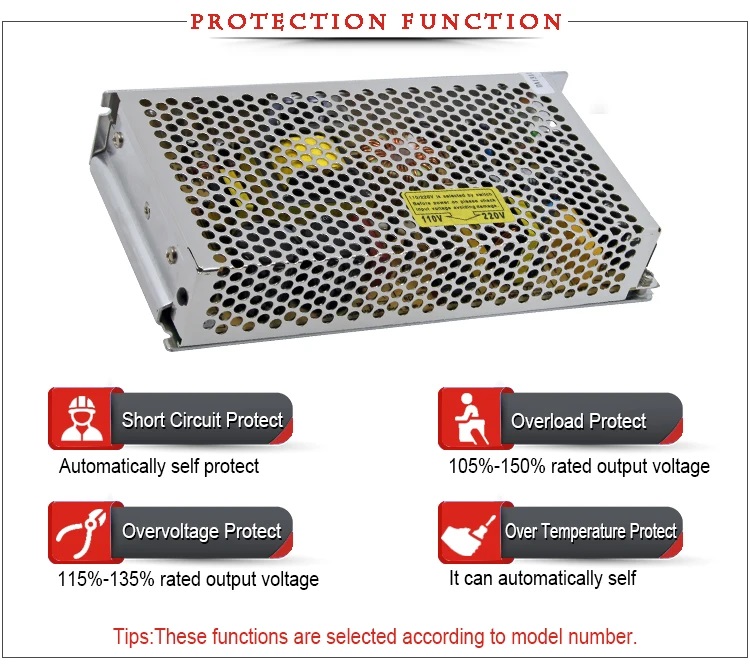

Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
100% full load burn-in test
2years warranty
| Model | DRT-240-24 | DRT-240-48 | |
| DC voltage | 24V | 48V | |
| output | Current range | 0~10A | 0~5A |
| Rated power | 240W | 240W | |
| Ripple&noise | 80mvp-p | 80mvp-p | |
| DCvoltage ADJ.range | ±10% | ±10% | |
| Voltage range | 340~550VAC 480~780VDC 47-63Hz | ||
| Efficiency | 89% | 90% | |
| Inrush current | Cold start current 30A/115VAC, 60A/230VAC | ||
| Over load | 105%~150% cut off the output,automatic recovery | ||
| Over voltage | 120%-140% shut down O/P voltage, re-power on to recover | ||
| environment | Working temperature | -10°C~+50°C | |
| safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute | |
| Isolated resistance | I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC | ||

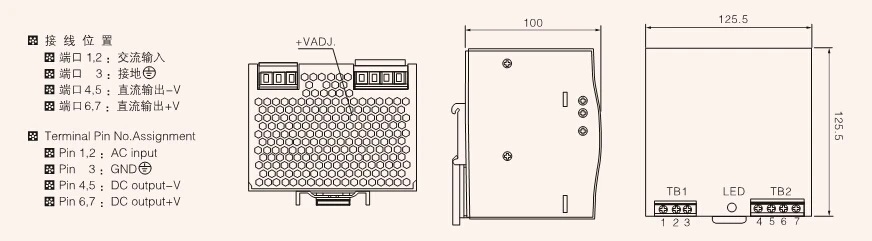

| others | Dimension | 125.5*125.5*100mm (L*W*H) | |
| Weight/packing | 1.3kg/12pcs/17kg/41.5*27.5*25cm | ||
| note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. | ||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | |||
